High quality 12 tons mechanical punching machine for sheet metal hole punch

FOB Reference Price:Get Latest Price
$1,300.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Nominal Force (kN):
120
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Slide Stroke (mm):
50
Applicable Industries:
Manufacturing Plant, Construction works
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Place of Origin:
Anhui, China
Brand Name:
AOXUANZG
Voltage:
220V/380V/Customized
Dimension(L*W*H):
600x530x1500
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Competitive Price
Machine Type:
Punching Machine
Motor Power (kW):
1.5
Model Number:
12T
Weight (T):
0.38
Product name:
Power Press Machine
Model:
J23-12T
Nominal Stroke:
2mm
Slide Stroke:
50mm
Stroke times:
140 times/minute
Depth of throat:
130mm
Motor Power:
1.5kw
Workbench thickness:
35mm
Die height:
130mm
Die-filling diesetheightadjustment:
40mm
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
LCL: We will use plastic film winding machine, and then put the machine into the wooden box to prevent damage in transportation.
FCL: If you buy a large number of machines, we will transport them in containers and fix each machine in the container.
Port
Shanghai Port or Other Ports in China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Product Description

High quality 12 tons mechanical punching machine for sheet metal hole punch


Machine Introduction

Mechanical punching machine, also known as mechanical stamping machine. It uses the compressed air provided by the compressed air pump to enter the cylinder through the solenoid valve, drive the piston to the spindle to make the spindle move downward, and that creates momentum, and then the workpiece can be deformed in the die to achieve the purpose of processing.

Working Principle of Mechanical Punch Machine

Products or parts produced by punch or hydraulic machine tools for mechanical punching machines are called stamping parts. Basic requirements: stamping power, male die, mother die and raw materials of products (usually metal sheet or wire). The working principle of the punching machine is that the machine tool drives the opening and closing of the male die and the female die under the action of punching power, and the raw materials between them are cut, punched and stretched.

J23-12T model mechanical punching machine technical parameters
Nominal force
120 KN
Nominal Stroke
2 mm
Slide Stroke
50 mm
Stroke times
140 times/min
Die height
130 mm
Die height adjustment
40 mm
Worktable Size
Front-back
220 mm
Left-right
370 mm
Maximum inclinability
20°
Shouk size
Φ30 mm
Workbench thickness
35 mm
Workbench plate hole size
Φ90 mm
Motor power
1.5 kw
Distance between two pillars of fuselage
170 mm
Overall dimension
Length
600 mm
Width
530 mm
Height
1500 mm
Basic size
Front-back
500 mm
Left-right
470 mm
Depth of throat
130 mm
Distance from worktable to punch pin
220 mm

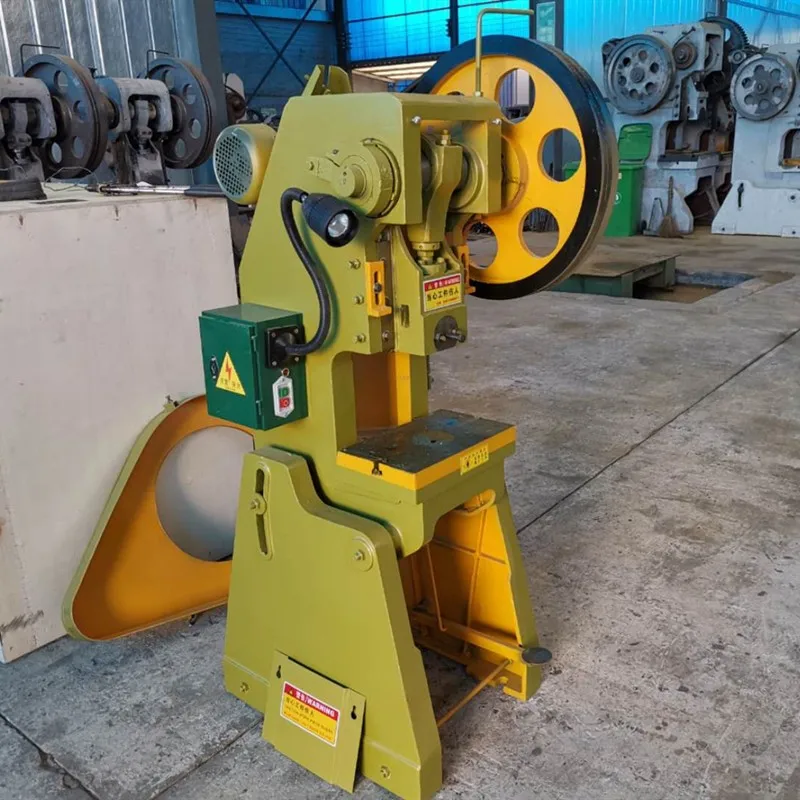

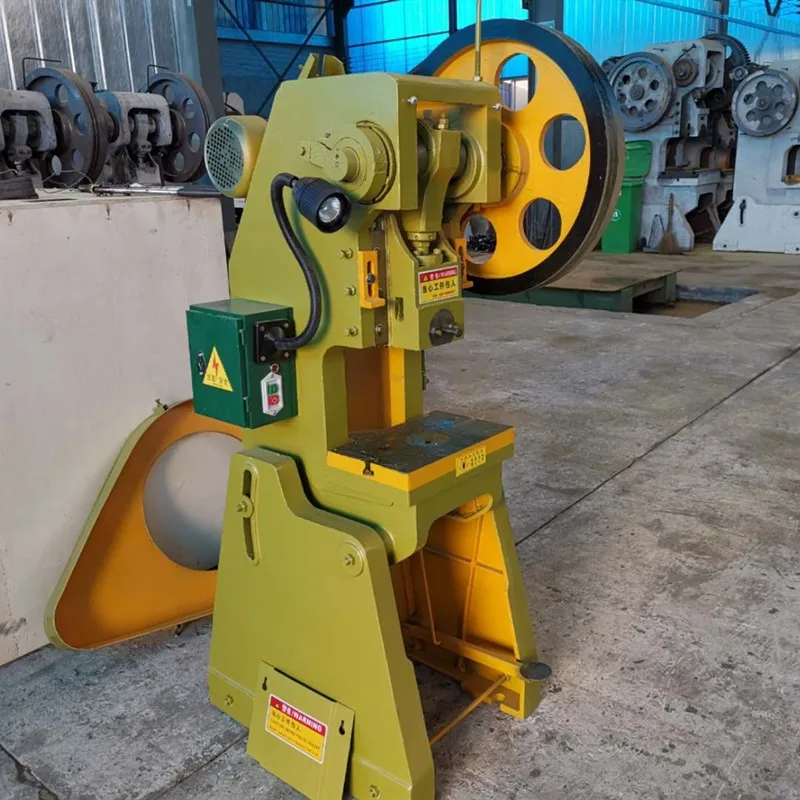

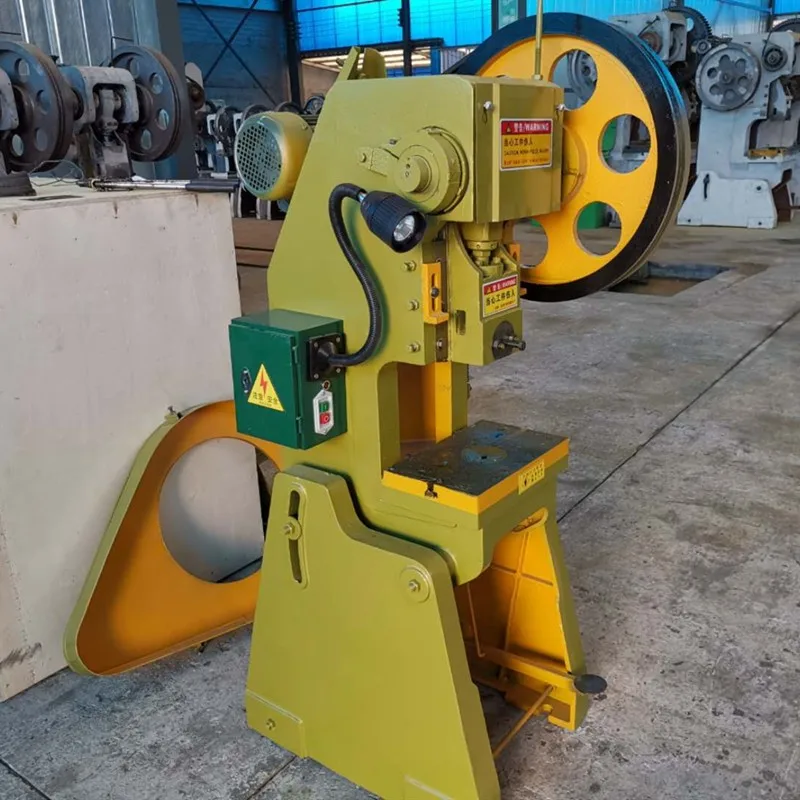

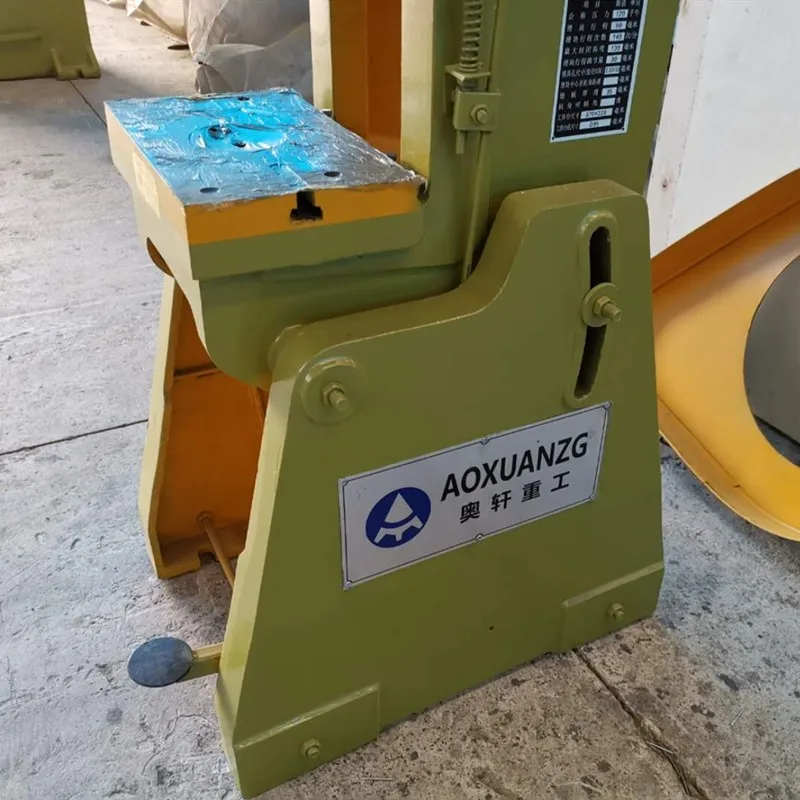

Detailed Images

High quality 12 tons mechanical punching machine for sheet metal hole punch


Certifications

High quality 12 tons mechanical punching machine for sheet metal hole punch

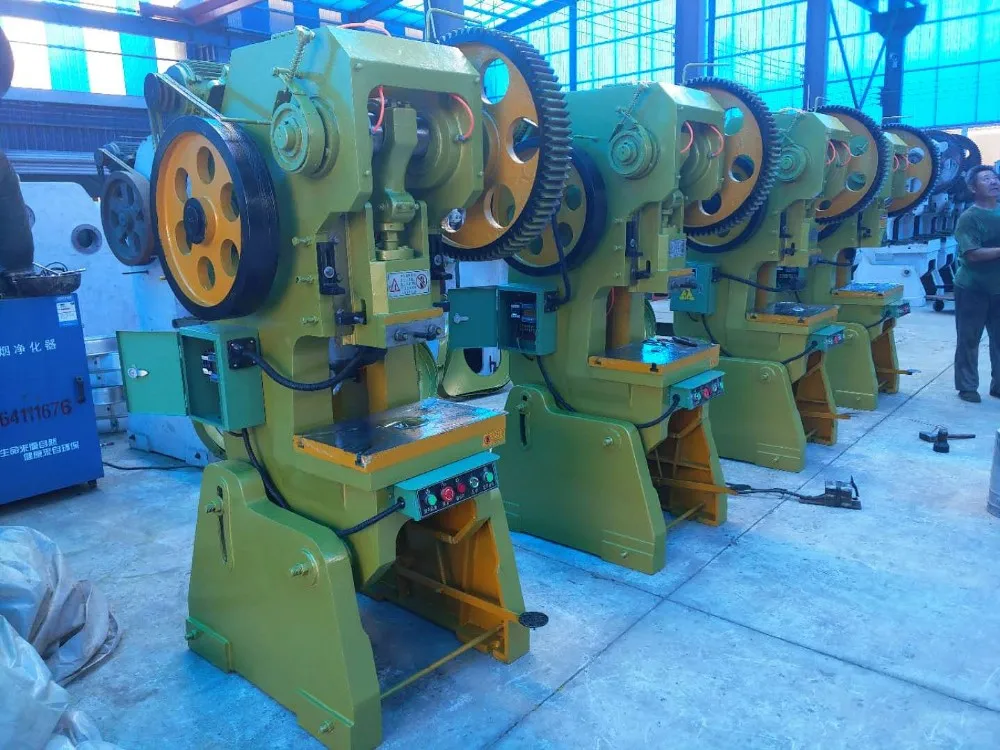

Our Company&Service

High quality 12 tons mechanical punching machine for sheet metal hole punch


Pre-sale service:

1. According to customers'needs, we will communicate with our engineers to recommend the most suitable model for you, and make a detailed quotation for your reference.
2. If you want to visit our factory, we can meet you at the airport or at the station.

After-sale service:

1. We can arrange engineers to go to the customer's country for on-site installation and commissioning.
2. For non-man-made damaged vulnerable parts, we can provide them free of charge.
3. If you encounter any problems during the use of the machine, you can contact us at any time, and we will reply within 24 hours.

Packing & Delivery

High quality 12 tons mechanical punching machine for sheet metal hole punch


LCL: We will use plastic film winding machine, and then put the machine into the wooden box to prevent damage in transportation.
FCL: If you buy a large number of machines, we will transport them in containers and fix each machine in the container.
