China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price

FOB Reference Price:Get Latest Price
$1,500.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Nominal Force (kN):
250
Model Number:
JH21
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
AOXUAN
Dimension(L*W*H):
3800mmx1900mmx1900mm
Warranty:
2 Years
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Competitive Price
Name:
200 ton pneumatic press machine
Product name:
200 ton pneumatic press machine
Force:
25T
Type:
Variable speed
Closed height:
250mm forging press machinery
table size:
720*400mm
Table thickness:
80mm forging press machinery
Electric notor:
Y100L2-4
Power:
3kw forging press machinery
Machine Size:
1500*1000*2200mm
Power(W):
7.5KW-22KW
Weight (KG):
950
Supply Ability
Supply Ability:
50 Set/Sets per Month 200 ton pneumatic press machine
Packaging & Delivery
Packaging Details
standard packing for 200 ton pneumatic press machine
Port
shanghai port for 200 ton pneumatic press machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description

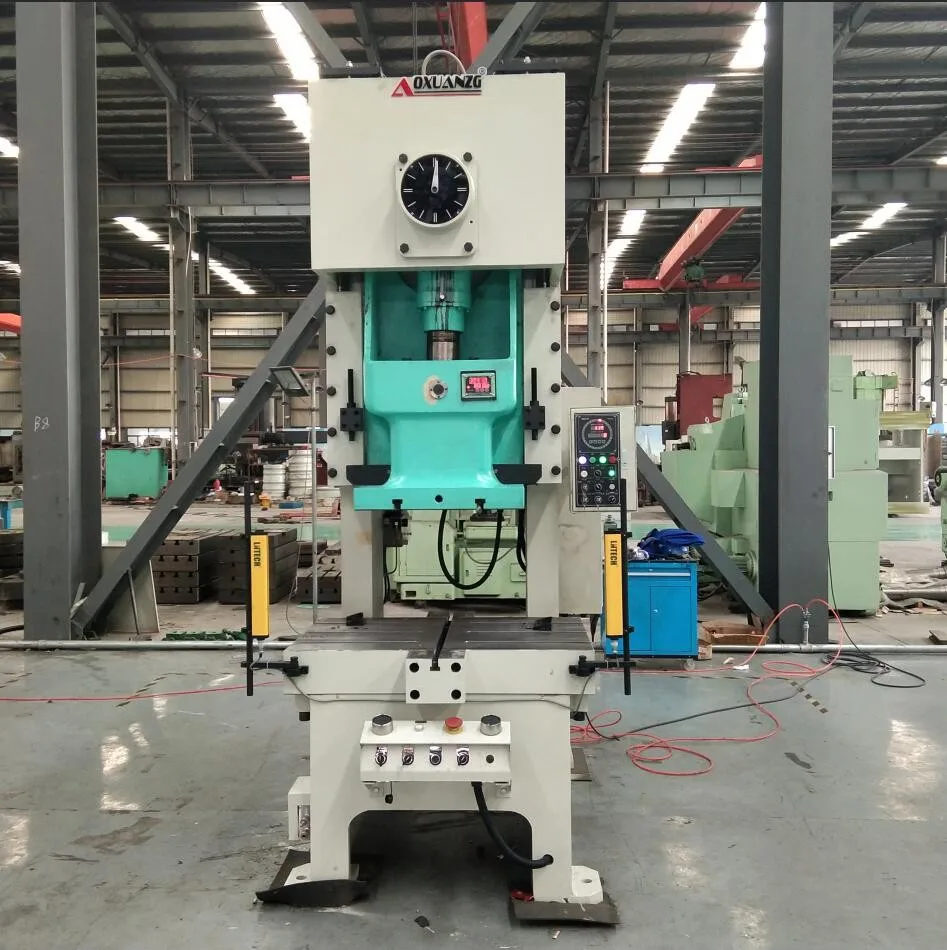

China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price

Standard Execution:


Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and protecting press and dies from damage.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.


•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Elec.forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•CE safety specifications
•Optional: air cushion, light curtain, automotive device.


China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price

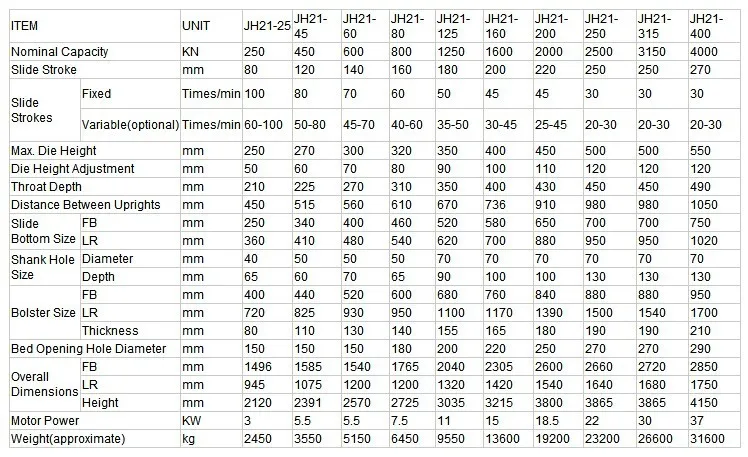

JH21series and SHYD serious  open back press with dry clutch and hydraulic overload protector

1 Welded body with steel plate and high intensity.
2 Main motor is made by Siemens.
3 Adopts combined pneumatic friction clutch and brake.
4 Cluster gear adopts the flooding oil lubrication.
5 Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
6 Equipped with hydraulic overload protecting device.
7 JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.
8 JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
9 JH21-25B, JH21-45 and above type equipped with balance cylinder.
10 Duplex valves imported.
11 Electric compelling grease lubrication system.
12 Balancing cylinder adopts manual lubrication system.
13 One set of blowing device.
14 Controlled by PLC with international brand(Alternative).
15 Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
16 Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.

China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price

Detailed Images

China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price

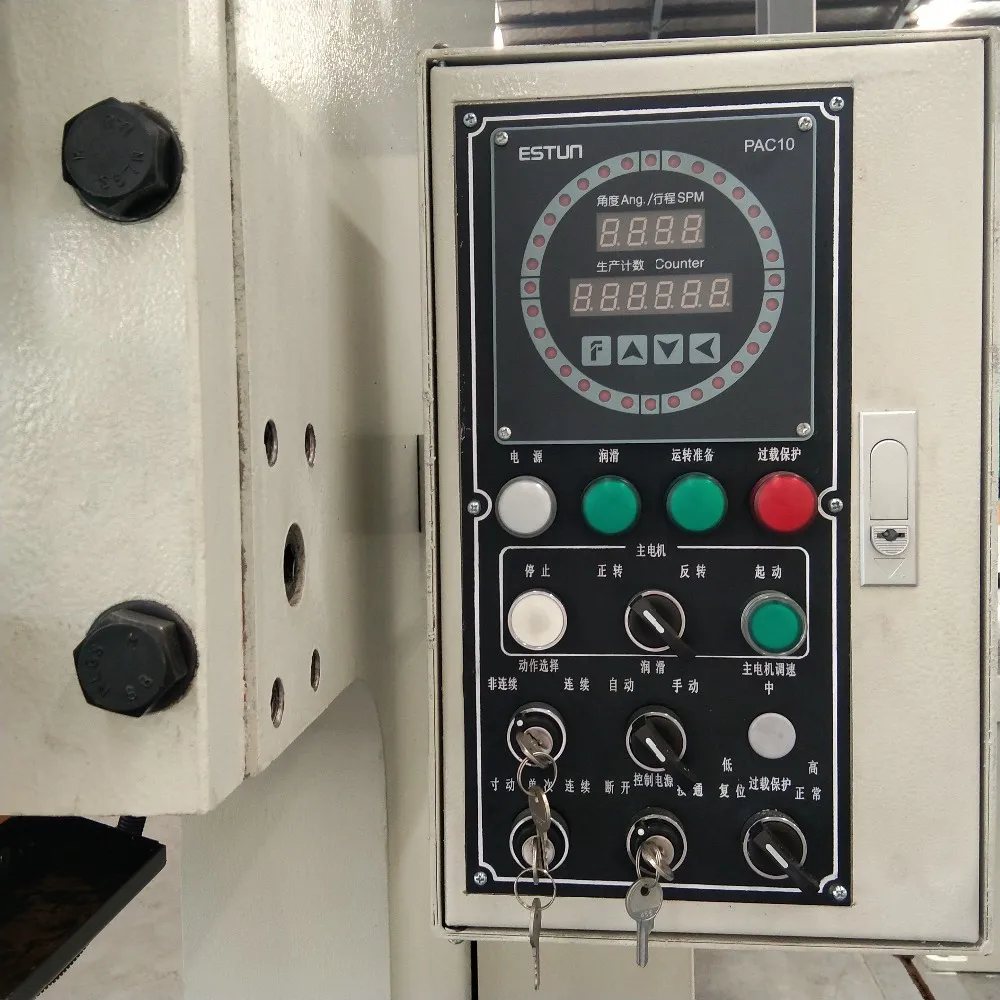

ESTUN PLC CONTROLLER

DIGITAL DIE HEIGHT

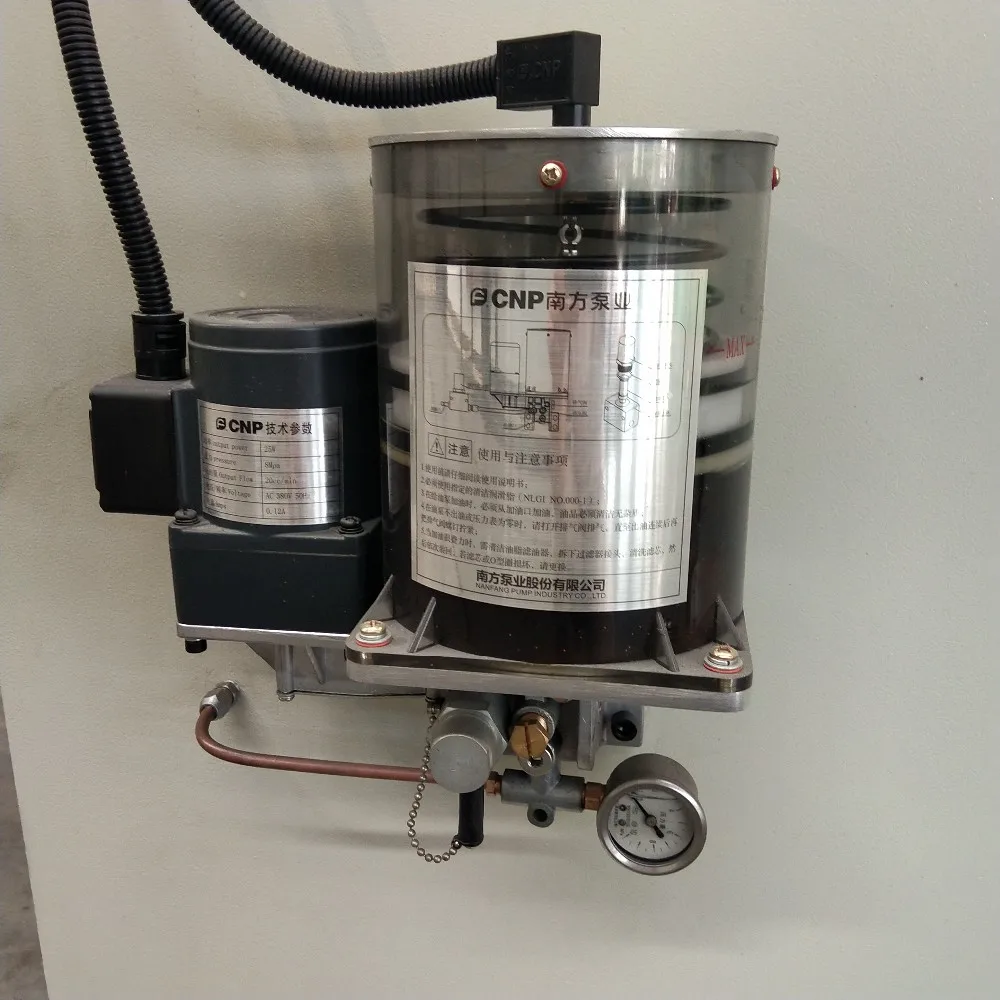

CNP PUMP

High torque low noise wet clutch ,we use the best seals ,bearing friction discs ,the wet cultch features lower noise and longer service life

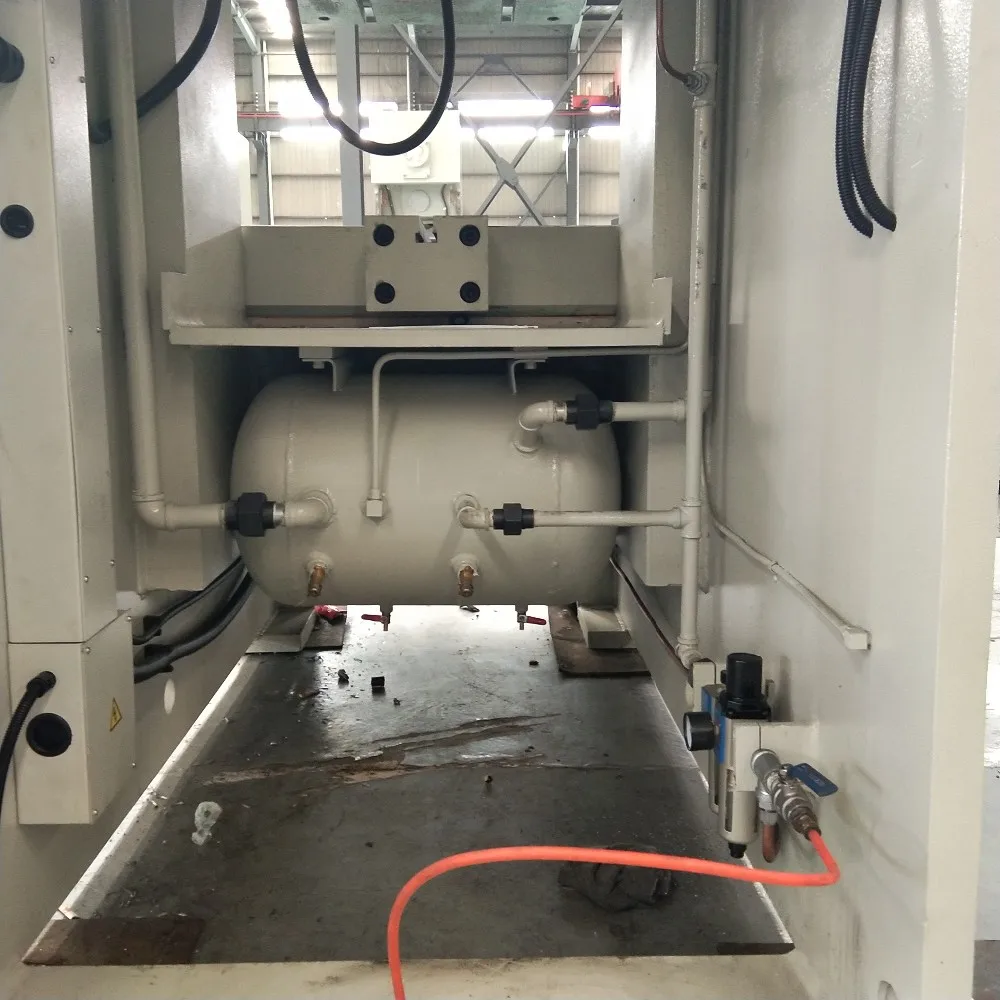

Air tank

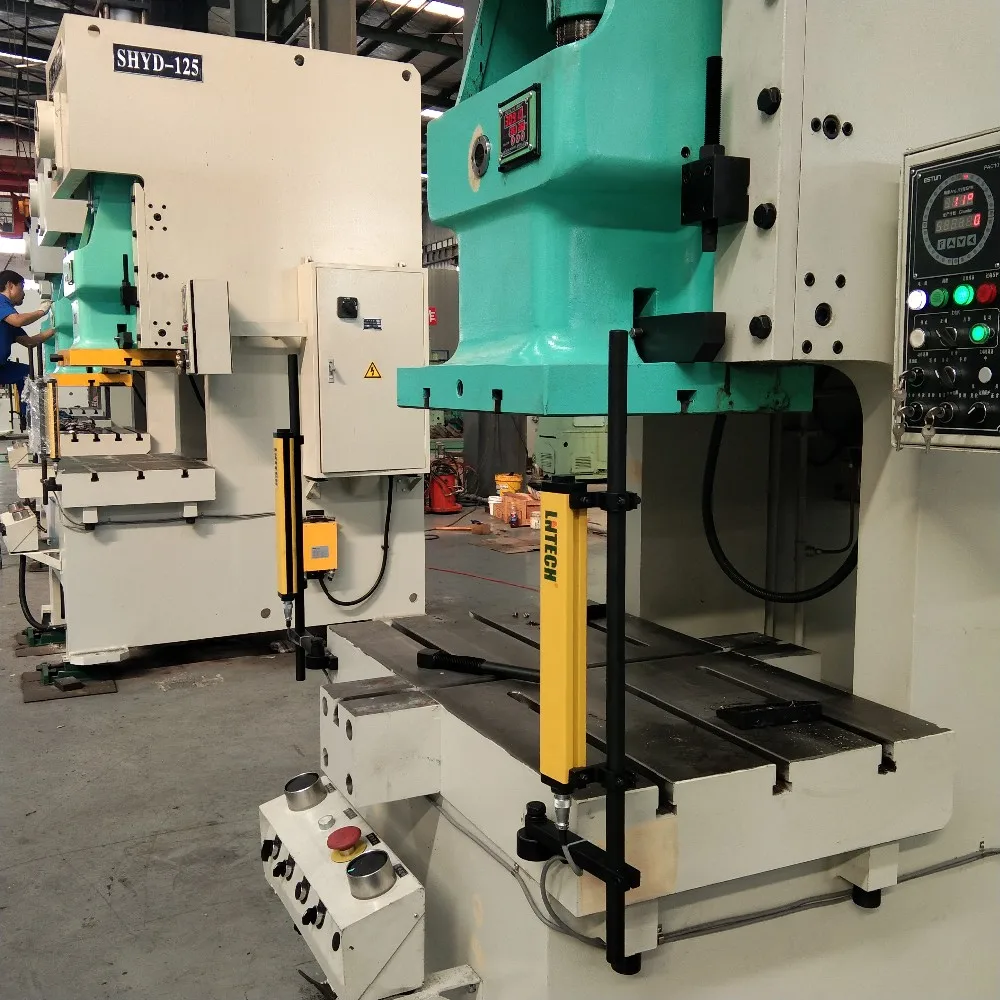

 Light curtain protection

ELECTRIC CABINET

 OPERATION BUTTONS

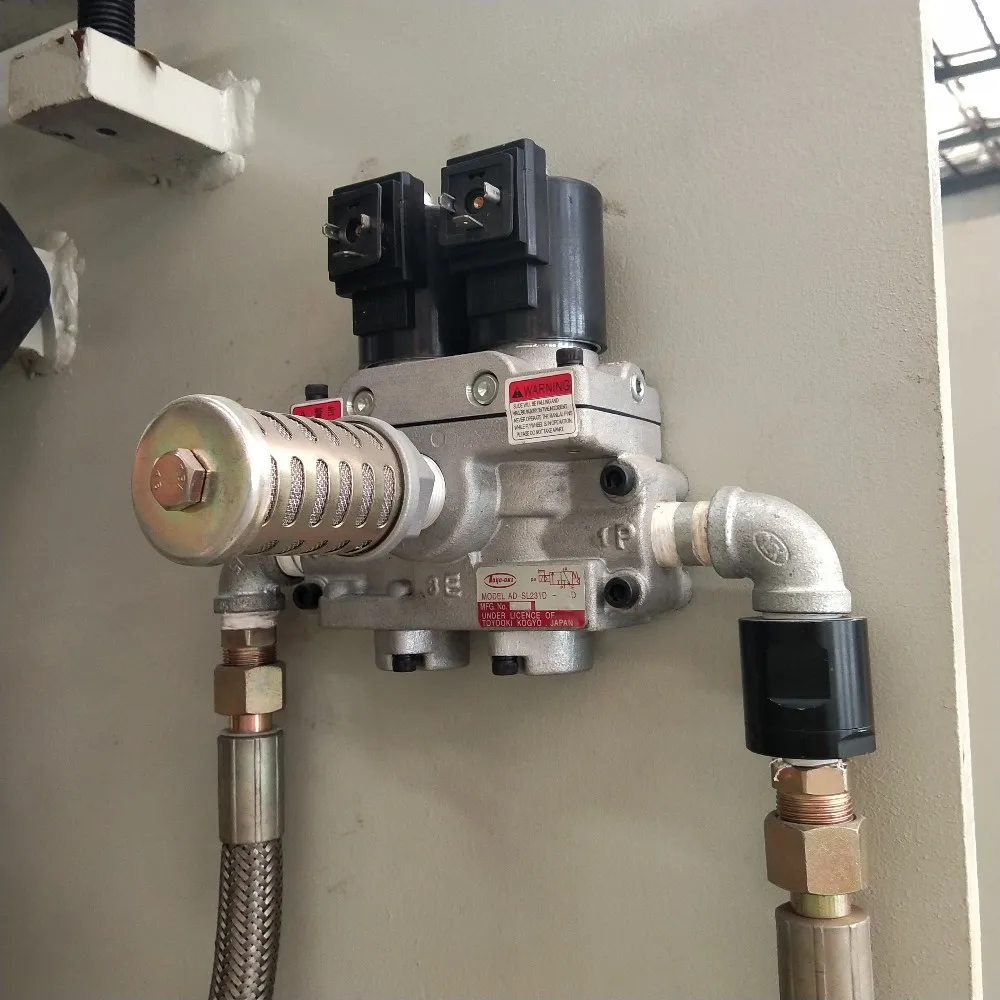

 Double valve / made in Japn

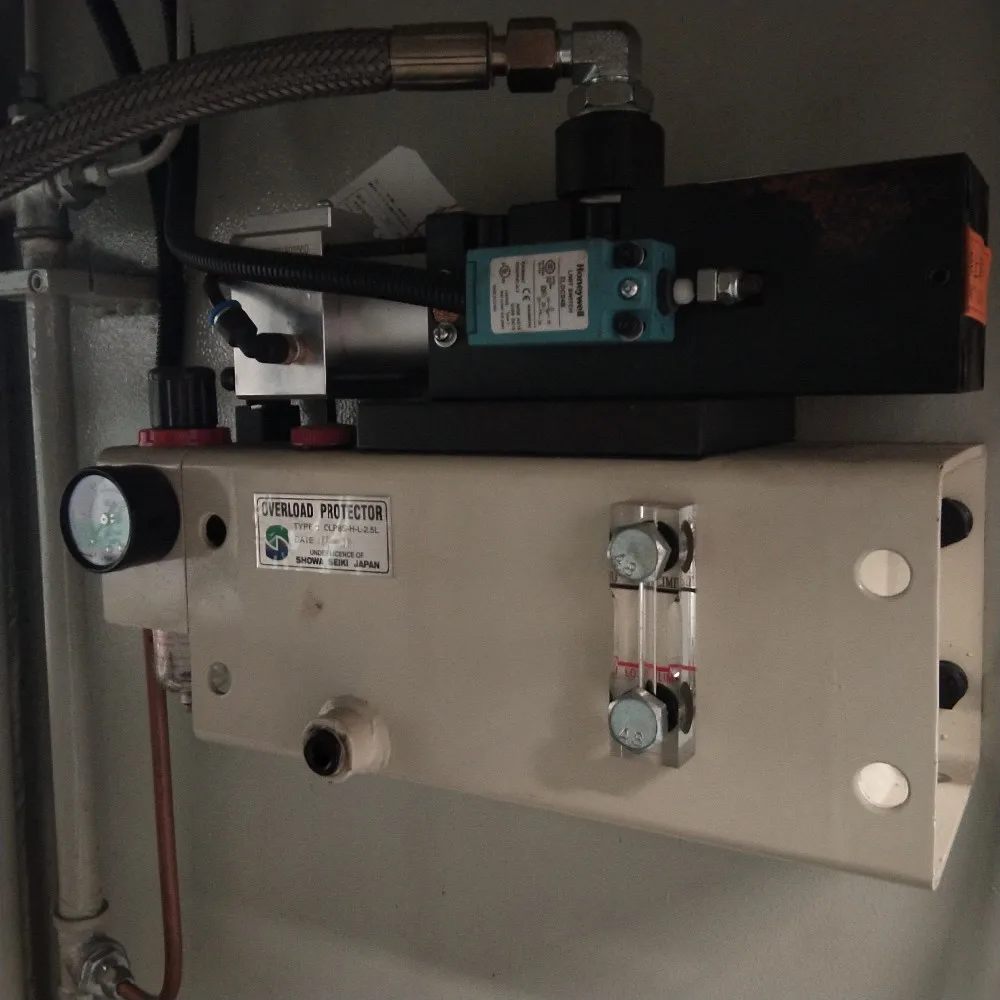

overload protection / made in Japan

Packing & Delivery

China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price


Packing Detail:
☂ Each pneumatic press with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


Delivery Detail :
☀ Shipped in 30 days after payment.

Service&Company

China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price

Our Service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.


Our Company:


Anhui Aoxuan Heavy Industry Machine Co., Ltd.is founded in 2013 in Maanshan city of Anhui province .

Certifications
Customer

China factory fixed type 10T 25T 30T 60T 200T ton pneumatic press machine price

Related products

Gantry hydraulic press                      Punching machine                 C frame hydraulic press             4 column hydraulic press

FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.

And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.


2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.

Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.

For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.


7,Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.


8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
