Easy to operate QC12Y-10*3200 aluminium cutting machine hydraulic plate shearing machine

FOB Reference Price:Get Latest Price
$10,920.00 - $12,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QC12Y-10*3200
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Automatic Level:
Fully Automatic
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Max. Cutting Width (mm):
3200
Max. Cutting Thickness (mm):
10
Shearing Angle:
1°30''
Blade Length (mm):
3200
Condition:
New
Brand Name:
AOXUAN
Power (kW):
11
Weight (KG):
7000
Place of Origin:
Anhui, China
Voltage:
220V/380V customized
Dimension(L*W*H):
3860*2000*1700mm
Certification:
CE ISO
Warranty:
2 Years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
High-accuracy
Type:
Hydraulic Cutting Tools
Name:
Hydraulic Swing Beam Shearing Machine
Application:
Industrial Metal Cutting
Cutting material:
Metal Stainless Steel Carbon Steel
Color:
Customizable
Control system:
ESTUN E21S
Cutting thickness:
10mm
Cutting length:
3200mm
Cutting speed:
10 Time /min
Cutting angle:
1° 30'
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Outside package is standard export wooden case.
2. Inside package is stretch film with three layers winding in surface to avoid crash during the transportation.
3. As the clients requests.
apply to: Easy to operate QC12Y-10*3200 aluminium cutting machine hydraulic plate shearing machine
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

 Easy to operate QC12Y-10*3200 aluminium cutting machine hydraulic plate shearing machine

Main Features:

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Accurl engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
3.Accurl Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
4. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
7. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

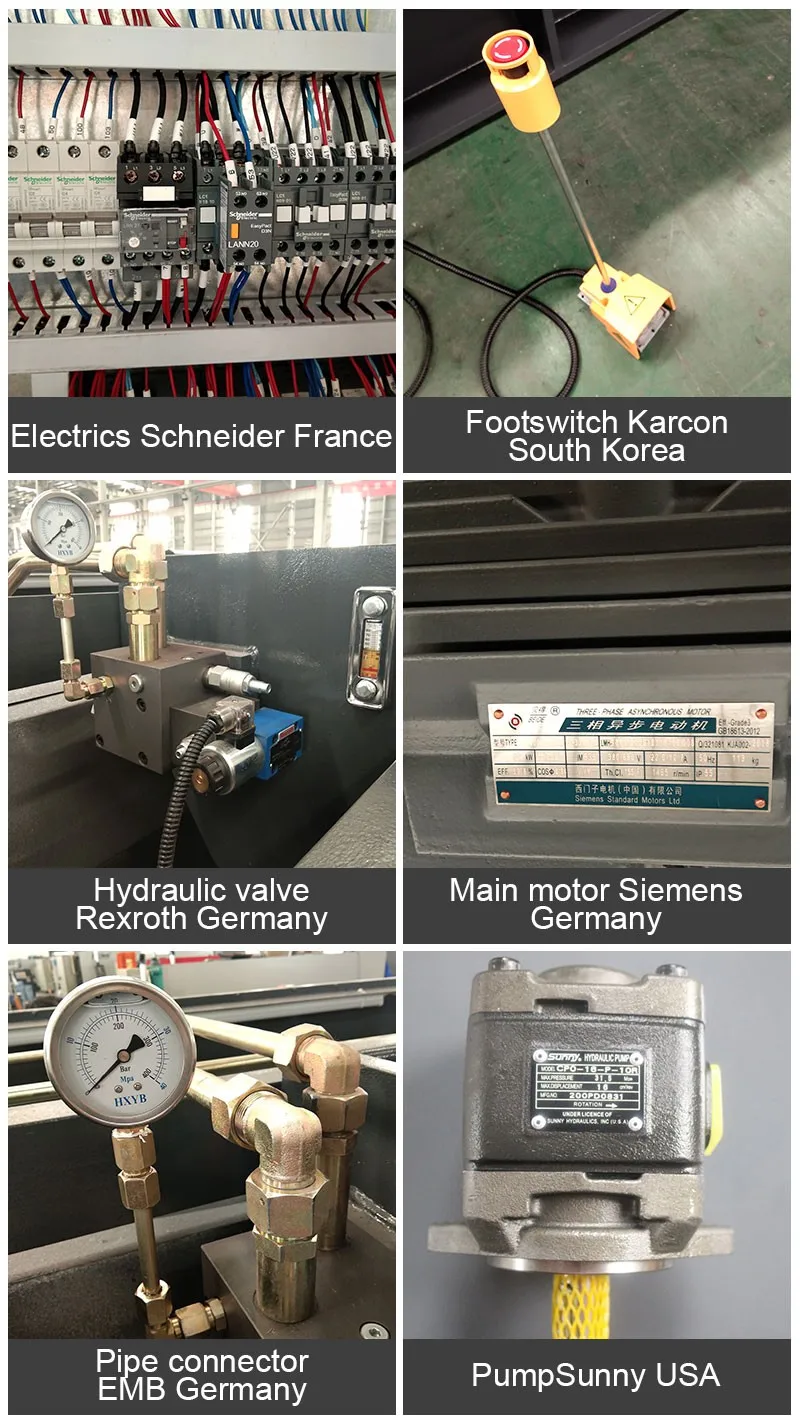

Equipment:

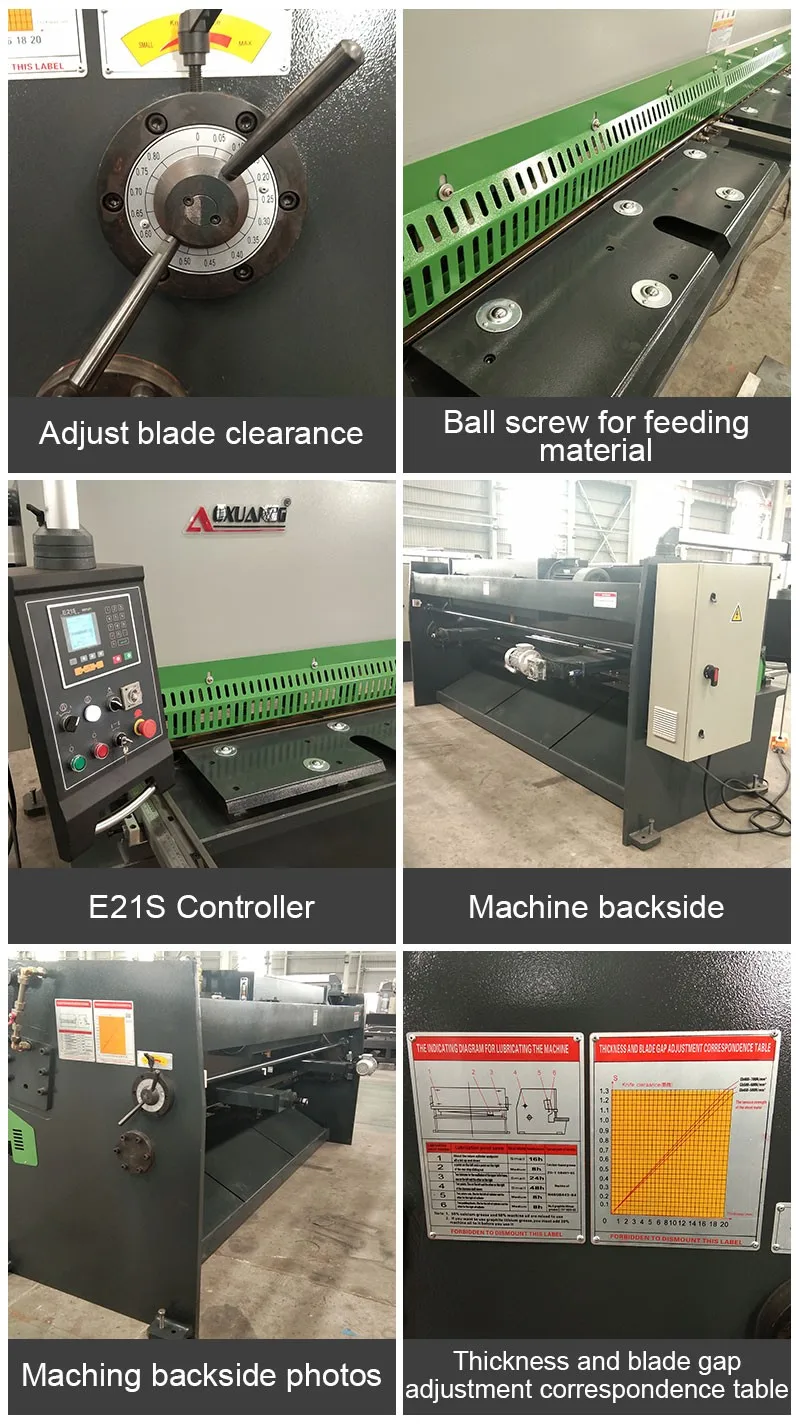

1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7.E21S control
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0.05 mm accuracy.
12. Side guard is standard meeting CE regulations.


Better Cuttings:

1.Backgauge adjustment according to blade gap.
2.Backgauge retraction feature.
3.Sub-program and programming loop.
4.Sequence repeat function.
5.Auto cutting

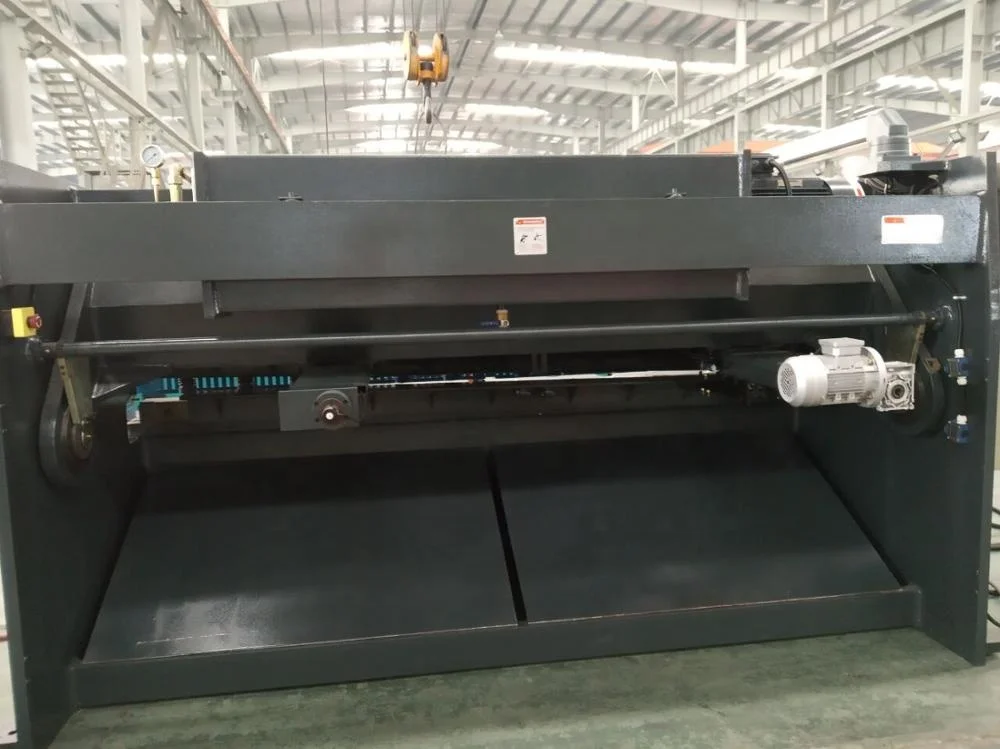

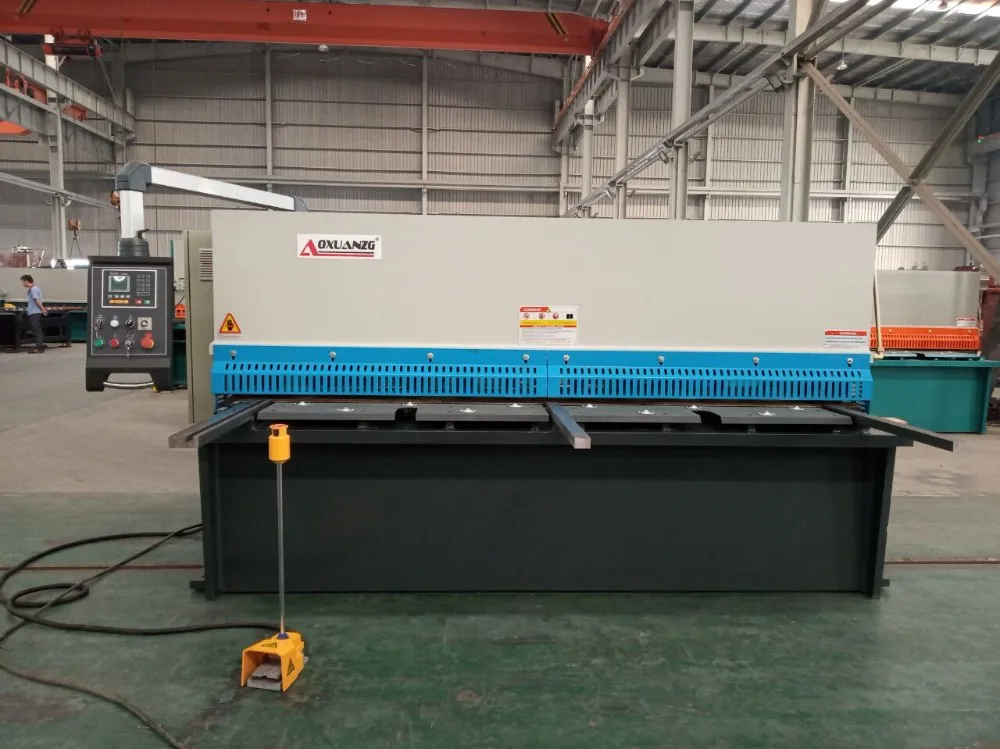

Detailed Images

 Easy to operate QC12Y-10*3200 aluminium cutting machine hydraulic plate shearing machine

Certifications
Service & Company

Service:


Pre-sales.


* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

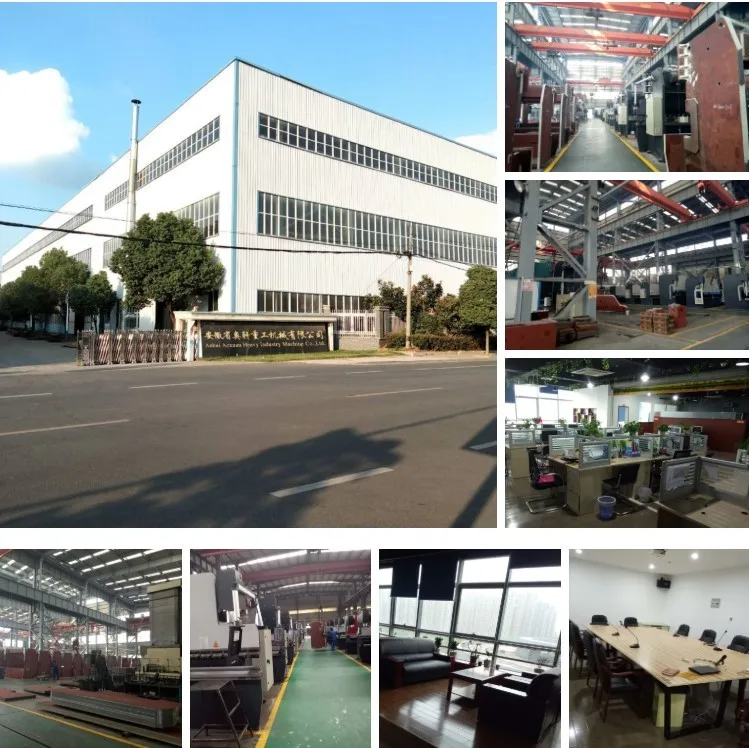

Company :

Anhui Aoxuan Heavy Industry Machine Co., Ltd.is founded in 2013 in Maanshan city of Anhui province .

Workshaop & Customer
Packing & Delivery

 Easy to operate QC12Y-10*3200 aluminium cutting machine hydraulic plate shearing machine


Packing Detail:

☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after payment.

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?

Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3.What are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?

After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?

T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance?

Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?

We accept kinds of customized ,including logo and machine .
