CNC High precision high speed 5016 Lower drive bending machine

  • >=1 Sets
    $17,700.00
Nominal Pressure (kN):
500
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Automatic Level:
Fully Automatic
Throat Depth (mm):
423 mm
Machine Type:
Synchronized
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Length of Working Table (mm):
1600 mm
Width of Working Table (mm):
300 mm
Dimension:
1600*1300*1900mm
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
AOXUAN
Material / Metal Processed:
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum
Automation:
Automatic
Extra Services:
End Forming
Certification:
ce
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Warranty:
2 Years, 2 Years sheet steel bending machine
Nominal Pressure (kN):
500 kN
Slider Stroke (mm):
100 mm
Weight (KG):
1600
Motor Power (kw):
5 kw
Key Selling Points:
Competitive Price
Name:
sheet steel bending machine
Product name:
sheet steel bending machine
Color:
Customized
Type:
CNC Hydraulic
Usage:
Metal Sheet Bending
Application:
Stainless Plate Bending
Model:
XD-3512 sheet steel bending machine
Voltage:
220V/380V/415V/440V/customized
Weight:
1600kg sheet steel bending machine
Supply Ability
Supply Ability:
300 Set/Sets per Month sheet steel bending machine
Packaging & Delivery
Packaging Details
Outside package is standard export wooden case for sheet steel bending machine
Port
Shanghai/Ningbo/Qingdao/Guangzhou/Shenzhen port for sheet steel bending machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

CNC High precision high speed 5016ll Lower drive bending machine

Main Function:

1, The use of hydraulic transmission, with safety, operability, reliability.
2, The use of rigid mechanical synchronization, rolling guide, maintain the upper and lower countertop balance.
3, The upper table is equipped with a skewer type deflection compensation device to improve the machining accuracy.
4. The upper and lower molds adopt integral quenching, the upper molds adopt standard upper molds, the lower molds adopt double groove molds, and the middle plates adopt quick clamping device.
5, Rear stop foot with scale display, easy to adjust, flexible, high precision.
6, Hydraulic device oil simplified, no oil leakage, maintenance, convenient point inspection.
7, Foot switch, can be arbitrary control under the table, or do the middle stop, so that the line bending and other easy and convenient.
8. The control system adopts professional numerical control system NC9 or A310, with touch type wire-controlled steering wheel and electronic handwheel to control fine tuning of upper and lower mould mouth to line and rear material.

CNC High precision high speed 5016ll Lower drive bending machine

Technical specifications
Unit
XD-5016
Nominal pressure
KN
500
Table length
mm
1600
Distance between columns
mm
1220
Depth of throat
mm
405
Table (slider) stroke
mm
100
Maximum opening height
mm
370
Maximum molding height
mm
250-255
Down table travel speed
Close to speed
mm/s
52
Bending speed
8
Returns speed
46
Number of cylinders
Piece
1
Main motor power
KW
4.5
Machine precision
Slider repeat precision
mm
≤±0.01
Slider positioning accuracy
mm
≤±0.02
Repeat positioning accuracy of Back guage
mm
≤±0.02
Working straightness
mm
0.15/m
Bending Angle error
<±15
Machine weight
kg
1600
Overall dimensions (length * width * height)
mm
1755*1440*2070
Fuel tank capacity
L
33

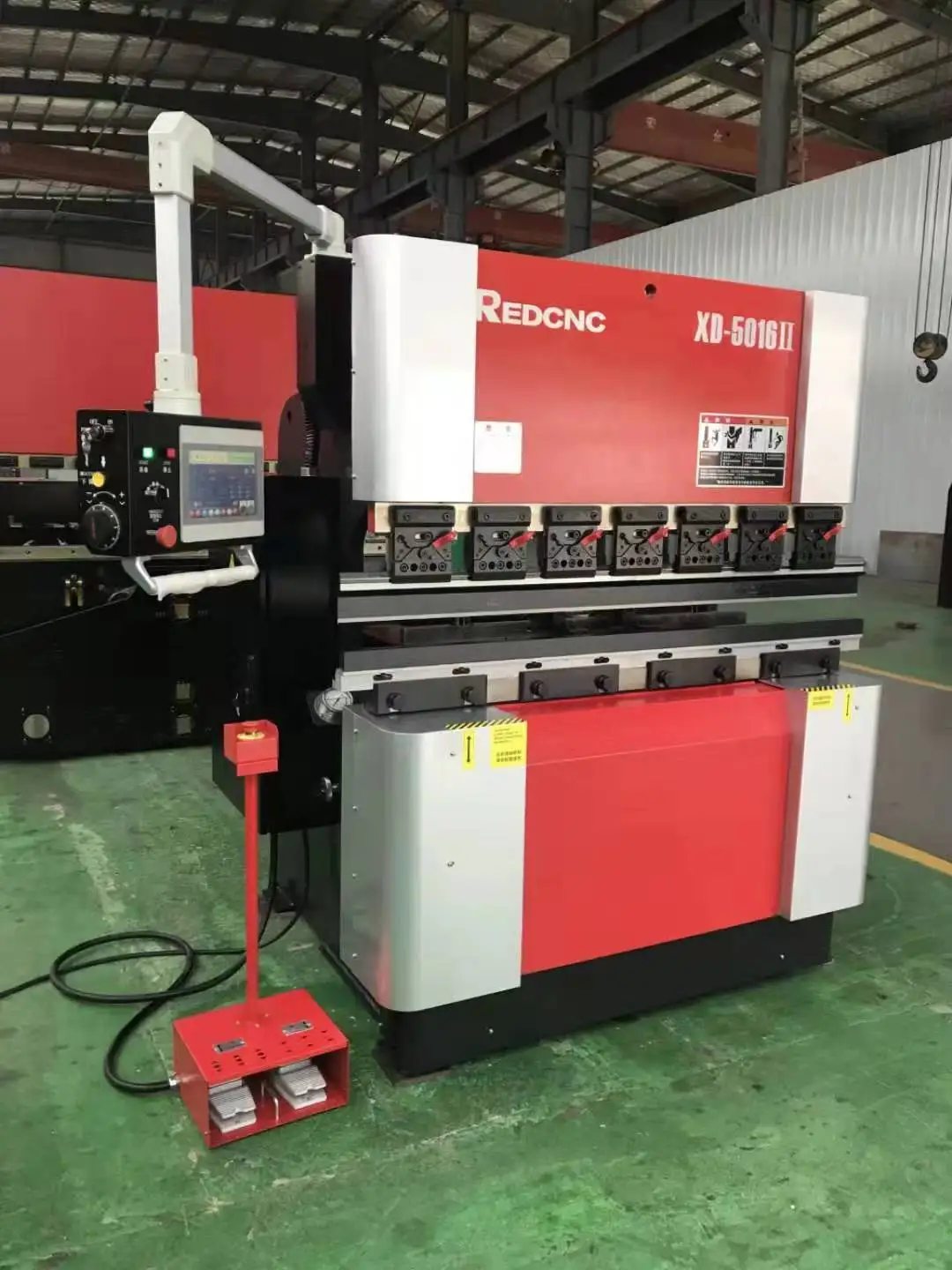

Detailed Images

CNC High precision high speed 5016ll Lower drive bending machine

CNC High precision high speed 5016ll Lower drive bending machine

Major configuration
Manufacturers
Oil pump
German voith or Japanese NACHI
Seal
NOK Japan
Tubing (high pressure hose)
Made in Taiwan
Valve
AMADA

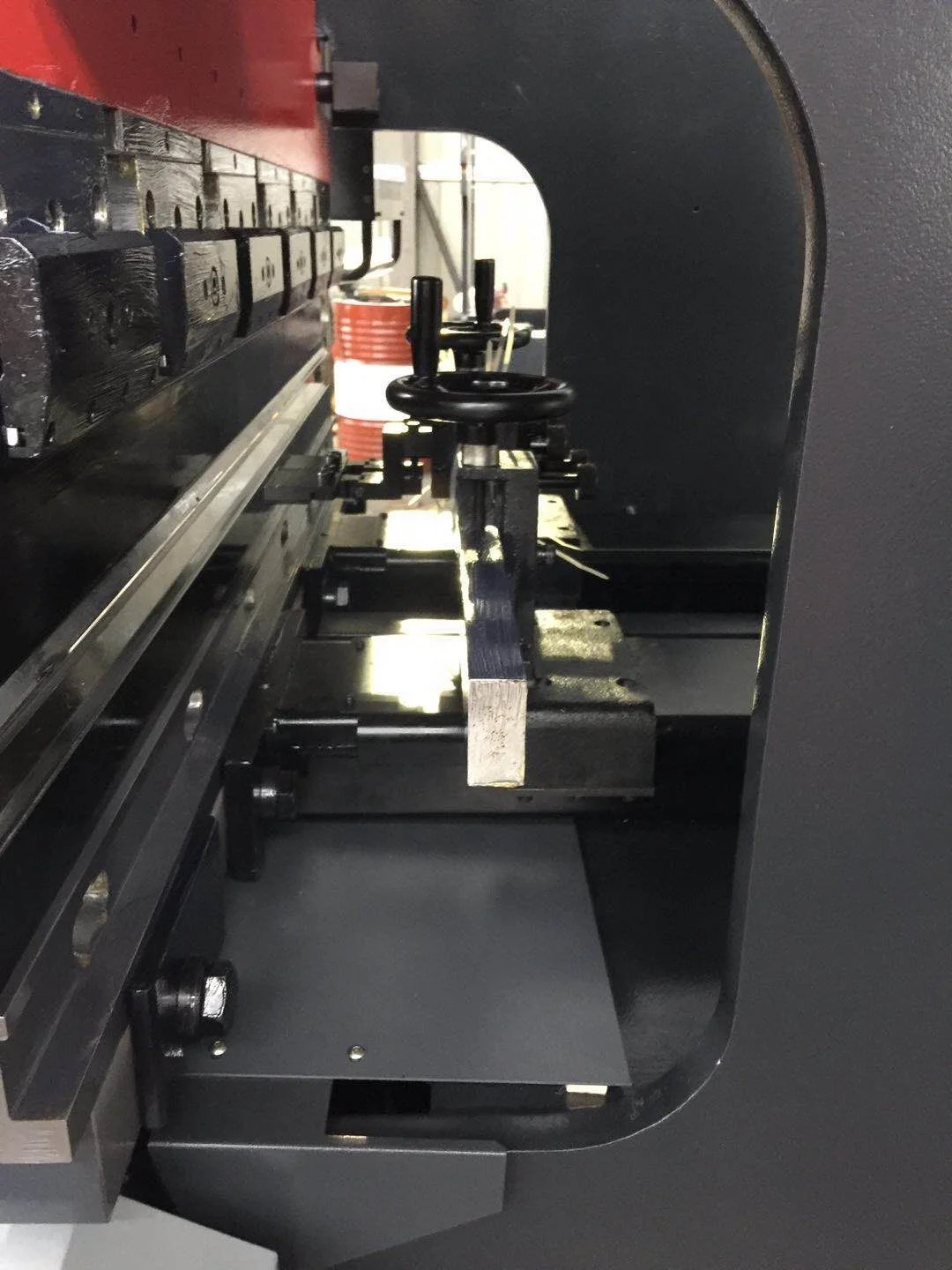

Rear stop assembly
AMADA
Nc system (including electrical box)
NC9 touch screen professional nc system
Servo motors
Mitsubishi, Panasonic
Packing & Delivery

Long Service Life manaufactorer high speed hydraulic mini sheet steel bending machine


1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,

   a,Small size : carefully packed in wooden cases ;

   b,Big size: machine will be securely wired to the container.

Packing Detail:

☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


Delivery Detail :
☀ Shipped in 30 days after payment.

Service&Company

Long Service Life manaufactorer high speed hydraulic mini sheet steel bending machine

Our Service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.


Our Company:


1.OEM Experiences above 7 Years In Sheet metal machinery Industry.
2.Factory Manufacturing Enterprise Provide with you Competitive Price and superior quality.
3. Have stable supply chain which can guarantee our product quality and prompt delivery.
4. Strict QC process to guarantee quality.
5.Trial Order small quantity for retail and wholesale are accepted.
6. Fully equipped with advanced machines and Experience workers.
7.Sincere Service!(Effective pre-sale communication+Good after sale service ).
8.Various equipment to supply your need.

Certifications
Related products

Press brake                                    Shearing machine                           Pip bending machine       TDF flange macking machine

Customer & EXPO

Long Service Life manaufactorer high speed hydraulic mini sheet steel bending machine

FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.

And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.


2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.

Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.

For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.


7,Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.


8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
