W11G 2*1000mm asymmetric sheet metal 3 roller small diameter electric rolling machine

FOB Reference Price:Get Latest Price
$900.00 - $1,300.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
W11G-2*1000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Rolling Speed (m/min):
8
Max. Plate Thickness (mm):
2
Max. Working Length (mm):
1000
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
No. of Roller:
3
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Aoxuan
Material / Metal Processed:
Iron ,stainless steel,carbon steel and so on
Automation:
Manual
Extra Services:
Rolling,Bending
Certification:
CE,ISO
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Warranty:
2 Years
Weight (KG):
220
Motor Power (kw):
1.5
Machine Type:
Roll Forming Machine
Key Selling Points:
Easy to Operate
Raw Material:
Stainless Steel
Color:
Customized
Type:
Electric Rolling Machine
Usage:
Sheet Metal Rolling
Function:
Sheet Plate Rolling
Application:
Metallurgy,Light industry,Chemical industry,Construction industry, etc
Dimension:
Standard size or by custom
Weight:
220kg
Power:
Electric
Supply Ability
Supply Ability:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Outside package is standard export wooden case.
2. Inside package is stretch film with three layers winding in surface to avoid crash during the transportation.
3. As the clients requests.
apply to :W11G 2*1000mm asymmetric sheet metal 3 roller small diameter electric rolling machine
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description
W11G 2*1000mm asymmetric sheet metal 3 roller small diameter electric rolling machine
3-roller electric roll bending machine is adapted to processing metal sheet of 2.0mm thickness,  and the length of the sheet should be within 2000mm.It is extensively applied in ventilation piping, petroleum piping, heat preservation,and dust palliative.

Main Features:


(1) Side of the workpiece before use in the pre-bending machine for bending to the effective point of view (when the original board processing)



(2) To make the next roll rotation, bring materials on board with the rotating roll, the sheet metal rolled into the arc.



(3, 4) The motor for positive and negative movement, and gradually roll on the pressure, repeatedly, thereby enabling the workpiece gradually forming to requirements.



(5) Taking out the workpiece from the rolling roller.

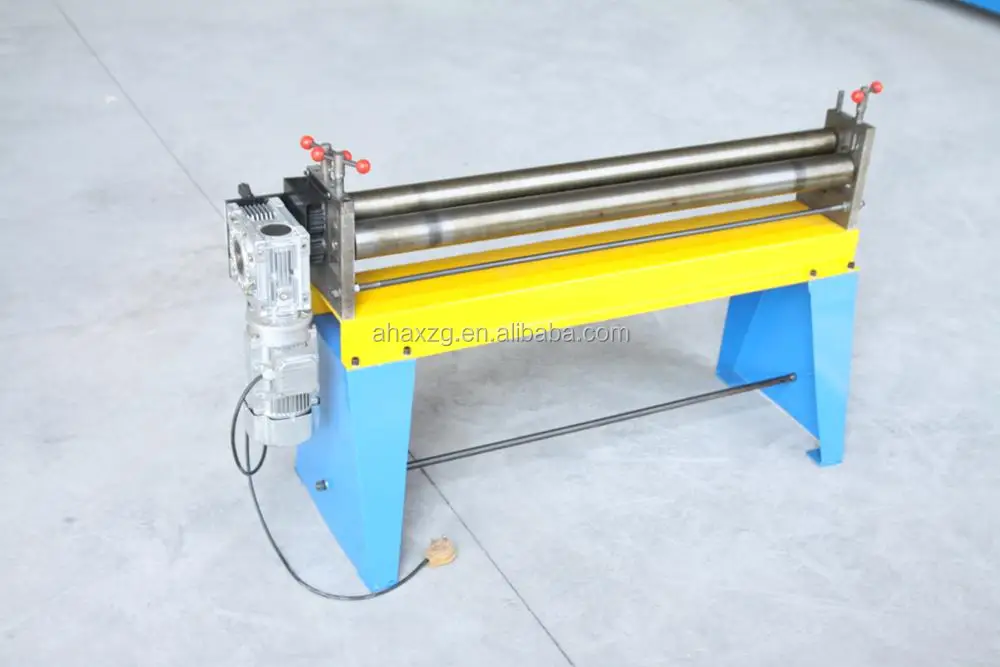

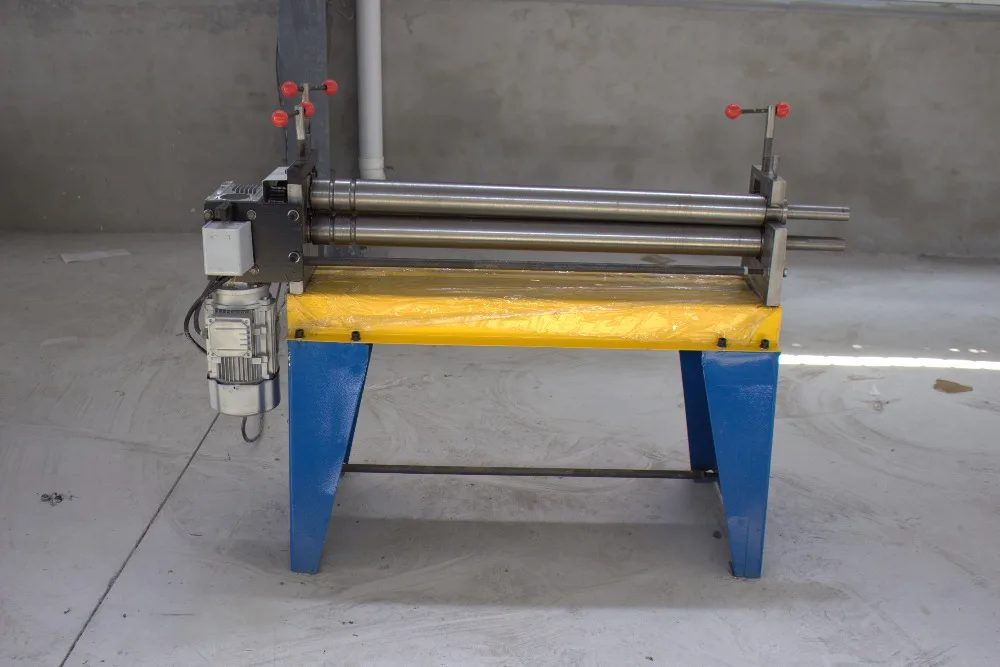

Detailed Images
W11G 2*1000mm asymmetric sheet metal 3 roller small diameter electric rolling machine
Product Paramenters
Model
Max.thickness of plate (mm)
Max.width of plate (mm)
Dia.of upper roller (mm)
Dia.of side roller (mm)
Motor power
(kw)
Weight (kg)
Overall dimensions
(mm)
W11-2*1000
2
1000
72
80
1.5
220
1540*550*1170
W11-1.5*1300
1.5
1300
72
80
1.5
225
1800*550*1170
W11-1.2*1530
1.2
1530
72
80
1.5
275
2050*550*1170
W11G-2*1000
2
1000
72
80
1.5
220
1540*550*1170
W11G-1.5*1300
1.5
1300
72
80
1.5
225
1800*550*1170
W11G-1.2*1530
1.2
1530
72
80
1.5
275
2050*550*1170
Certifications
Our Service
Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

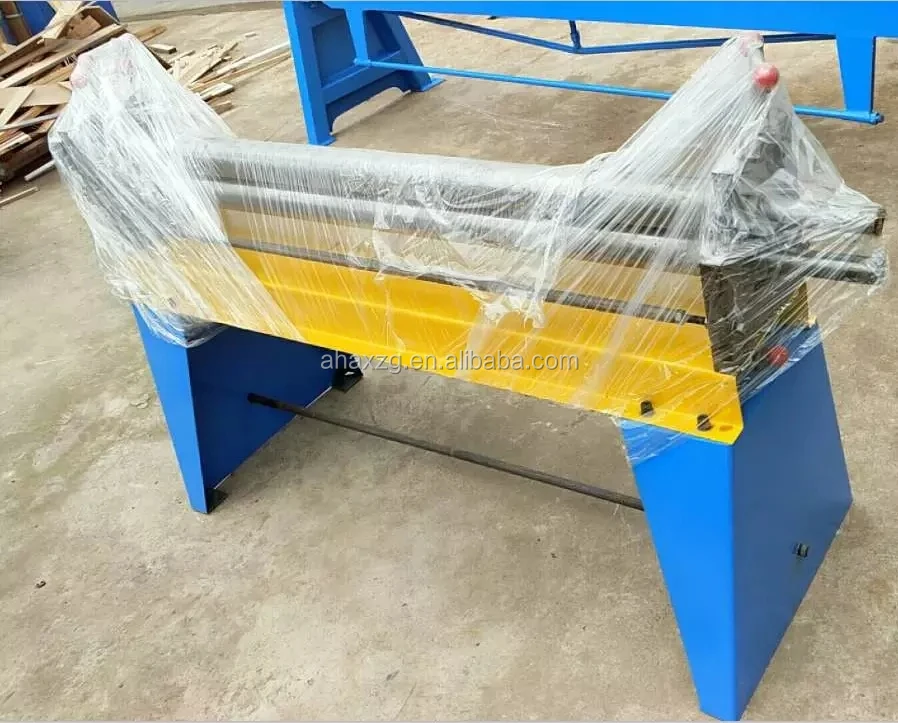

Packing&Shipping
Packing Detail:

☂ Each Electric Rolling Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after payment.
Company Introduction
W11G 2*1000mm asymmetric sheet metal 3 roller small diameter electric rolling machine
FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?

Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3.What are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?

After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?

T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance?

Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?

We accept kinds of customized ,
including logo and machine .
