Good price boiler head, liquefied gas tank gantry hydraulic press / h frame hydraulic press machine

FOB Reference Price:Get Latest Price
$2,500.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Nominal Force (kN):
200
Model Number:
YL-22
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Farms, Food & Beverage Shops, Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Advertising Company, Restaurant, Hotels, Printing Shops, Retail, Home Use, Energy & Mining, Construction works
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Aoxuan
Voltage:
380V 50Hz 3Phrase
Dimension(L*W*H):
2400*1500*900
Certification:
CE, CE
Warranty:
2 Years, 2 Years h frame hydraulic press machine
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Motor Power (kw):
7.8
Key Selling Points:
Competitive Price
Name:
h frame hydraulic press machine
Product name:
h frame hydraulic press machine
Material:
Stainess Steel
work table size:
360*400mm
Usage:

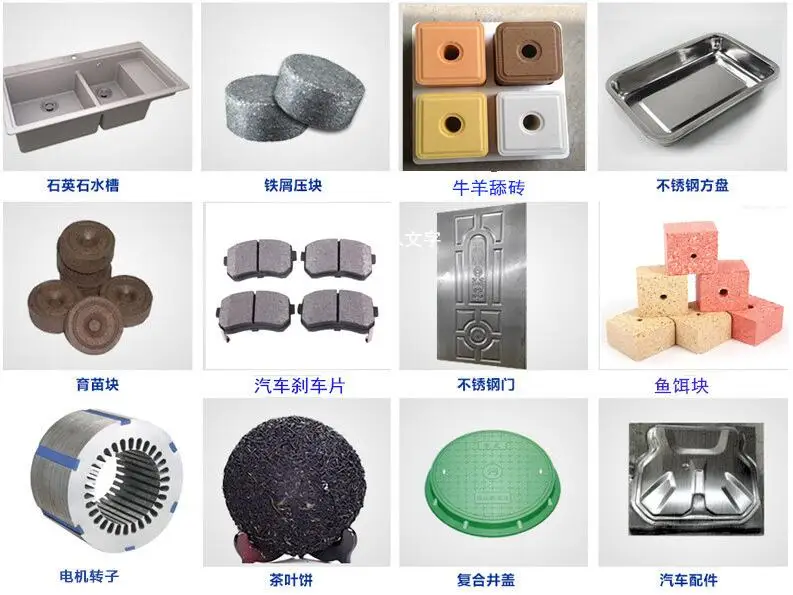

powder plastics products forming and heat/cool metal extrusion and etc
Type:
Hydraulic Bending Tools
Slide Stroke:
200mm
Nominal Force:
200 KN h frame hydraulic press machine
Weight (KG):
500
Supply Ability
Supply Ability:
500 Set/Sets per Month h frame hydraulic press machine
Packaging & Delivery
Packaging Details
Standard Packing for h frame hydraulic press machine
Port
Shanghai Port for h frame hydraulic press machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Good price boiler head, liquefied gas tank gantry hydraulic press / h frame hydraulic press machine

H frame gantry hydraulic press machine features:
1. Hydraulic transmission, low noise, complete functions, high production efficiency, optimized structure design, stable and reliable;
2. Solid open structure welded as a whole can maintain enough rigidity of the fuselage and provide the most convenient operation space;
3. The press stroke of this series of presses is generally controlled by timer, pressure switch, position sensor, or the customer's own mold;
4. Suitable for blanking, bending, flanging, sheet stretching, fine blanking and cold extrusion of metal parts;
5. Adjustable pressing force, no overload, realize the pressure maintaining and delay requirements of each step in the pressing process;
6. The rise height of the pressure mounting spindle can be adjusted within the travel range of the timer or position sensor;
7. Low oil pump displacement, low motor power, power saving and energy saving;
8. Centralized button with manual, semi-automatic and automatic operation;
9 hydraulic statistics within the built-in frame, neat appearance, lightweight, stable.

Optional accessories or functions:
1. Move the workbench
2. Blanking buffer device
3. Pressure regulating device for pressing edge slider and hydraulic pad (stretching asymmetric parts)
4. Photoelectric protection device
5, touch with floating guide rail and rolling bracket
6. Mould quick clamping mechanism
7. Stroke, pressure and degree display and control
8. Touch industrial display screen
9. Heating and cooling device and alarm system of hydraulic system

Detailed Image

Good price boiler head, liquefied gas tank gantry hydraulic press / h frame hydraulic press machine

Technical parameter
Units
20T
40T
63T
Nominal Force
kn
200
400
600
System Pressure
kn
18
20
30
Slide Stroke
mm
200
Opening Height
mm
750
Stroke of Ejection Cylinder
mm
300
300
400
Work table size
mm
360*400
400*460
Machine weight
kg
about 240
about 330
about 380

Application:

H frame gantry hydraulic press machine suitable for all drawing, bending, molding and other processes.


1. Covering parts and other parts of large automobiles and agricultural vehicles.
2, boiler head, liquefied gas tank, stainless steel hand washing tank, bath, etc.
3. Ship, aviation, aerospace and other fields.

Good price boiler head, liquefied gas tank gantry hydraulic press / h frame hydraulic press machine

Service&Company

Good price boiler head, liquefied gas tank gantry hydraulic press / h frame hydraulic press machine

Our Service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.


Our Company:


Anhui Aoxuan Heavy Industry Machine Co., Ltd.is founded in 2013 in Maanshan city of Anhui province .

Certificate
Packing & Delivery

Good price boiler head, liquefied gas tank gantry hydraulic press / h frame hydraulic press machine


Packing Detail:
☂ Each Press with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


Delivery Detail :
☀ Shipped in 30 days after payment.

Customer

Good price boiler head, liquefied gas tank gantry hydraulic press / h frame hydraulic press machine
