Anhui Maanshan cnc stainless steel sheet plate metal shearing machine hydraulic cutting machine price

FOB Reference Price:Get Latest Price
$5,008.00 - $10,008.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QC11K
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Graphic customization (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Automatic Level:
Fully Automatic
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Max. Cutting Width (mm):
4000
Max. Cutting Thickness (mm):
8
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
AOXUAN
Voltage:
220V/380V, 220V/380V/415V/440V/customized
Dimension(L*W*H):
4640*1700*1700mm
Certification:
CE
Warranty:
2 years, 2 Years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Power (kW):
7.5
Weight (KG):
8000
Key Selling Points:
High-accuracy
Name:
hydraulic cutting machine price
Product name:
hydraulic cutting machine
Rated Power:
7.5KW
Certificates:
CE hydraulic cutting machine
Color:
Customized
Type:
CNC Hydraulic
Weight:
8000kg
Cutting length:
4000mm
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export wooden case for hydraulic cutting machine price
Port
Shanghai/Ningbo/Qingdao/Guangzhou/Shenzhen port for hydraulic cutting machine price
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description
Anhui Maanshan cnc stainless steel sheet plate metal shearing machine hydraulic cutting machine price

The whole structure:

1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating to eliminate stress, high strength and good rigidity.
2. Mechanical torque system makes sure the synchronization of cylinders.

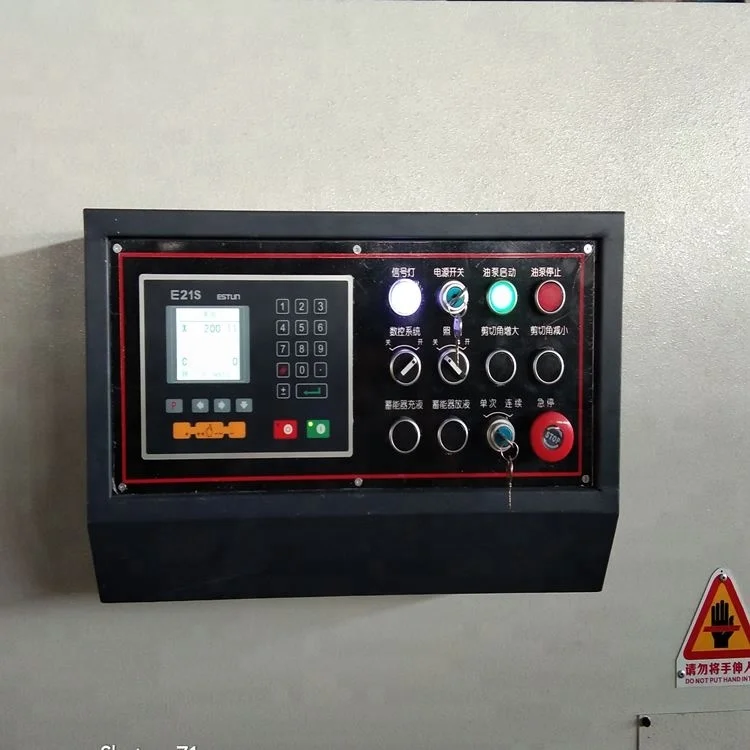

3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.
4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

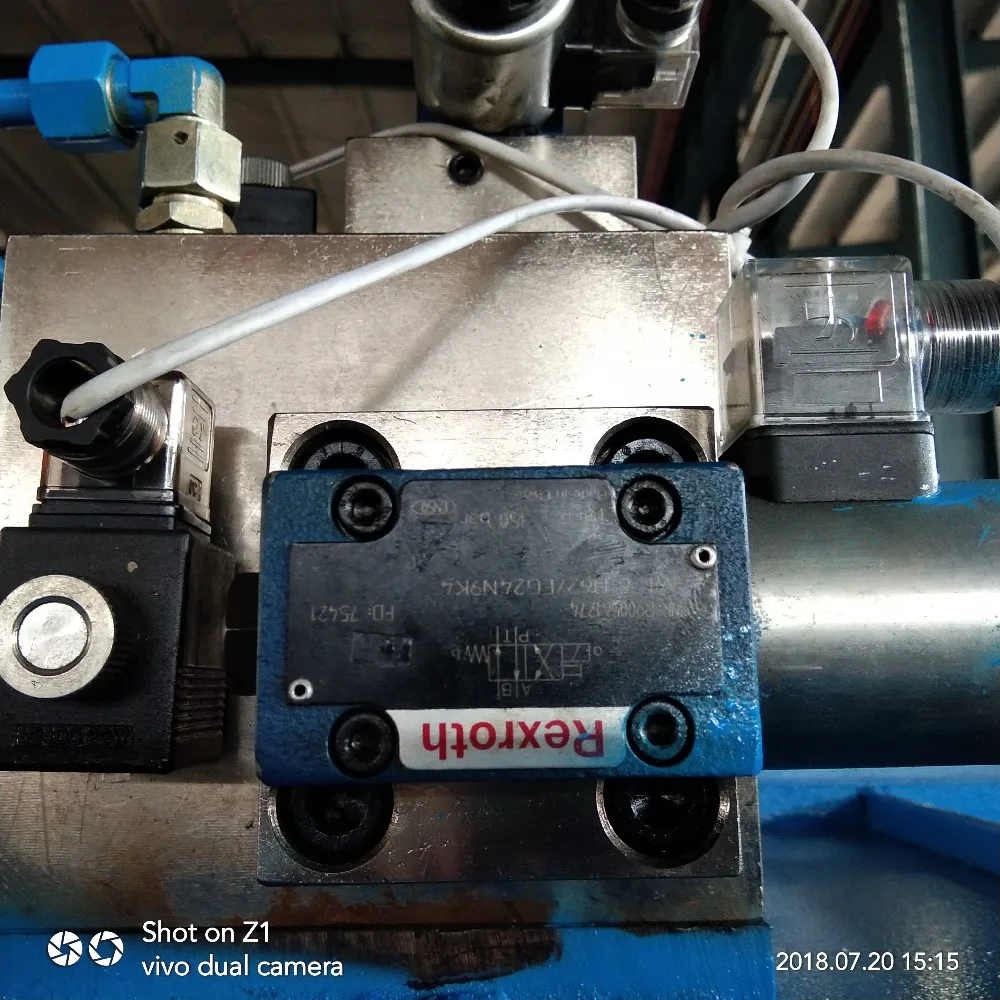

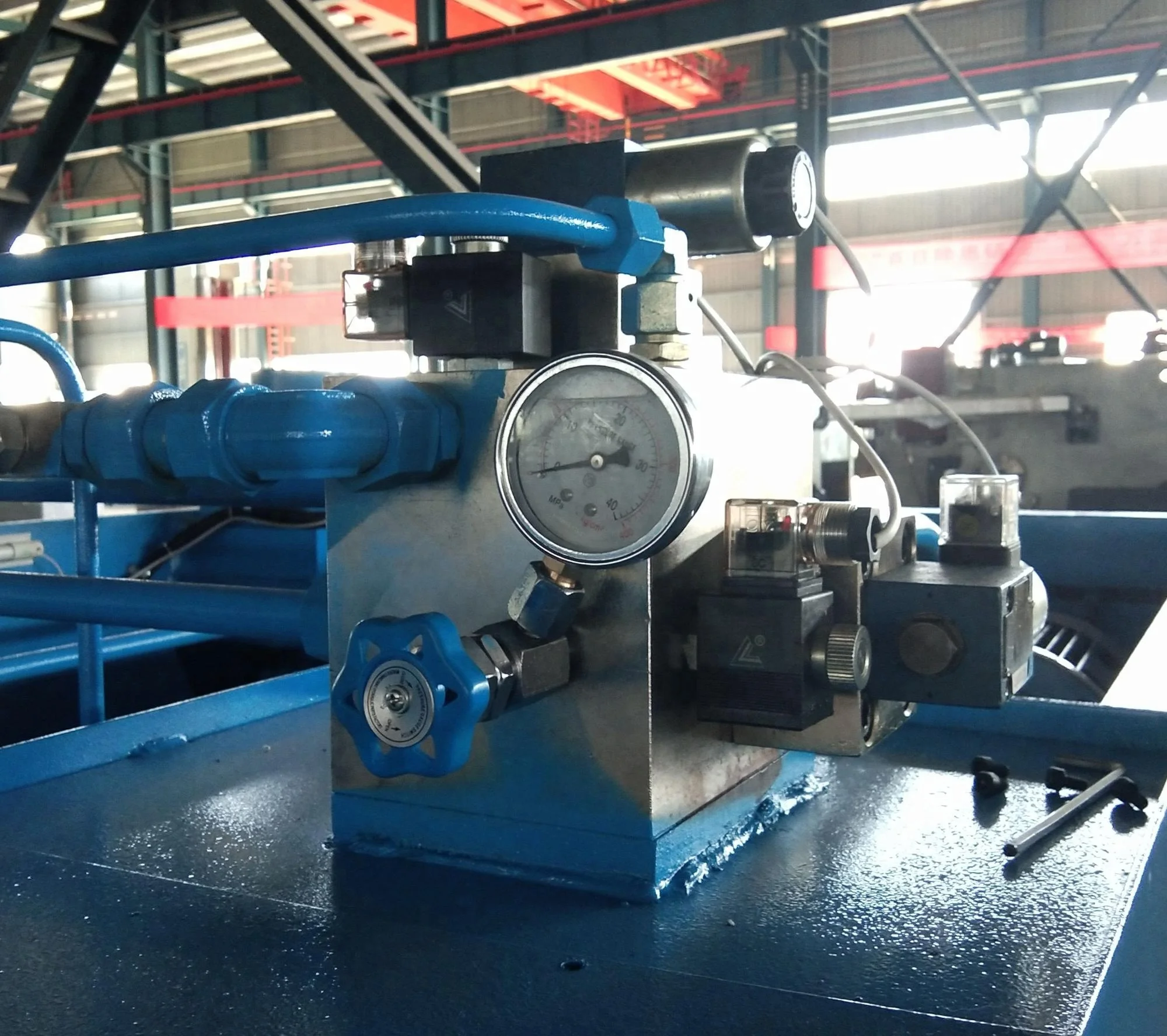

Hydraulic system:
1. Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
2. Oil seals by Japanese, NOK.
3. Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly.

Servo motorized back gauge:
1.CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings
2. Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
3. High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of back gauge.

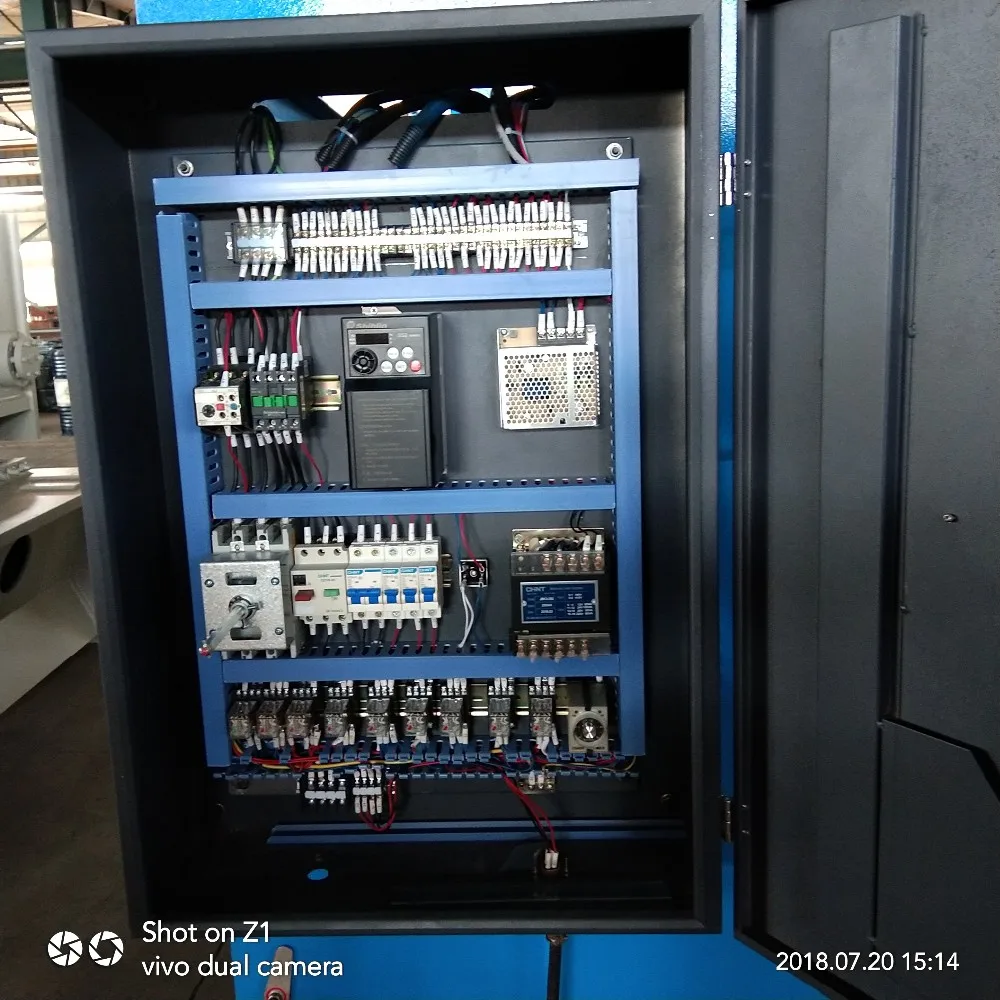

Electrical parts and protection device:
1. Schneider or Siemens Low-voltage apparatus. In accordance with international standards, reliable safety, long life,good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. Light screen protection or Laser protection are optional.

Anhui Maanshan cnc stainless steel sheet plate metal shearing machine hydraulic cutting machine price

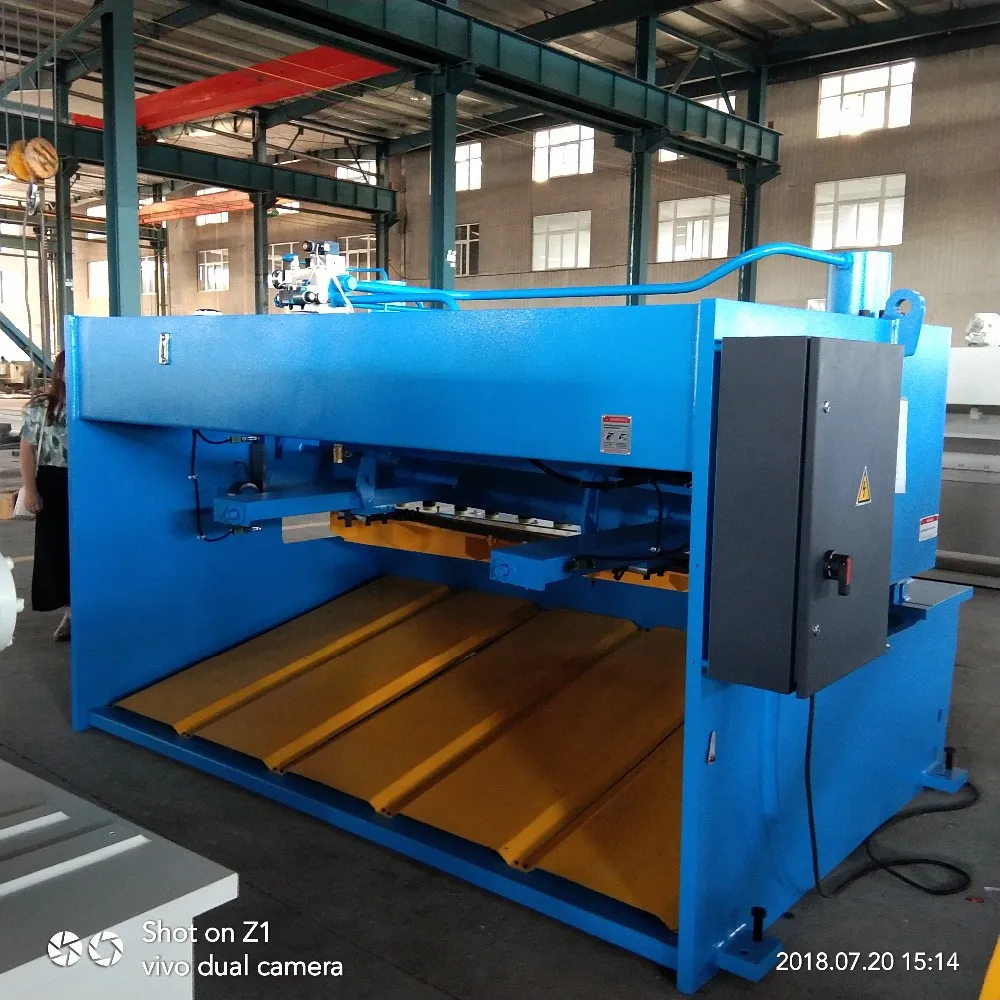

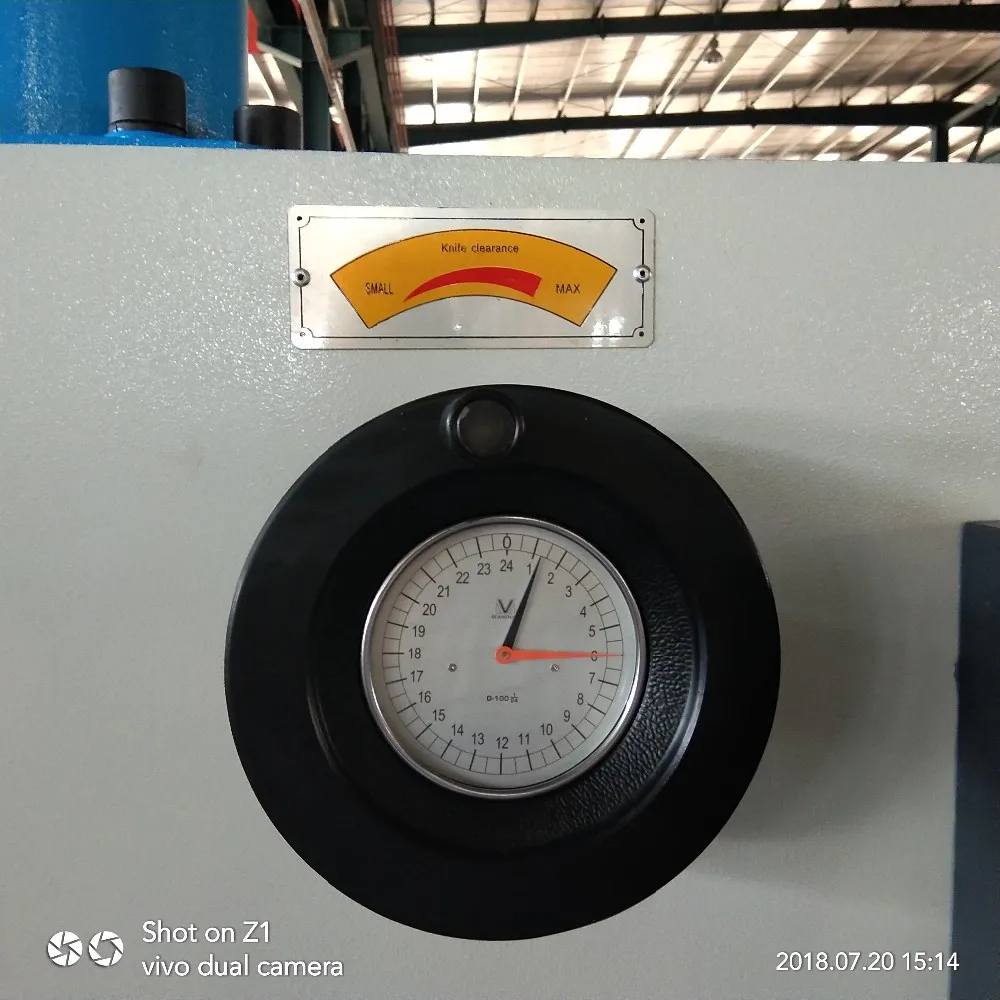

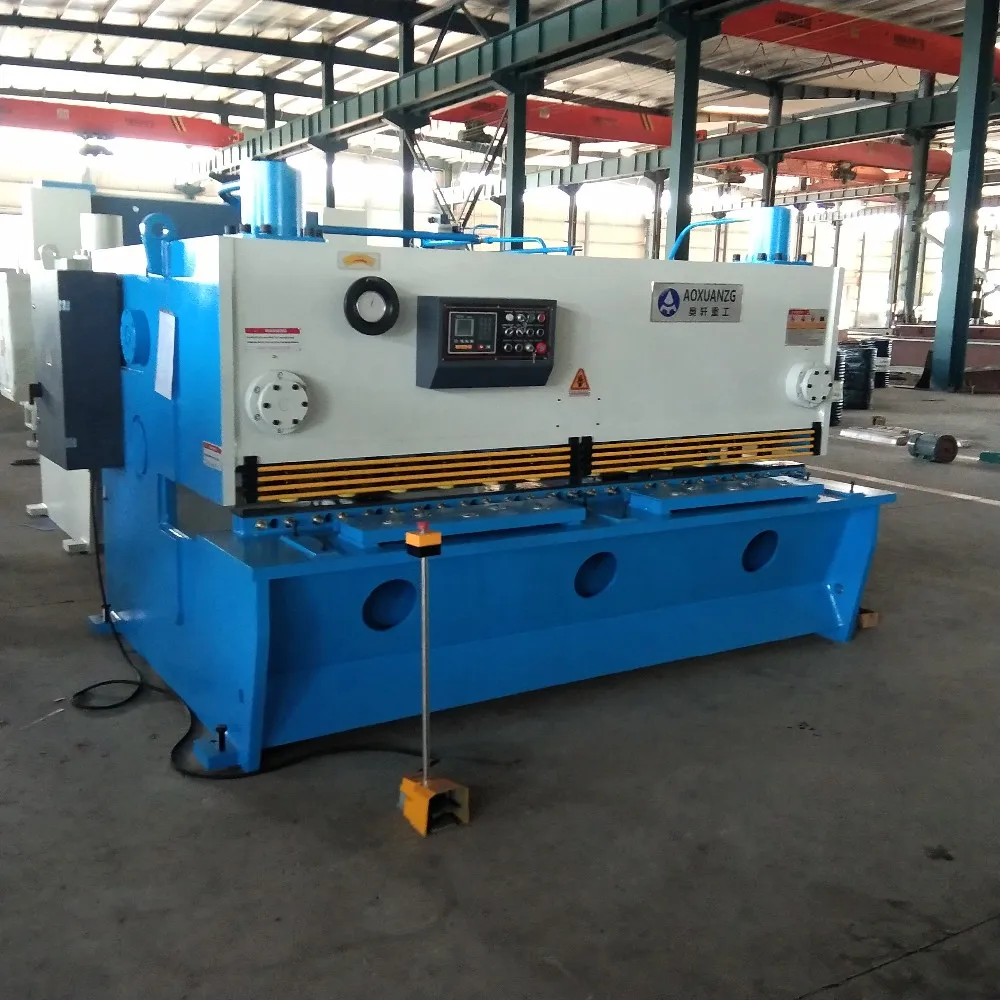

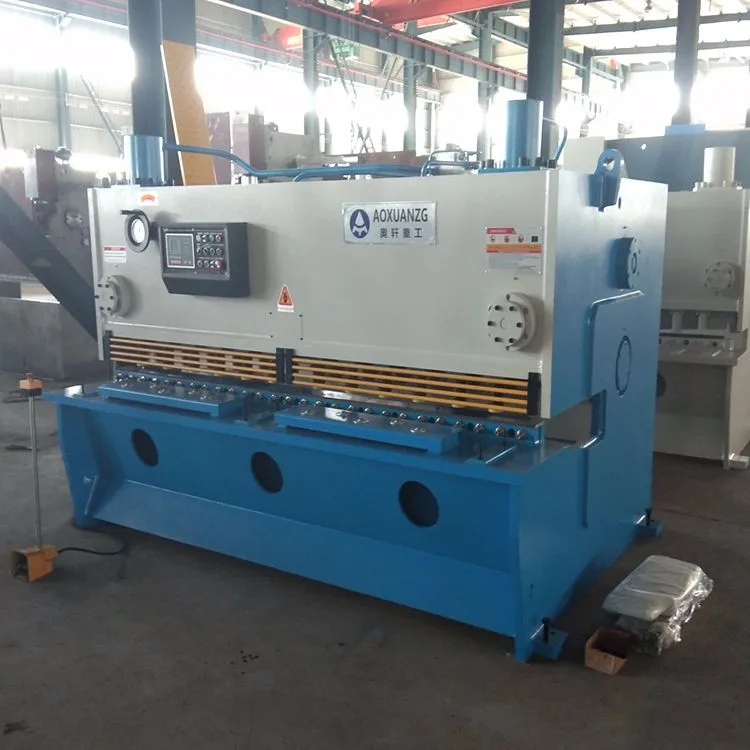

Detailed Images
Certifications
Packing & Delivery

cnc stainless steel sheet plate metal shearing machine hydraulic cutting machine price


Packing Detail:
☂ Each hydraulic cutting machine price with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


Delivery Detail :
☀ Shipped in 30 days after payment.

Service&Company

cnc stainless steel sheet plate metal shearing machine hydraulic cutting machine price

Our Service:

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.


Our Company:


Anhui Aoxuan Heavy Industry Machine Co., Ltd.is founded in 2013 in Maanshan city of Anhui province .

Customer

Factory cnc electric hydraulic stainless steel press brake price

Related Products

Press Brake                                 Auto duct line                             Plasma cutting machine             Cutting machine

FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.

And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.


2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.

Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.

For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.

7,Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.


8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .

How to contact us?
Send your inquiry Details in the Below .Click "Send"Now!
