Automatic CNC high accuracy press brake bending machine,CNC metal box bending folding machine

FOB Reference Price:Get Latest Price
US $7,600-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
WC67K-80T/2500mm
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AOXUANZG
Material / Metal Processed:
Carbon Steel
Power:
CNC
Automation:
Automatic
Extra Services:
End Forming
Certification:
ISO 9001:2000
Norminal Presure:
800KN
Bending Length:
2500mm
Bending Thickness:
4mm
Distance between Housings:
1900mm
Throat Depth:
300mm
Ram Stroke:
100mm
Open Height:
320mm
Main Motor:
7.5KW
Machine Weight:
5T
Overall dimension:
2500x1400x2300mm
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Type:
Press Brake
Raw Material:
Steel Bar
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Inner with Plastic film,outside with wooden box.
Or packed as your requirements.
Port
Shanghai Port or any ports of China
Lead Time :
20 days after receiving the balance payment
Video Description
Product Description

BRIEF INTRODUCTION:

♦ Steel-welded construction,vibration to eliminate stress, with high strength and good rigidity.
♦ Hydrualic top-drive,steadiness and reliability.Mechanical stop,steel torsion bar maintain synchronization,high precision.
♦ Motorize-adjustinf device of backgauge and rams stroke,fine adjusting by motor,numberical display.
♦Deflection compensation unit installed on the top die.manual crowned die holder is adopted for the machine above 250 ton length 4000 mm.
♦ The CNC or NC system, servo motor , ball screw, liner guider as customer' requirement.


Configurations:(opitional)
♦Servo motor
Operation System: Holland Delem DA41S system
♦Oil pump(Gear Pump): USA Sunny Brand
♦Hydraulic elements:Germany Rexroth brand
♦Electric parts:France Schneider brand
♦Motor: Siemens brand(Germany)
♦Main Seal:Valqua(Japan)/NOK(Japan)
♦Moulds:From Nantong (China)
♦Ball bearing lead screw and linear guide rall:Taiwan HIWIN brand
♦Oil connector:Germany EMB brand
♦Hydraulic cylinder:Jining Taifeng brand(3 years guaranteed)
All components also can supply according to client's requirement.

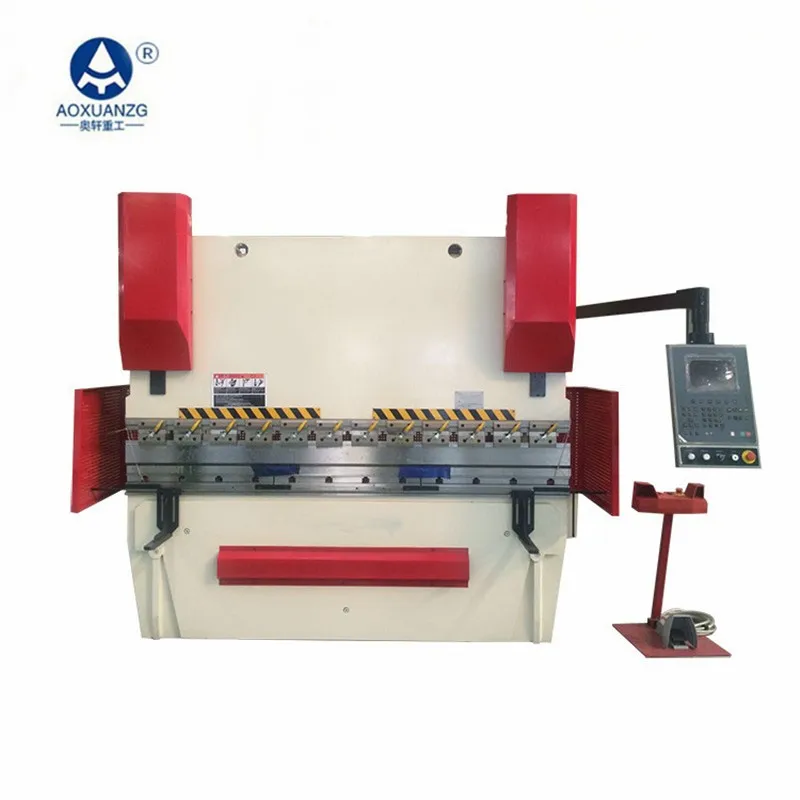

High Precision Press Brake Front:

Detailed Images




Name:Oil Pump

Brand:America Sunny brand
Original:Made in America





Name:Safety Valve

Brand:Germany Rexrath brand

Original:Made in Germany



Name:electric system

Brand:Schneider brand

Original:Made in France

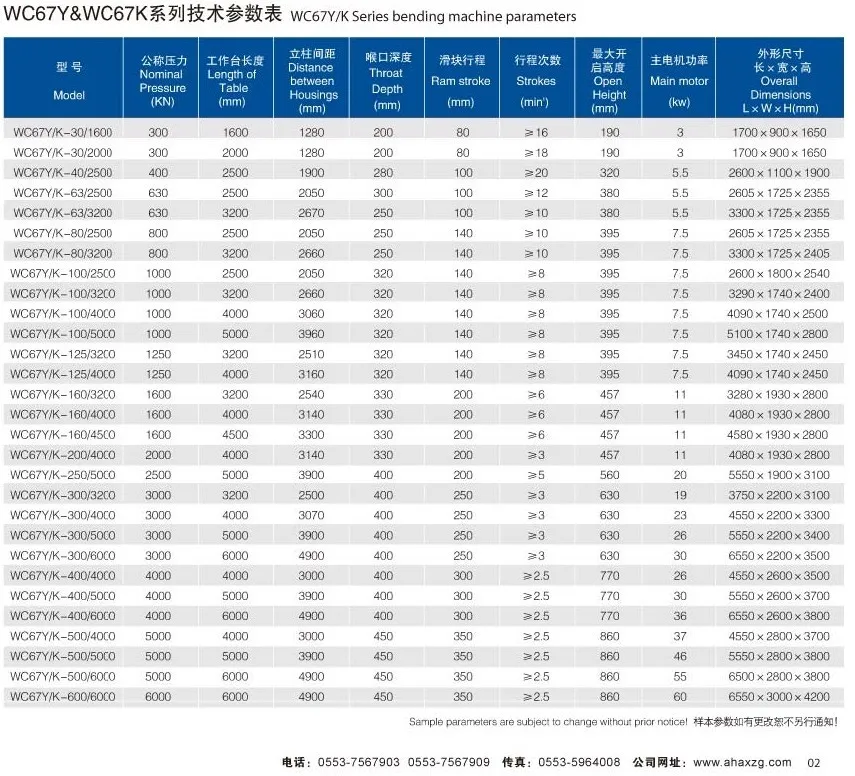

Technical Parameters

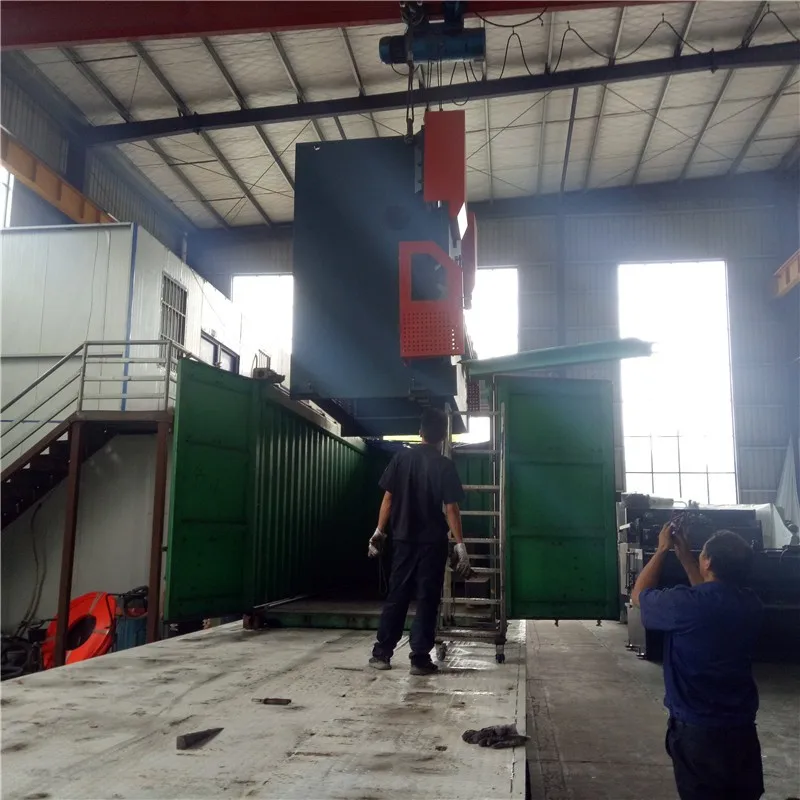

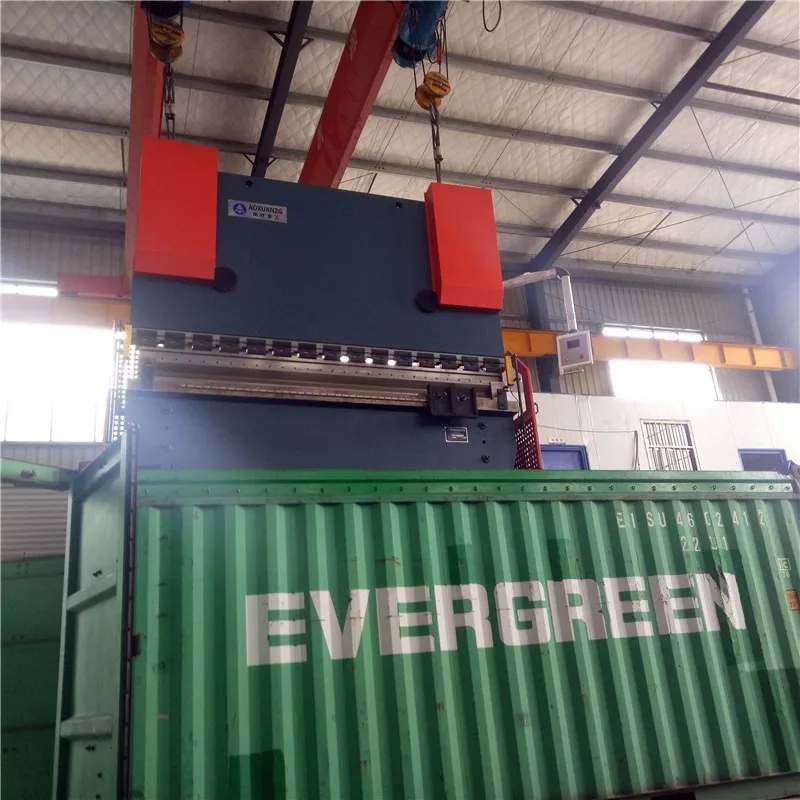

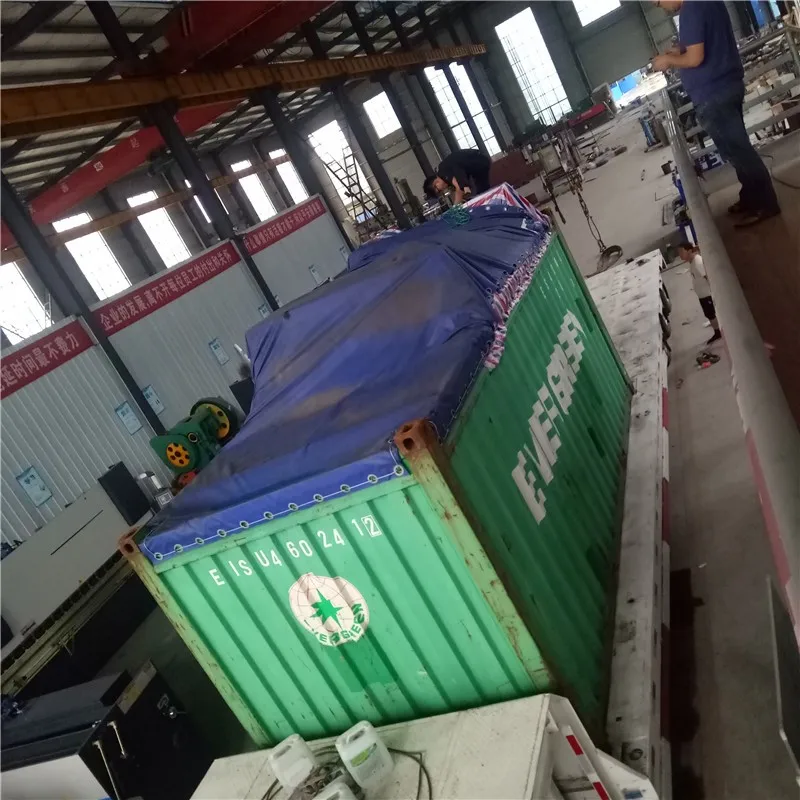

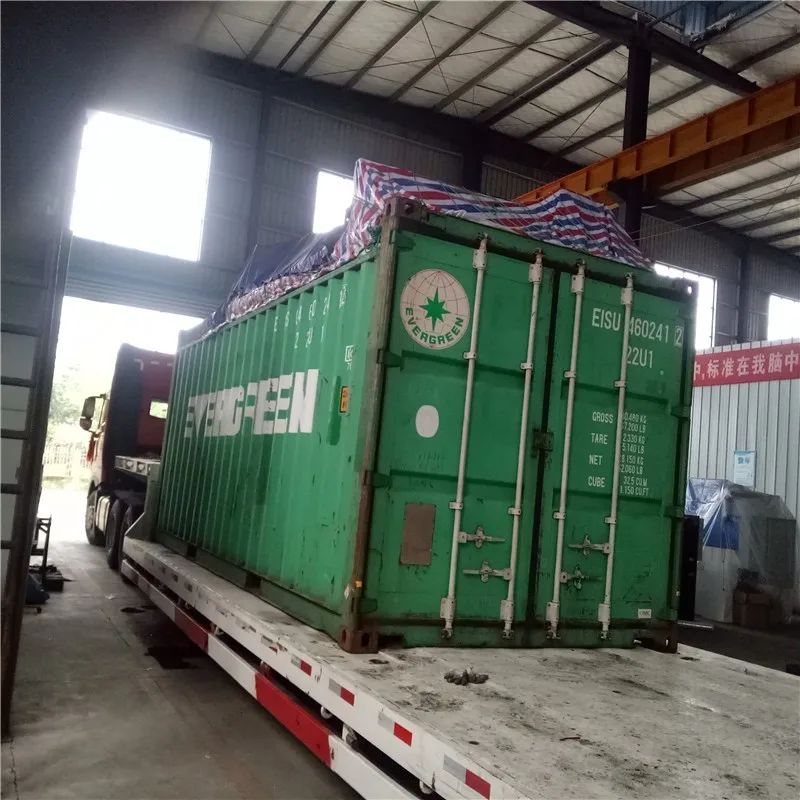

Packing & Delivery

LCL Packing: Inner with waterproof film,outside with woodenbox.(In order to protect goods from damage during the shipping.)

FCL Packing :Packed with plastic bags,and fasten machine with steel wire on container.

Shipping by sea.

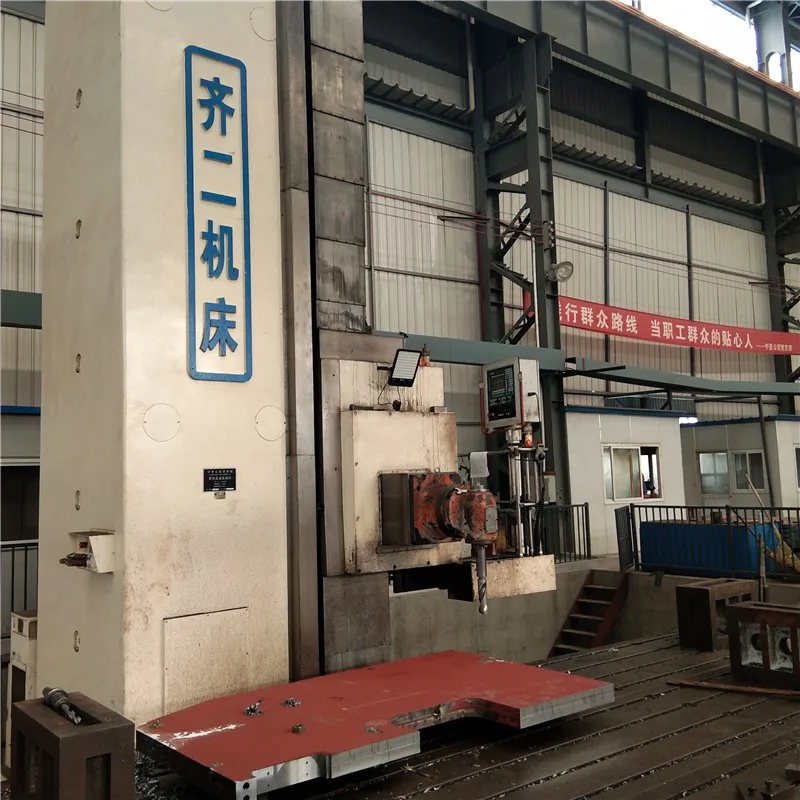

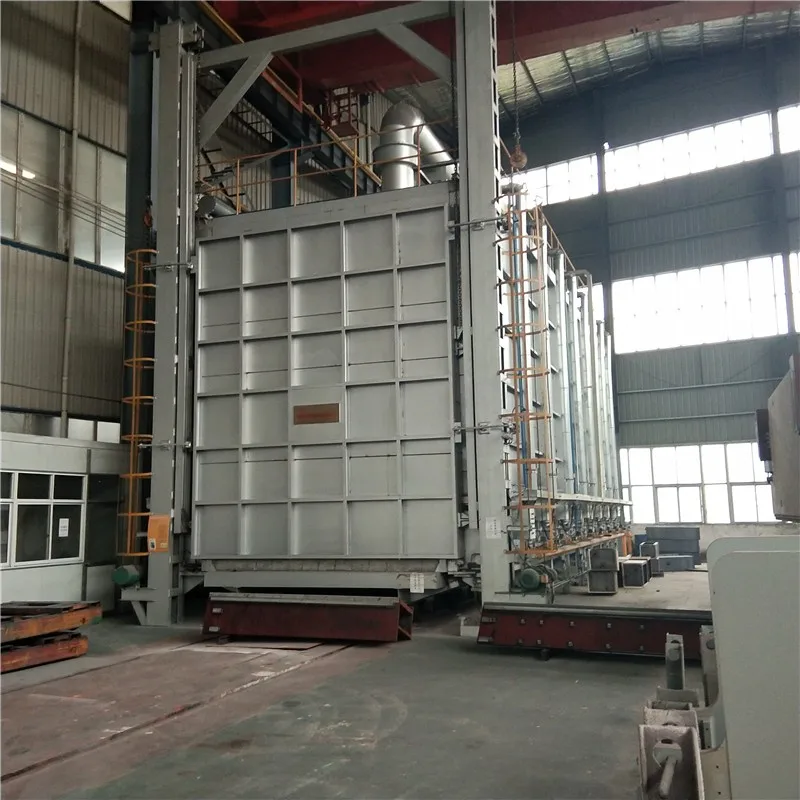

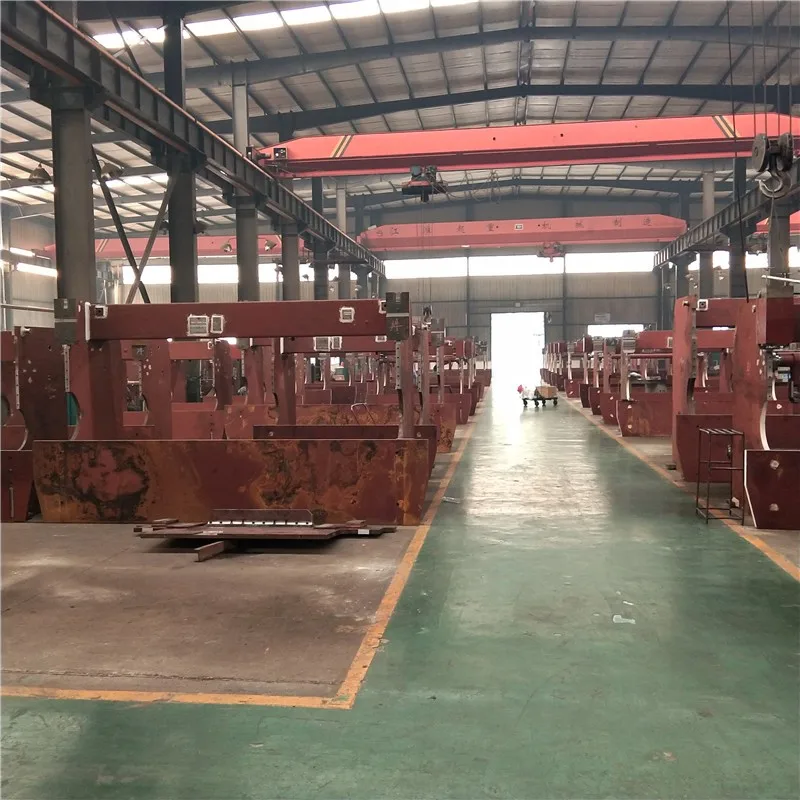

Our Company
