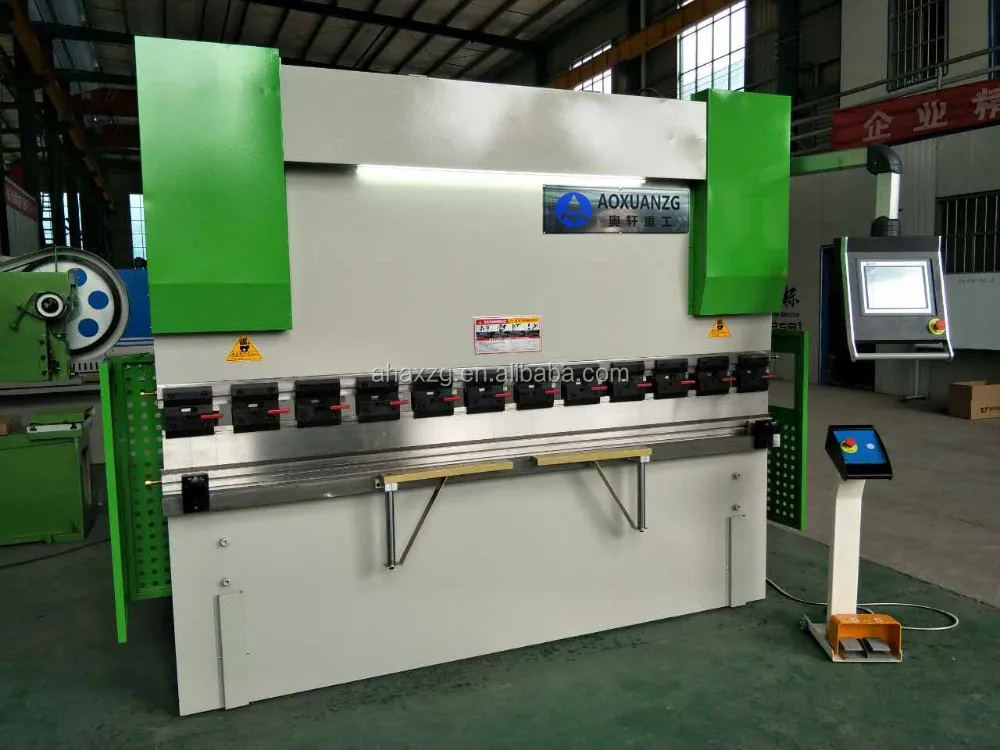

2019 new design high precision hydraulic servo cnc bending machine, TP10 system 3mm 4mm 5mm thickness press brake, brake press

FOB Reference Price:Get Latest Price
$6,800.00 - $13,600.00 / Sets | 1 Set/Sets (Min. Order)
Nominal Pressure (kN):
800
Model Number:
WC67K-80T/3200mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Automatic Level:
Fully Automatic
Throat Depth (mm):
250
Machine Type:
Torsion Bar
Applicable Industries:
Manufacturing Plant, Construction works
Length of Working Table (mm):
3200
Dimension:
3300*1725*2405mm
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AOXUANZG
Material / Metal Processed:
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum
Automation:
Automatic
Extra Services:
End Forming
Certification:
ce
Year:
2019
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Warranty:
1 Year
Slider Stroke (mm):
140
Weight (KG):
5000
Motor Power (kw):
7.5
Key Selling Points:
Competitive Price
Name:
Hydraulic Press Brake
Product name:
Hydraulic Cnc Bending Machine
Type:
Hydraulic Bending Tools
Usage:
Metal Sheet Bending
Application:
Steel Plate Sheet Bending
Color:
Optional
Keyword:
Brake Press Machine
Voltage:
220V/380V/415V/440V/customized
Function:
Steel Metal Bending
Bending length:
3200 MM
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packaging
Port
Shanghai Port or Other Chinese Ports
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description

2019 new design high precision hydraulic servo cnc bending machine, TP10 system 3mm 4mm 5mm thickness press brake, brake press

Features:

1.Stremlined design originated from EU,heat treatment of machine frame,high rigidity workbenc,opitional    mechanical comensation device,to ensure the precision of bending;

2.Hydraulic synchronous control and CNC programmable controller guarantee precise repeatability and easy use;

3.Integrated hydraulic system(Germany Bosch Rexroth) can be automatically switched to slow bending status;

4.X,Y axis realizes accurate positioning function through CNC TP10 controller programming and servo motor;

5.Latest servo response hydraulic control technology,the machine tool is more stable and reliable;

6.Opitional parameter ratio,best core configuration guaranrtee stable performance and more convenient for opitional;

7.WC67K series machine is equipped with single-axis back guage system,single axis bending angle system and V axis compensation function combining with customized dies,any type irregular workpieces can be done.

Standard Equipments:

1.TP10 Control system;

2. Controller controls and adjust Y-axis and X axis;

3.Servo motor drive control positioning of X axis and Y axis;

4.Keep the accuracy between HIWIN ball screw and linear guide within 0.05mm;

5.Front supporter bracket;

6.Germany Bosch Rexroth hydraulic valve block;

7.Germany EMB oil tube connectors;

8.Germany Siemens main motor;

9.France Schneider Electrics;

10.Hydraulic&Electrical overload protection;

11.Up and lower dies(86°,R0.6mm,material:42CrMo)

Safety Equipments:

1.Front finger protection(safety light curtain);

2.South Korea Kacon Foot Swithch(Level 4 of safety);

3.Back metal safe fence with CE standards;

4.Safety relay with monitor the pedal switch and safety protection

Detailed Images

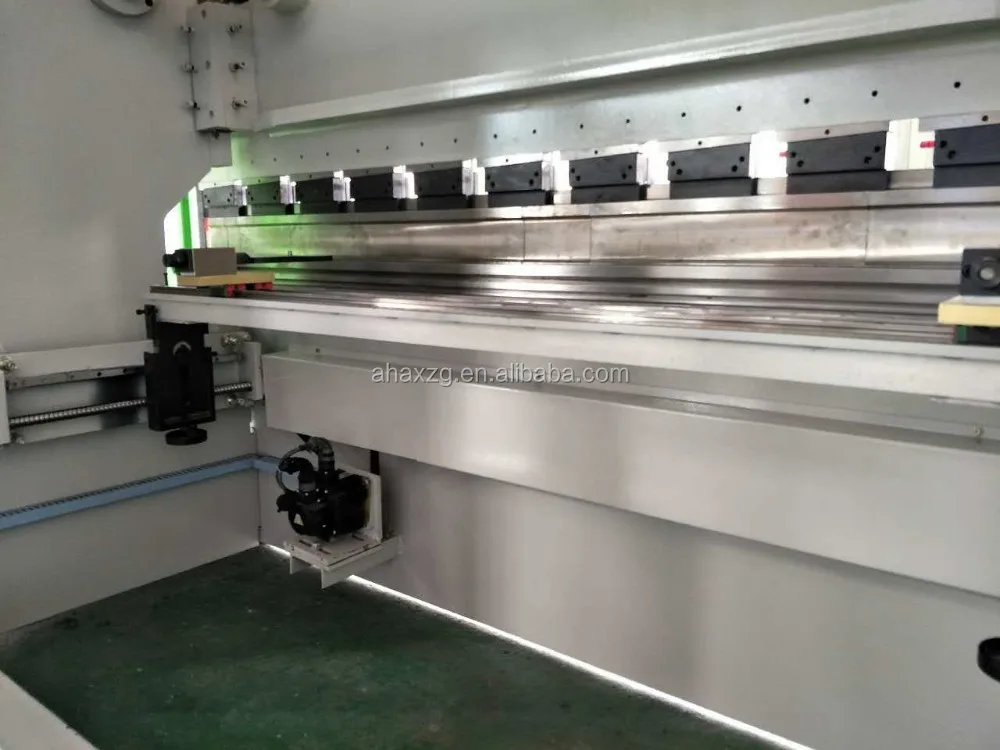

High accuracy backage:


1.Taiwan HIWIN brand ball screw linear guide rail;

2.Double servo motor;

3.Taiwan HIWIN brand double linear guide rail;

4.CNC finger stopper

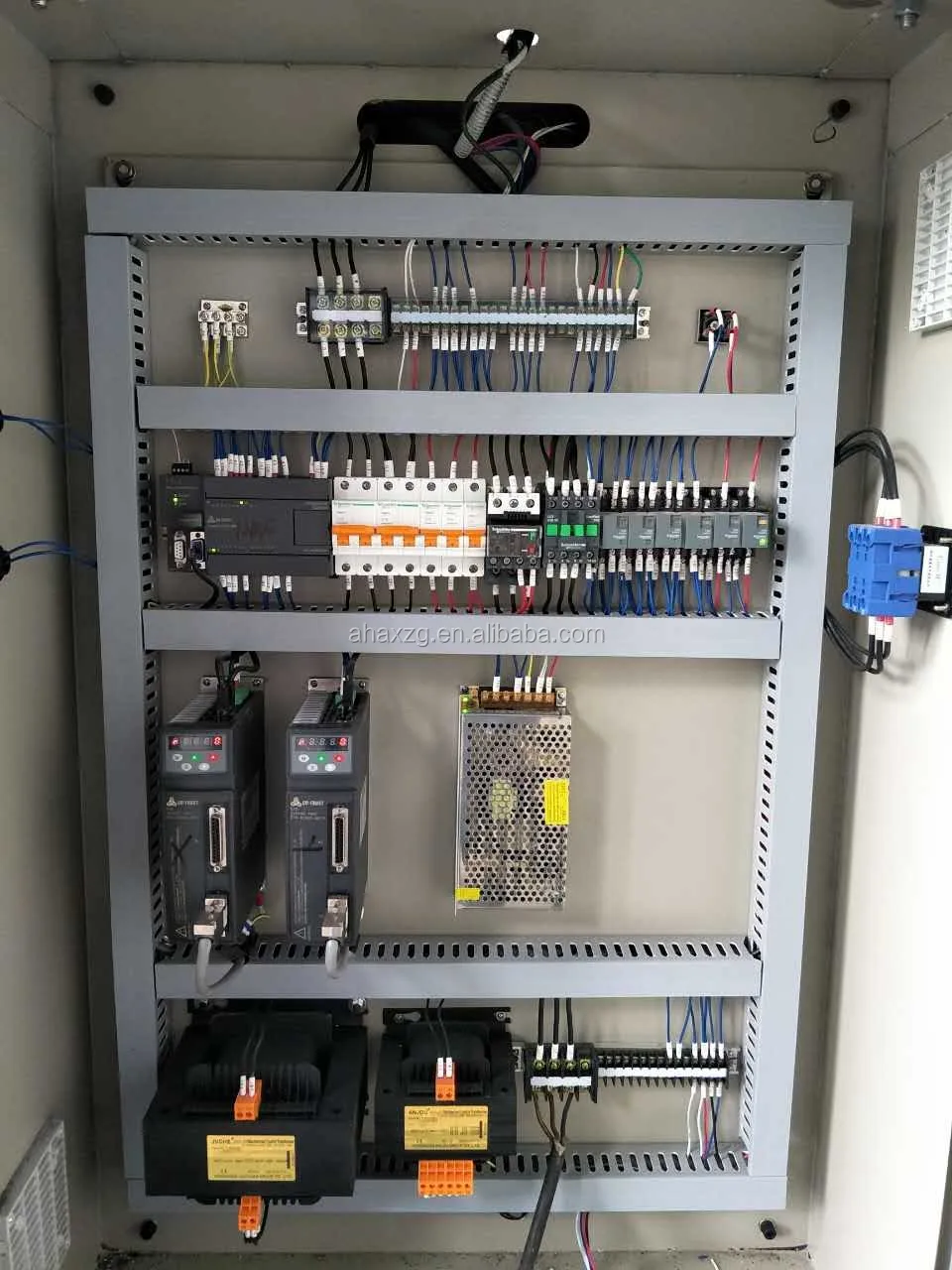

Electric system:


Brand: Schneider
Original: France
AdvantageMore stable,quality guaranteed.

Introduction for TP10 system:

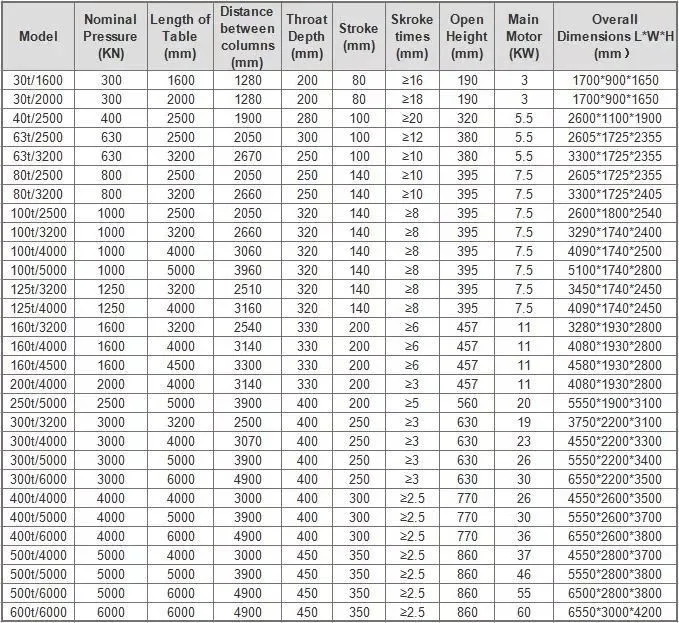

Technical Parameter
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packing Advice:

Full container loading: For save packing cost, you can choose our simple package: machine outside fasten many plastic film and then fasten machine on container by steel wire.

LCL container loading: In order to avoid damage during transportation, we suggest packing in wooden cases.

Our Company

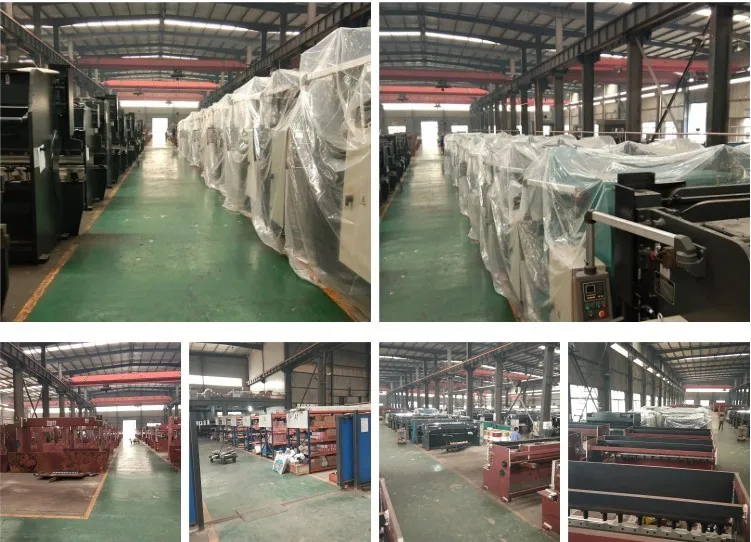

Photos of Our Factory

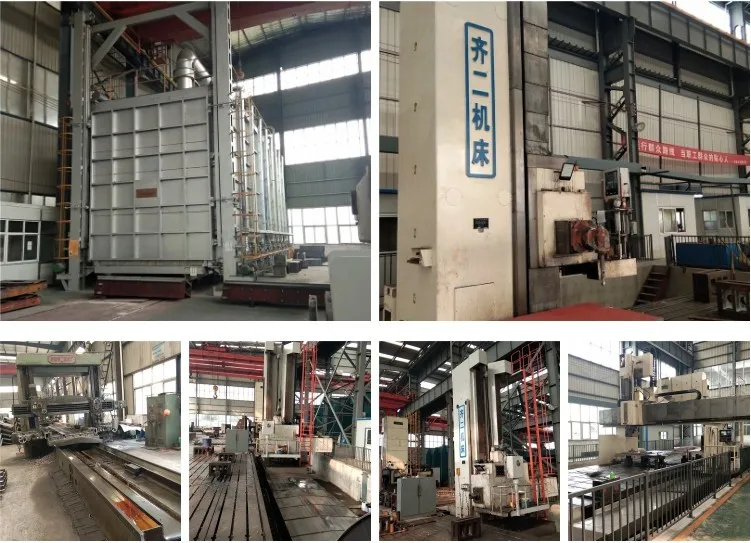

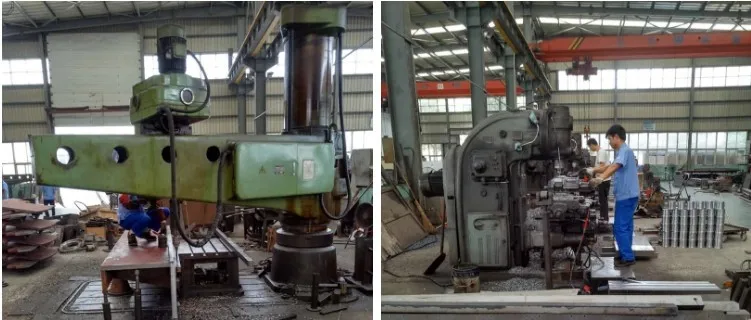

Our Processing Equipment

Certifications
