Air tube forming machine,HVAC steel auto making machine auto wind pipe production line 3

FOB Reference Price:Get Latest Price
$6,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HD-3-1250
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Certification:
CE ,ISO
Brand Name:
Aoxuan
Condition:
New
Applicable Industries:
Food & Beverage Factory, Farms, Garment Shops, Hotels, Food & Beverage Shops, Printing Shops, Home Use, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works , Restaurant, Food Shop, Advertising Company, Retail
Weight:
4500kg
Place of Origin:
Anhui, China
Power(W):
10kw
Dimension(L*W*H):
2200*1800*1300mm
Warranty:
2 Years
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support, Free spare parts, Field maintenance and repair service, Engineers available to service machinery overseas
Sheet Thickness (mm):
0.5-1.2mm
Production Capacity:
15m/min
Key Selling Points:
Automatic
Type:
Pipe Production Line
Voltage:
220v/380v/customized
Name:
Air Duct Machine
Raw material:
Alloy Steel
Thickness:
0.5-1.2mm
Function:
Sheet Metal Processing
Control system:
PLC Control
Keyword:
Air Duct Fabrication Line
Color:
optional
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard packing or as custom request
apply to :Air tube forming machine,HVAC steel auto making machine auto wind pipe production line 3
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description
Air tube forming machine,HVAC steel auto making machine auto wind pipe production line 3
Features:

* Linear structure reduces sheets transferring time and improve production efficiency.
* The material frame is controlled by the speed adjustable converter motor
* 10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness
* with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler.
* with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct.
* The input adopt two modes: screen tough and keyboard input which ensure stability of the system.
* require only one person to operate the machine, two persons can take away the ducts.
* The speed of each part can be adjusted as needed.
* A processing counting function for statistics and management with day count and total count.
* support print function for production management.

Main Functions:

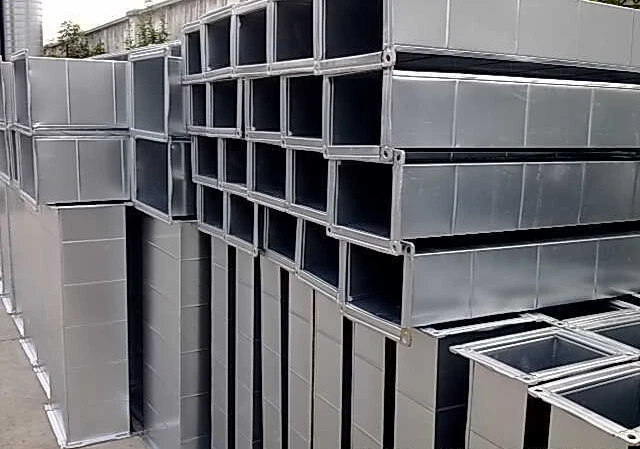

This line is mainly for producing square ducts with TDF flange/angle steel flange, the processing capacity is 1000-2000square meters per day. After input the dimensions of the ducts you want to process, then the machine can complete the following functions: uncoiling, leveling, beading, notching and punching, shearing, pittsburgh locking, TDF flange forming/angle steel flange forming and hydraulic folding.
Optional material auto stacking system


Basic configurations:

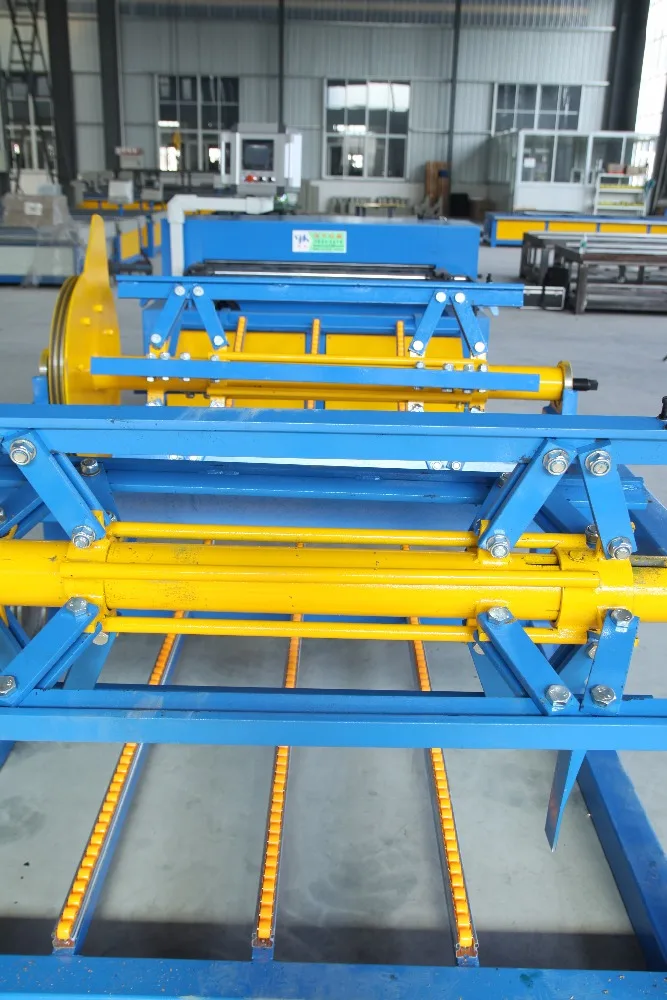

* A motor-driven material feeding frame(4 coils; the max loading per coiler is 7tons)
* Optional 8tons or 10 tons of hydraulic material frame
* A material supporting frame
* A main machine
* A manipulator for material clutch, transferring and positioning platform.
* A movable high-speed Pittsburgh lock forming machine
* A duplex angle steel flange forming machine
* A duplex TDF flange forming machine
* A servo-motor driven material feeding platform
* A TDF Hydraulic folding machine
* A CNC system and a set of production software

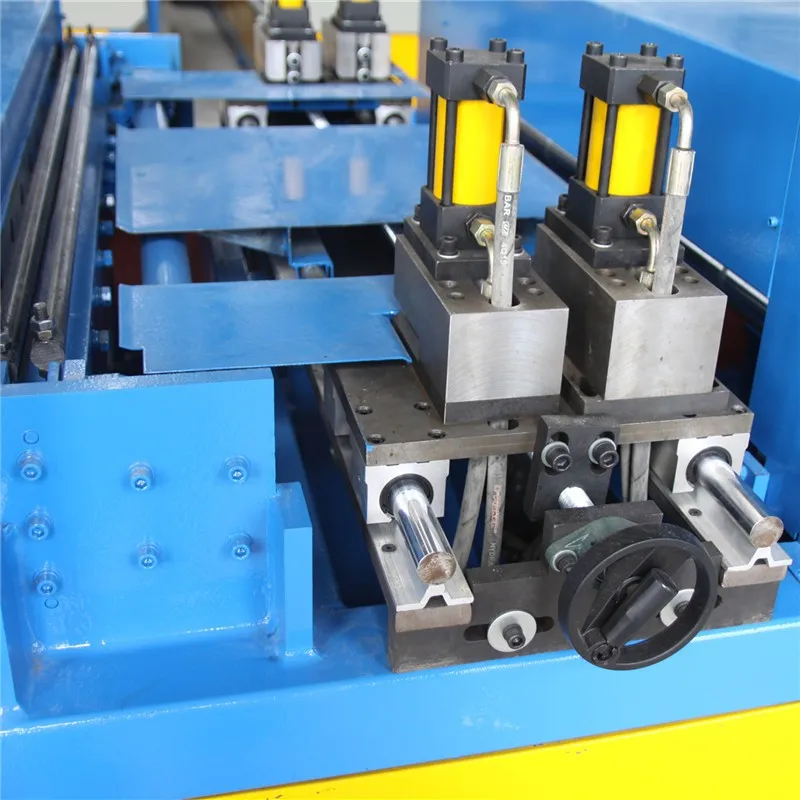

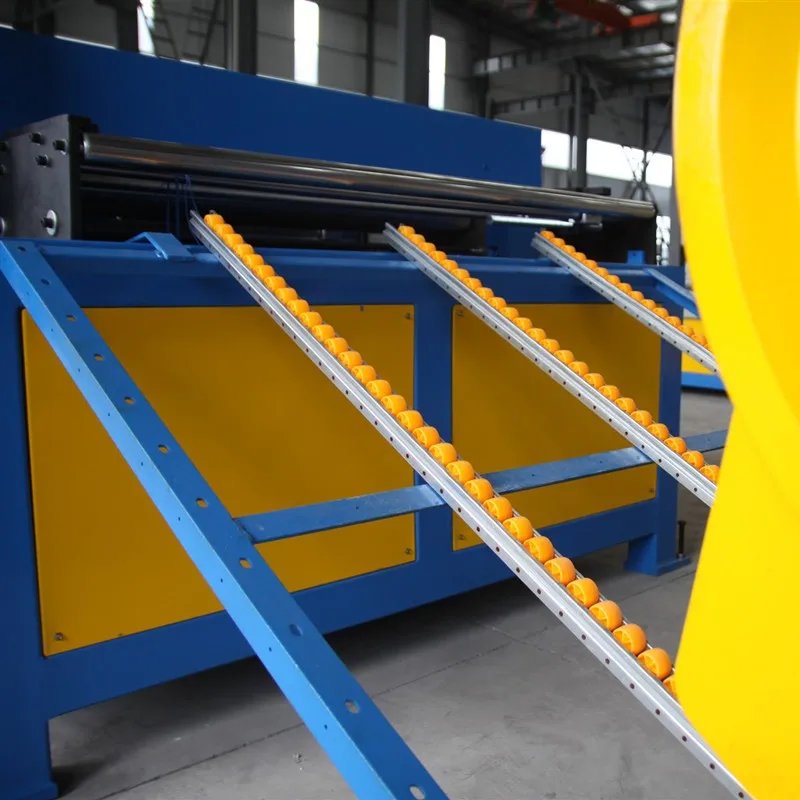

Detailed Images
Air tube forming machine,HVAC steel auto making machine auto wind pipe production line 3
Product Paramenters
Model
HD-3-1250
HD-3-1530
Capacity in mild-steel thickness range (mm)
0.5-1.2
0.5-1.2
Max-width (standard ) (mm)
1250
1530
Max- working speed (m/mm)
15
15
Coiler max-weight (kg)
6000
6000
Overal dimensions (mm)
2200*1800*1300
2200*2000*1300
2500*1800*1500
2500*2200*1500
Power (kw)
10
12
Weight (kg)
4500
5000
Our Service
Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
Certifications
Packing&Shipping

Packing Detail:

☂ Each Auto Duct Making Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after payment.

Company Introduction
Air tube forming machine,HVAC steel auto making machine auto wind pipe production line 3
FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?

Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3.What are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?

After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?

T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance?

Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?

We accept kinds of customized ,
including logo and machine .
