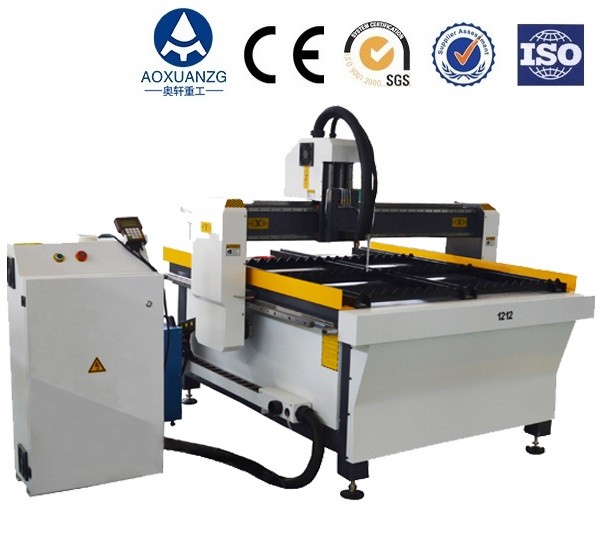

portable plasma cutting machine/plasma machine 1325/stainless steel cnc plasma cutter/steel cnc plasma

FOB Reference Price:Get Latest Price
US $4,000-6,500 / Sets | 1 Set/Sets (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 2
Research & Design >
  • No.of R&D Engineer: Less than 5 People
Trade Capacity >
  • Export Mode: Using an agent Have Own Export License
  • Export Percentage: 11% - 20%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AOXUAN
Model Number:
MF1530
Voltage:
380V 220V Optional
Rated Power:
7.5kw-15KW
Dimension(L*W*H):
3880*2150*2000mm
Weight:
2-8T
Certification:
CE ISO
Name:
Cnc Plasma Cutting machine
Working area::
2000*4000mm
cuttinh width:
1250-2000mm
cutting length:
2500-6000mm
Plasma cutting thickness:
Plasma Power Source Capacity)
Control system:
F-2100T
guide rail::
Hiwin square rail
Application:
Industrial Metal Cutting
Machine type:
desktop
Processing materials::
Iron, aluminum, galvanized shee
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard packing
Port
SHANGHAI PORT
Lead Time :
Shipped in 25 days after payment

 portable plasma cutting machine/plasma machine 1325/stainless steel cnc plasma cutter/steel cnc plasma



Product Description



Applicable industry and materials of low cost cnc plasma cutting machine

1.The Suitable material:



Cutting on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.



2.The application industries:



Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.



Machine features of  low cost cnc plasma cutting machine

1. START Control system (Option:DSP, MACH3)



2. Hua yuan 80A plasma power (Option: Thermadyne Power)



3. Automatic arc pressure adjustable



4. Stepping drive and motor(Option:AC Servo motors)



5. UCANCAM Software



6. HIVIN Linear Guide



7. Wooden box package



8. Thicken cast steel structure



9. Aluminum alloy gantry



10.YAKO 2608 drives



11.Toothed bar table

          Technical parameters



odel

LXP2040(LXP1212/1015/1325/1530/2030/1550/1560/2050/2060-A2 is optional)

Working size(length * width)

2000*4000mm(1200*1200/1000*1500/1300*2500/1500*3000/2000*3000/1500*5000/1500*6000/2000*5000/2000*6000mm is optional)

Repeat positioning accuracy

±0.05mm

Traveling speed

0-24000rpm/min

Cutting speed

10-15m/min

Transmission model

Gear rack drive

Transmission system

X,Y round rails with high-precision,zero clearance

increased linear guide+ rack

Driver

Leadshine driver

Plasma power supply

Imported US Haibao or Domestic Huayuan

Cutting thickness

0-30mm

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Guide way

Imported square rail

Table-board

Steel blade saw tooth mesa

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

 <90% No concreting



          Cutting thickness



Power supply

Cutting thickness

Power supply

Cutting thickness

China Huayuan

US Hypertherm

63A

6mm

45A

8mm

100A

15mm

65A

12mm

160A

20mm

85A

15mm

200A

30mm

105A

18mm

Main machine pictures






Working samples
