WC67Y-400T/3200 hydraulic bending machine Stainless steel bending machine

FOB Reference Price:Get Latest Price
$30,000.00 - $37,300.00 / Sets | 1 Set/Sets (Min. Order)
Nominal Pressure (kN):
4000
Model Number:
WC67Y
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Automatic Level:
Semi-automatic
Throat Depth (mm):
400
Machine Type:
Torsion Bar, Press Brake
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Length of Working Table (mm):
3200
Width of Working Table (mm):
240
Dimension:
3750*2100*3700
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Aoxuan
Material / Metal Processed:
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum, carbon steel /stainless steel and so on
Automation:
Automatic
Extra Services:
End Forming
Certification:
CE/ISO
Year:
2019
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Warranty:
2 Years, 2 Years
Slider Stroke (mm):
250
Weight (KG):
18000
Motor Power (kw):
23
Key Selling Points:
High Productivity
Raw Material:
Steel Bar
Name:
Hydraulic Press Brake
Type:
Hydraulic Bending Tools
Usage:
Metal Sheet Rolling Cutting Bending
Application:
Stainless Steel Strip Bending
Material:
Q235
Color:
Customized
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard package of WC67Y-400T/3200 hydraulic bending machine Stainless steel bending machine
Port
shanghai port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

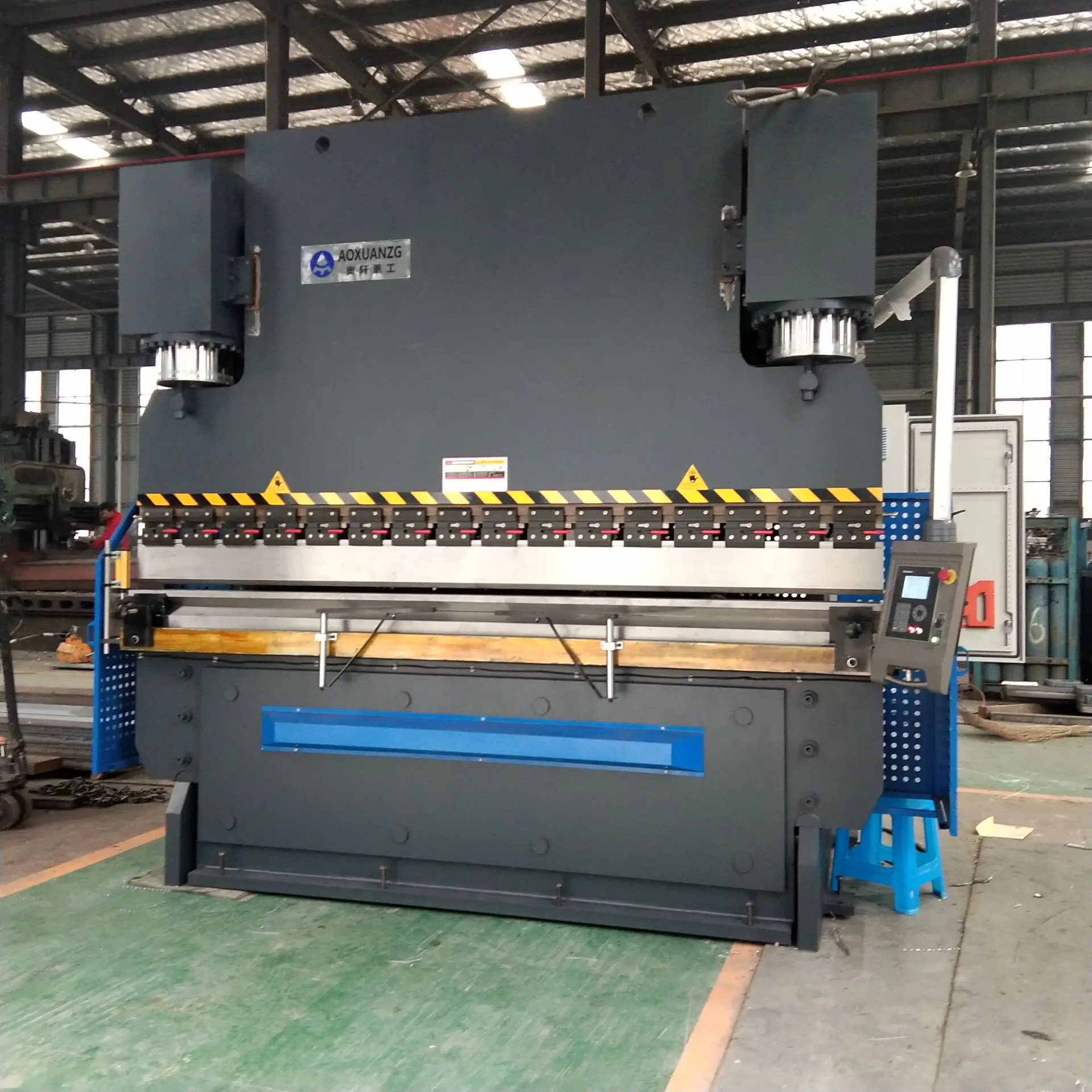

WC67Y-400T/3200 hydraulic bending machine Stainless steel bending machine

Main Features of WC67Y-400T/3200 hydraulic bending machine Stainless steel bending machine

The whole structure of hydraulic cnc press brake

1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity.

2. Mechanical torque system makes sure the synchronization of cylinders.

3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.

4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

5.The CNC or NC system, servo motor , ball screw, liner guider as customer' requirement

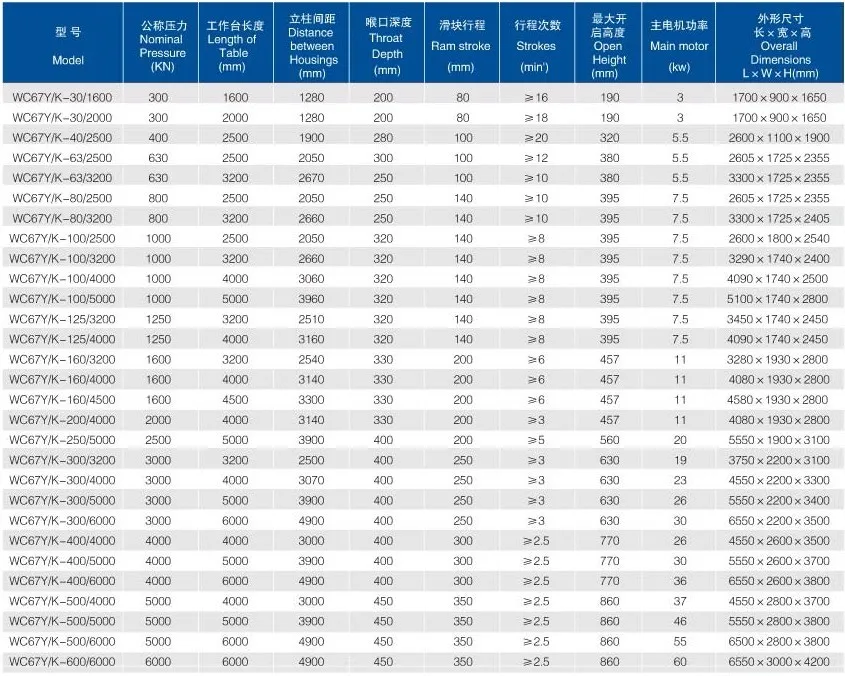

Technical data
Detailed Images

160X160 standard  bending moulds and accept customized

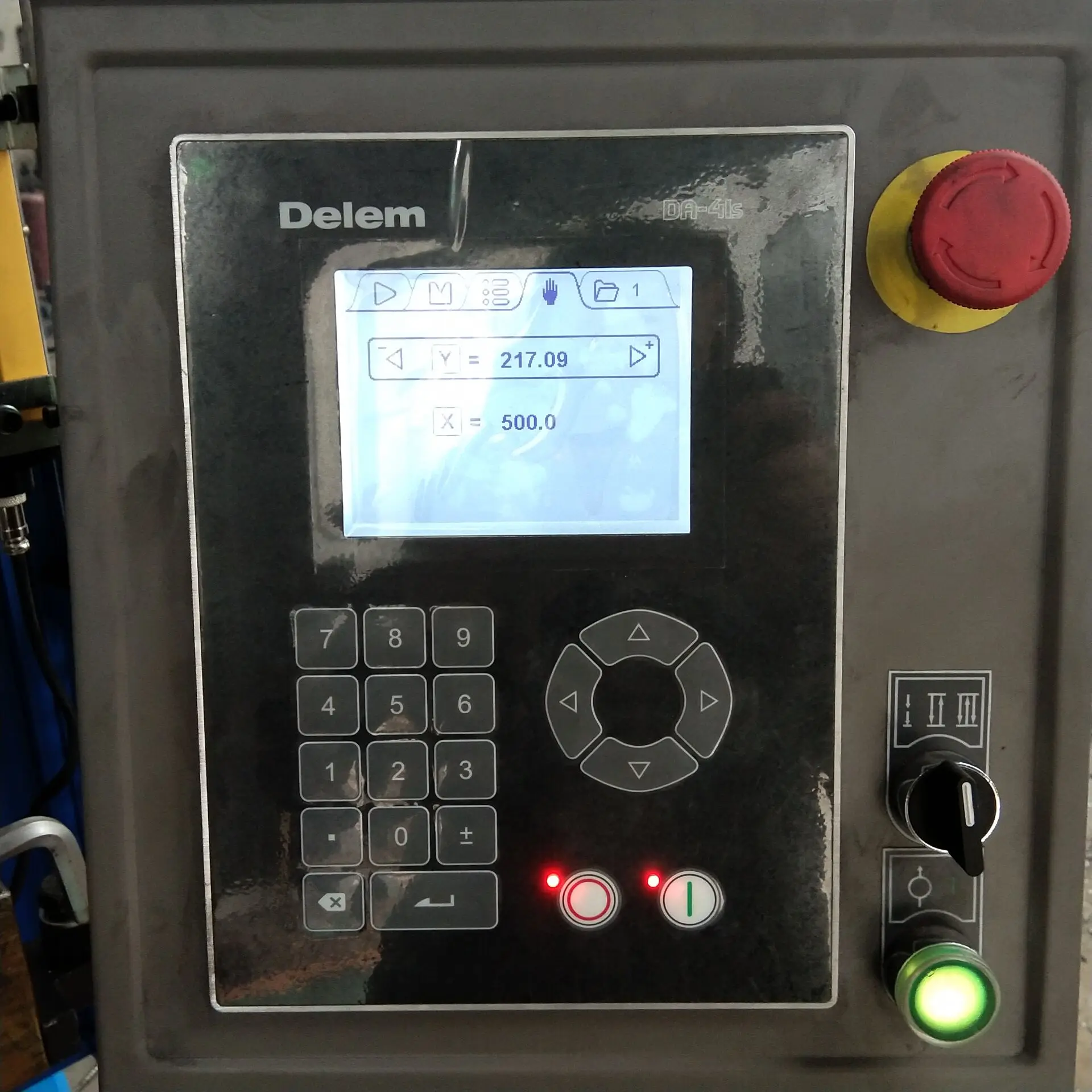

Delem DA41S Controller from Holland

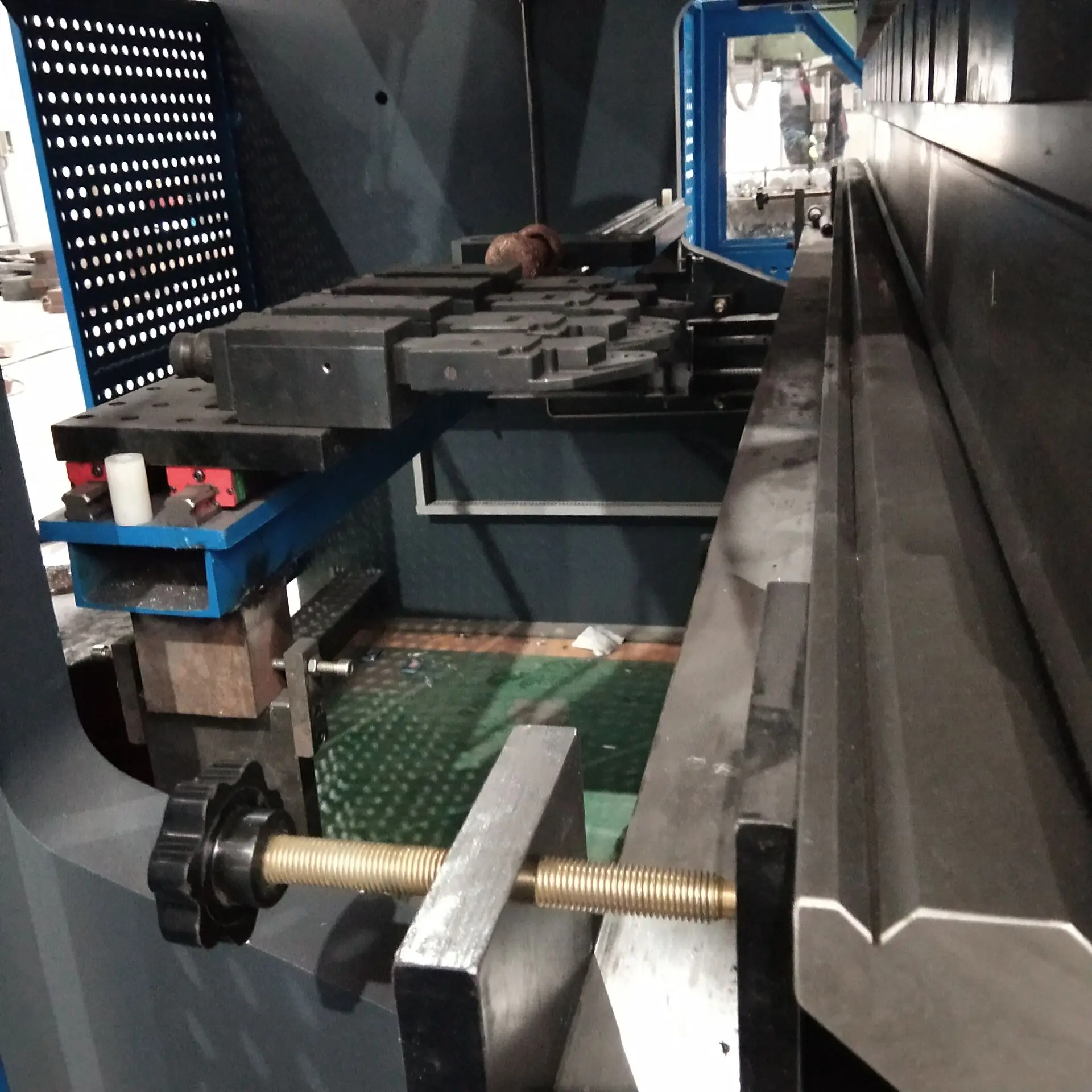

CNC back stopper

  Light curtain protection

Certifications
Packing & Delivery
Our Company
FAQ

 WC67Y-400T/3200 hydraulic bending machine Stainless steel bending machine

Q:How about your machine quality?


A:Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brilliante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Q:The machine price can be more discount?

A: We think about our price level,we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction. and Increase the order quality or long-term cooperation in the future will get our discount.

Q: Where is your factory?

A:We located in Ma'anShan City, Our factory is particularly close to Nanjing, about an hour, if you are to visit the factory .We can pick you up at the airport.Welcome to visit our factory!

Q:How about your machine quality?

A:Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brilliante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Q:The machine price can be more discount?

A: We think about our price level,we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction. and Increase the order quality or long-term cooperation in the future will get our discount.

Q: Where is your factory?

A:We located in Ma'anShan City, Our factory is particularly close to Nanjing, about an hour, if you are to visit the factory .We can pick you up at the airport.Welcome to visit our factory!
