LXP1325 CNC plasma cutter sheet metal automatic plasma cutting machine with good quality

FOB Reference Price:Get Latest Price
$4,000.00 - $6,500.00 / Sets | 1 Set/Sets (Min. Order)
Effective Cutting Range (mm):
1300*2500
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, Energy & Mining
Motor Type:
Stepper Motor
Dimensions:
As customized
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Aoxuan
Model Number:
LXP1325
Voltage:
380V
Rated Power:
8.5kw
Dimension(L*W*H):
As custom
Certification:
CE ,ISO
Weight (KG):
1600
Warranty:
2 Years
After-sales Service Provided:
Video technical support, Field maintenance and repair service, Online support, Free spare parts, Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points:
High-accuracy
Weight:
1500kg
Name:
CNC Plasma Cutting Machine
Cutting thickness:
Max 12mm carbon steel
Max.cutting speed:
12000mm/min
Processing materials:
Stainless steel, carbon steel, aluminum,copper, titanium plate
Plasma cutting thickness:
Plasma Power Source Capacity
Application:
Industrial Metal Cutting
Machine type:
desktop
Control system:
STARfire
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Outside package is standard export wooden case.
2. Inside package is stretch film with three layers winding in surface to avoid crash during the transportation.
3. As the clients requests.
apply to : LXP1325 CNC plasma cutter sheet metal automatic plasma cutting machine with good quality
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description
LXP1325 CNC plasma cutter sheet metal automatic plasma cutting machine with good quality

Applicable industry and materials of low cost cnc plasma cutting machine

1.The Suitable material:



Cutting on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.



2.The application industries:



Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.

 Machine features of  low cost cnc plasma cutting machine


1. START Control system (Option:DSP, MACH3)



2. Hua yuan 80A plasma power (Option: Thermadyne Power)



3. Automatic arc pressure adjustable



4. Stepping drive and motor(Option:AC Servo motors)



5. UCANCAM Software



6. HIVIN Linear Guide



7. Wooden box package



8. Thicken cast steel structure



9. Aluminum alloy gantry



10.YAKO 2608 drives



11.Toothed bar table

The structure and configuration list

1.seamless welding machine body
2.1300*2500mm working area
3.China LGK 63A Plasma source
4.Independent control cabinet
5.STAR fire control system
6.Automatic Torch height controller
7.Starcam software
8.2GB processing file
9.high precision square guide rail
10.high precision ball screw
11.China high precision stepper motor
12.Multi-function tool box
13.Efficiency exhaust smoke system
14.Easy feeding slide material system
15.High quality soft electricity cable can be bend for 1.5 million times
16.All the necessary parts for machine working

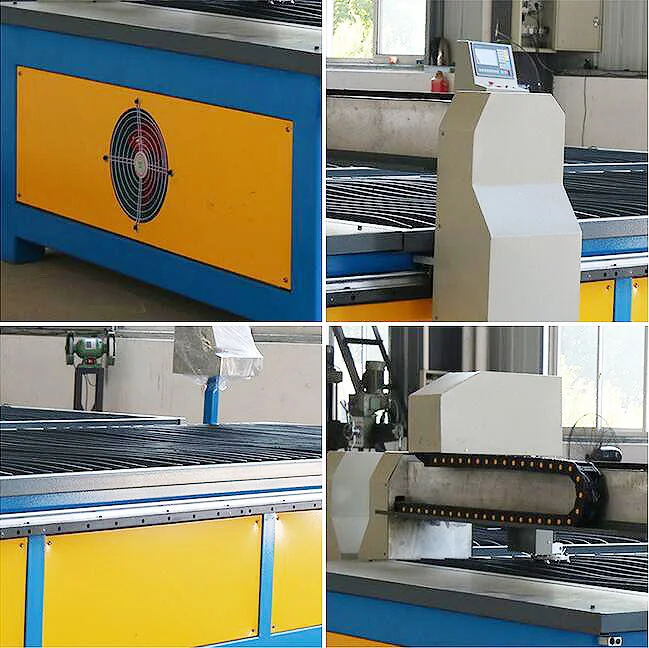

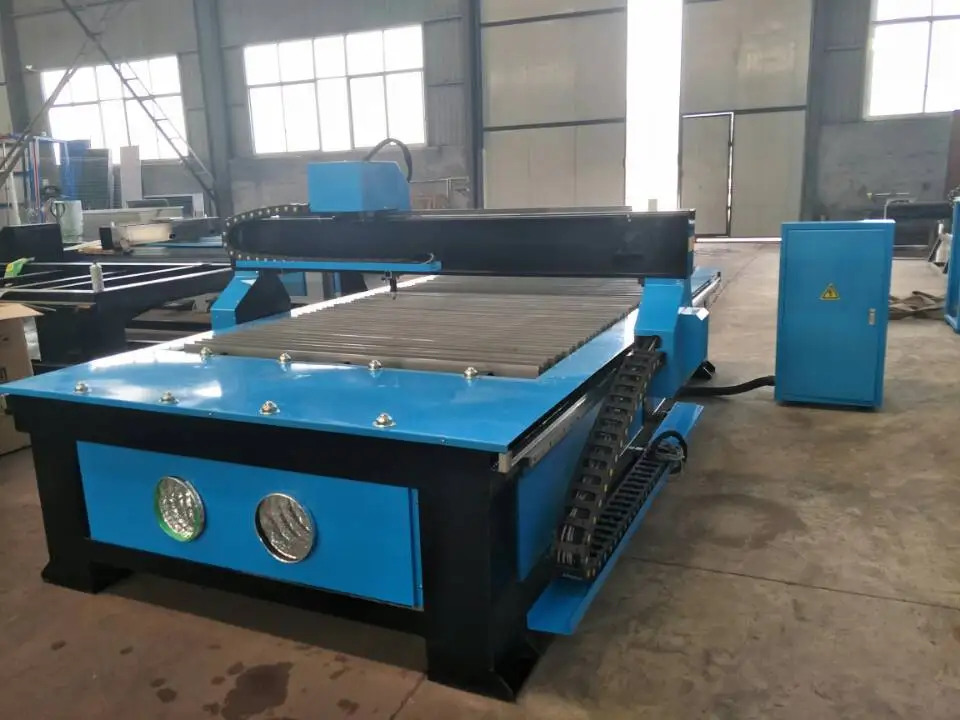

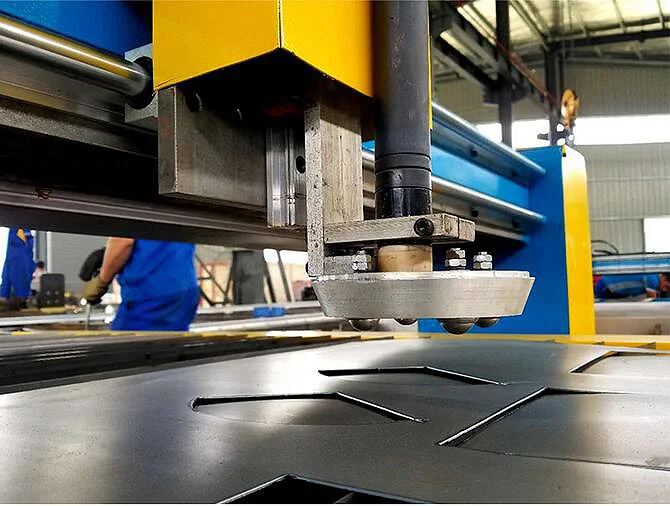

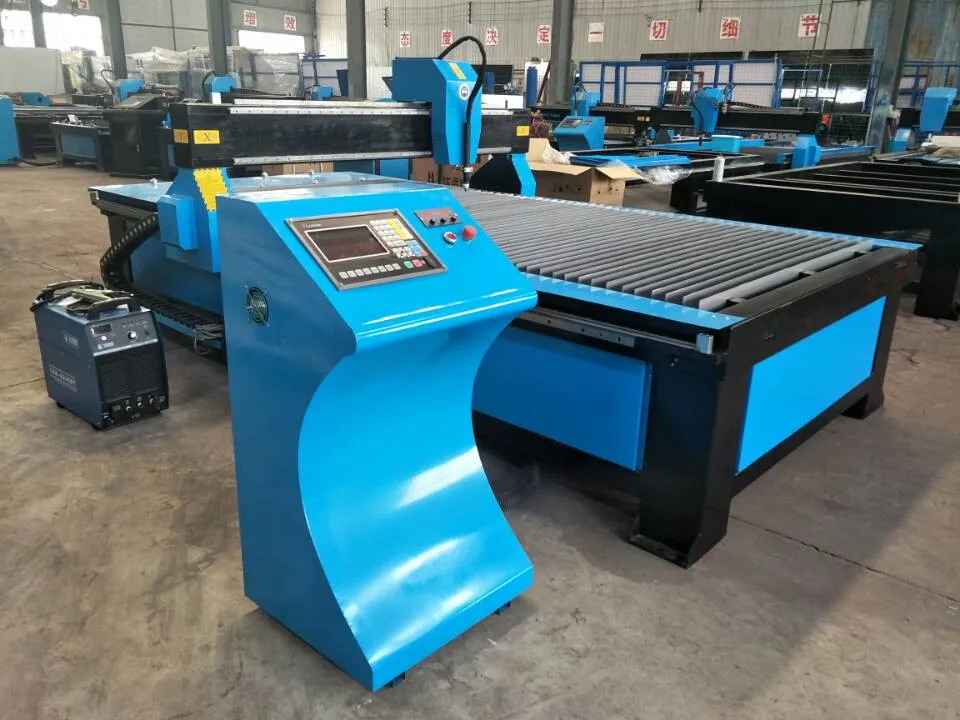

Detailed Images
LXP1325 CNC plasma cutter sheet metal automatic plasma cutting machine with good quality
Product Paramenters
Model
1325 63A Plasma cutting machine
X,Y working area
1300*2500mm
Z working area
150mm
Lathe bed
Very thick steel structure
Power
8.5kw
Reposition precision
0.02mm
Processing precision
0.1mm
Max.cutting speed
12000mm/min
Torch Height control mode
Automatic
Cutting thickness
Max 12mm carbon steel
Plasma Air Pressure
Max.0.8Mpa
Working Temperature
-10°C-60°C. Relative Humidity, 0-95%
Certifications
Our Service
LXP1325 CNC plasma cutter sheet metal automatic plasma cutting machine with good quality

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance

Packing&Shipping
Packing Detail:

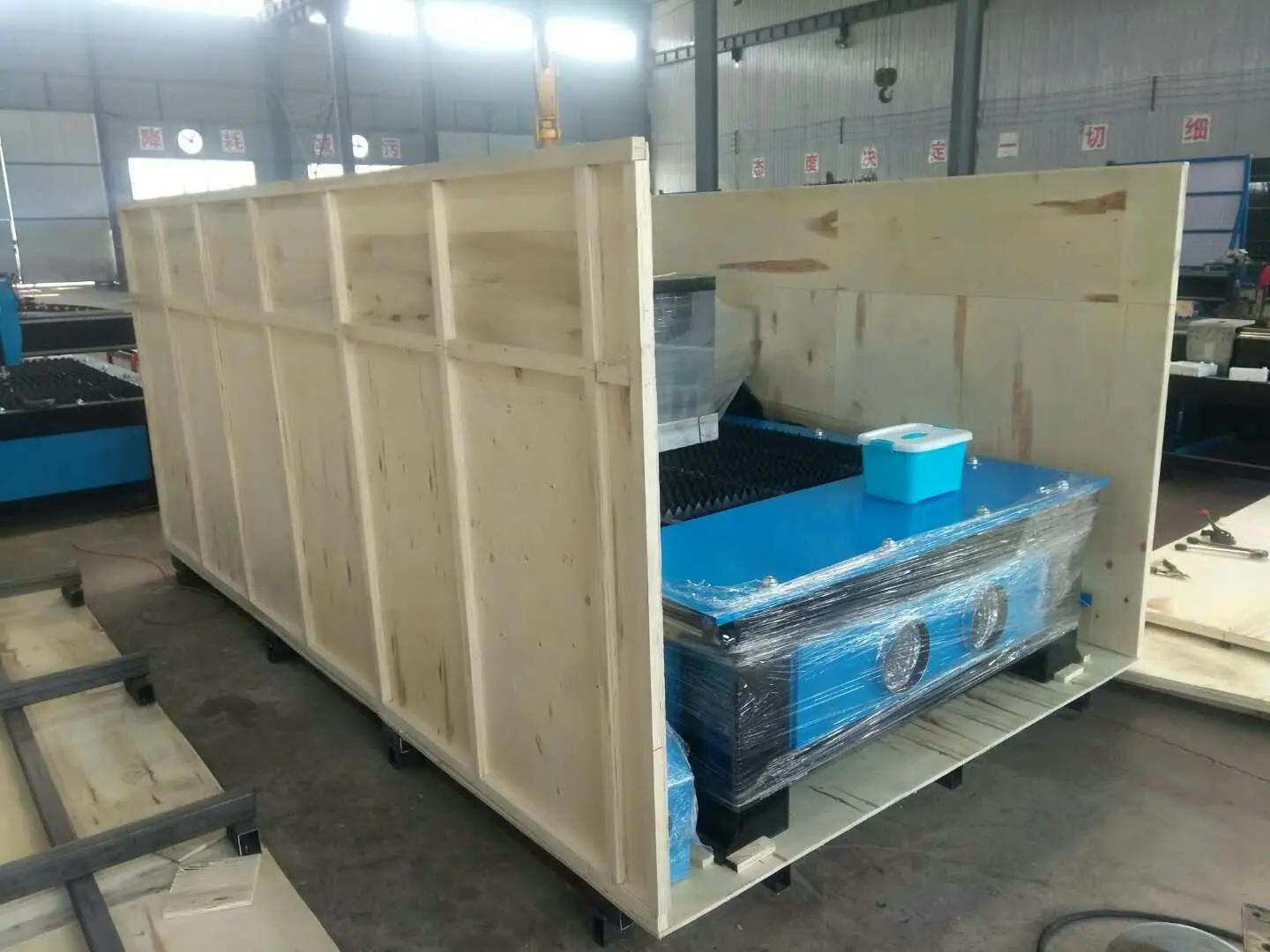

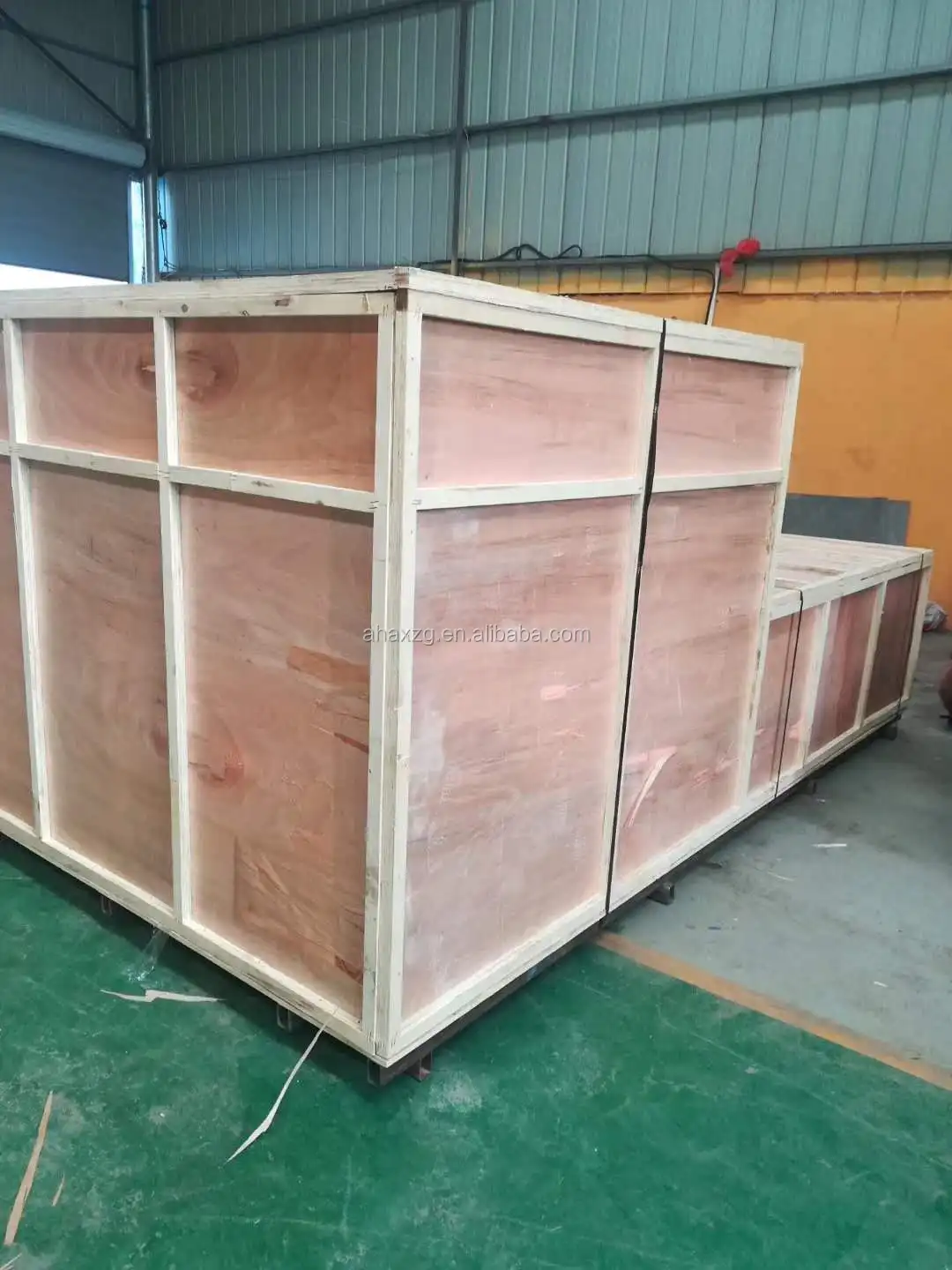

☂ Each plasma cutting machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after payment
Company Introduction
LXP1325 CNC plasma cutter sheet metal automatic plasma cutting machine with good quality
FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?

Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3.What are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?

After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?


T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance?

Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?

We accept kinds of customized ,including logo and machine .
