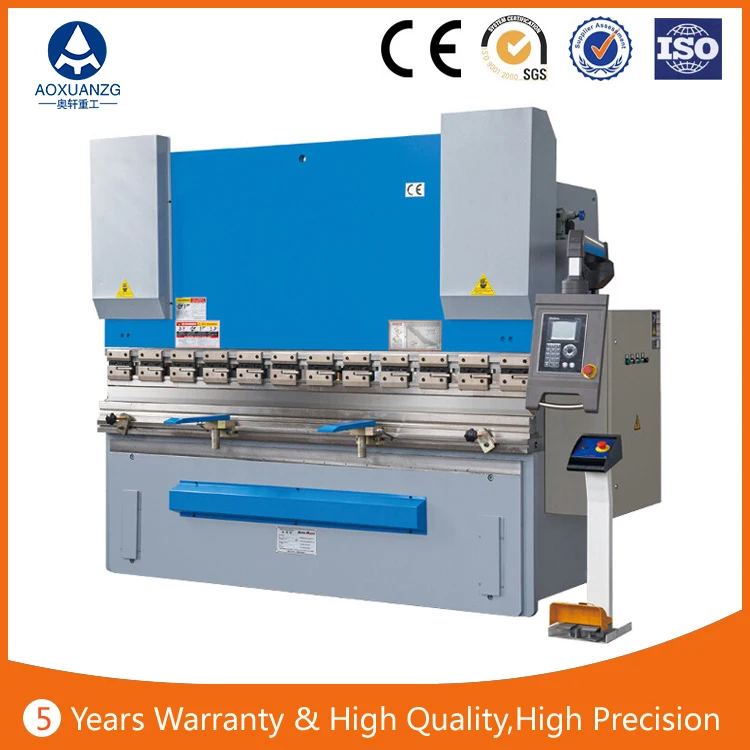

factory instock 30t 2000mm Press Brake machine,2000mm hydraulic bending machine,E21 press brake

FOB Reference Price:Get Latest Price
US $2,000-6,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
WC67Y
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Aoxuan
Material / Metal Processed:
carbon steel /stainless steel and so on
Power:
Hydraulic
Automation:
Automatic
Extra Services:
End Forming
Certification:
CE/ISO
Name:
Hydraulic Press Brake
Usage:
Metal Sheet Bending
Norminal pressure:
300kn
Length of Table:
2000mm
distance between housings:
1280mm
Throat Depth:
200mm
Ram stroke:
80mm
stroke:
18/min
open height:
190
Motor Power:
3kw
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Type:
Press Brake
Raw Material:
Steel Bar
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard package
Port
shanghai port
Lead Time :
Shipped in 20 days after payment
factory instock 30t 2000mm Press Brake machine,2000mm hydraulic bending machine,E21 press brake

Company Information






Product Description

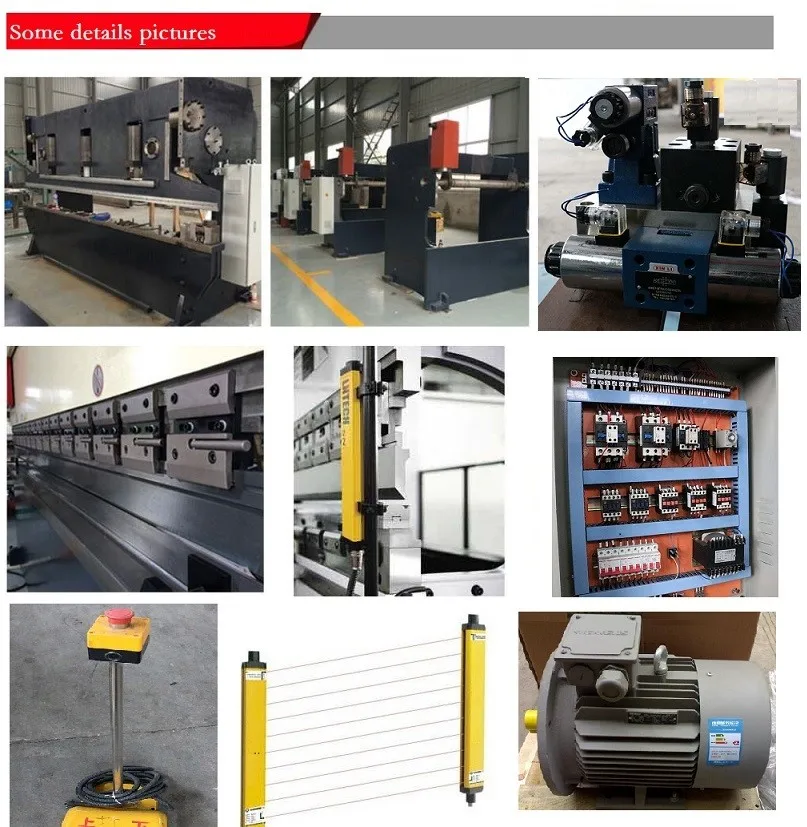

The whole structure:
1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity.
2. Mechanical torque system makes sure the synchronization of cylinders.
3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.
4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

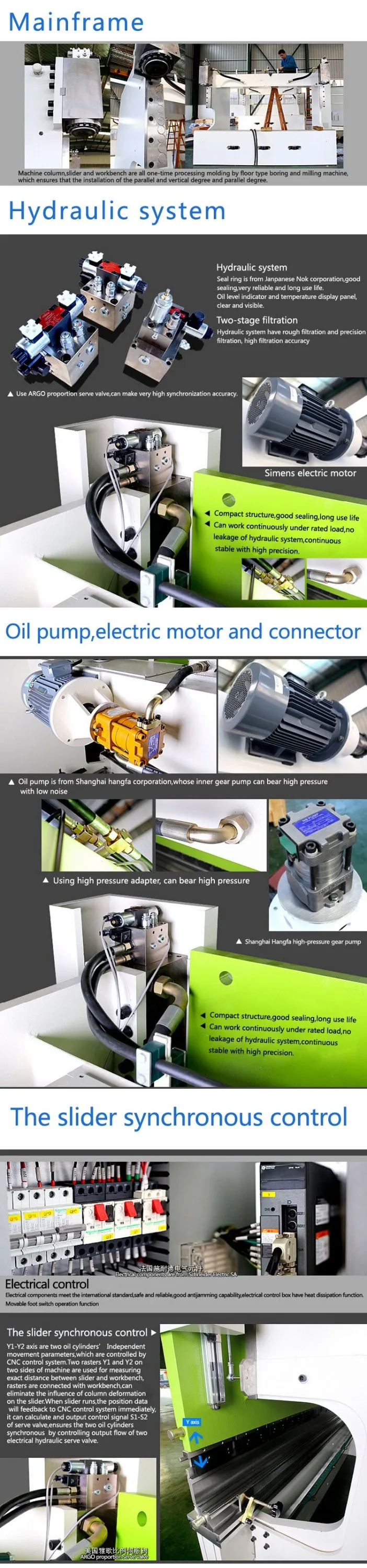

Hydraulic system:

1.  Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
2. Oil seals by Japanese, NOK.
3. Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly.

Servo motorized back gauge:
1.CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings
2. Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
3. High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of back gauge.

Electrical parts and protection device:
1. Schneider or Siemens Low-voltage apparatus. In accordance with international standards, reliable safety, long life,good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. Light screen protection or Laser protection are optional.
