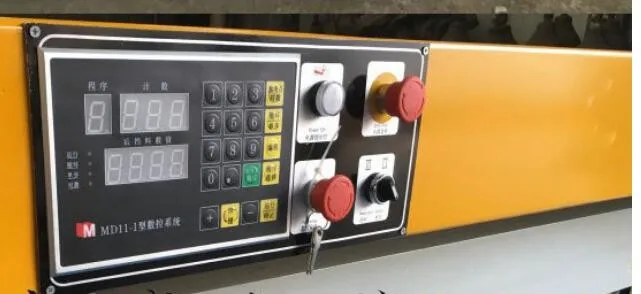

With simple MD 11 Control system which can account and control back gauge
1) This machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced. 2) The machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing 3) The machine base is steel- welding , the structure is compact, good rigidity. 4) Track of blade movement is precision casting copper,less friction 5) Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth 6) Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface. 7) The machine iuse completely independent closed gear box transmission system, move directly connection with main axil, compact structure, gear have good lubrication, low noise and long life. 8) The machine equipped with pneumatic clutch device, high friction, long service life, clutch speed is high so that improve the shearing speed.
