YT-32 40Ton four colume hydraulic press machine made by factory

FOB Reference Price:Get Latest Price
US $1,000-6,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AOXUAN
Model Number:
YTD32
Type:
Hydraulic Breakers
Application:
Construction
Certificate:
CE/ISO9001-2008
Product name:
hydraulic press machine
Color:
Green
Usage:
Construction Plant
Normal Pessure:
400 KN
max liquid pressure:
25 kpa
Motor:
5.5kw
Voltage:
220V/380V
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
as customer request
Port
shanghai
Lead Time :
Shipped in 15 days after payment
YT-32 40Ton four colume hydraulic press machine made by factory


Company Information

 work shop


Product Description




The four column hydraulic presscan beoperated with automatic one cycle design; two hand push button design for simple and safe operation. Thefour column hydraulic presscould also realize three-operation mode: adjustment, manual and semi-automatic.

PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds.
All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

Dual control you can select to use:
a) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop;
b) Movable single-hand pedal switch.

Characteristics:
Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products has the black-white control and PLC controls two kinds of electrical control system. The theadjustment, manual and the semiautomatic three operation mode may realize the constant pressure and decide theregulation two sreft ways.

When constant pressure formation, after suppression has gurantees when the rolling and automatic return trip movement. In the worktable is loaded with goes against the installment, besides goes against the product. Still permissible uses in as fluid pressure pad instead stretching workpiece's formation craft, its working pressure and the traveling schedule, may according to the craft need, adjust in the stipulatin scope.



Functions
Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.

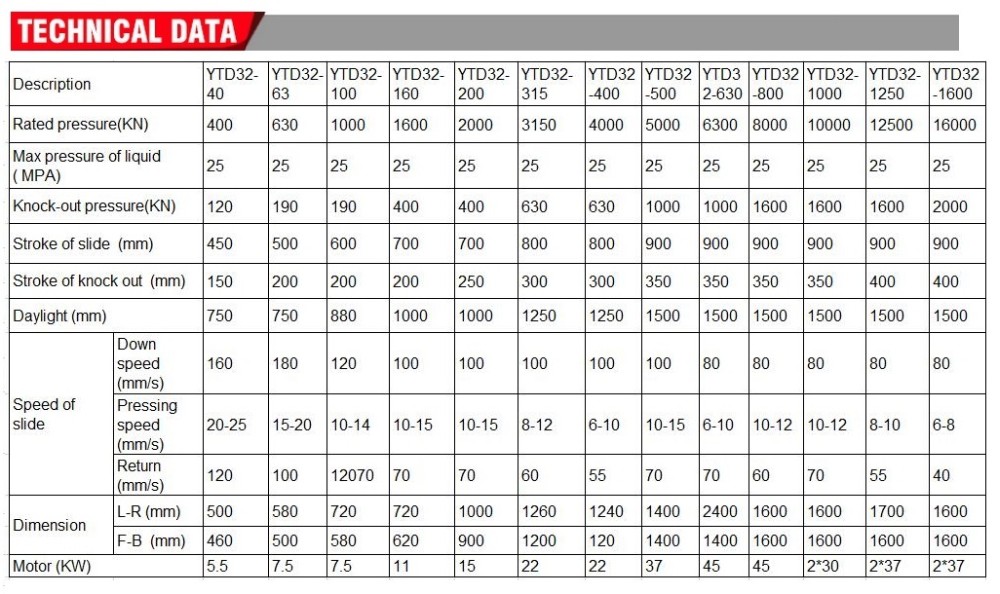

Technical Performance
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.

Usage
1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers.
