Top Quality Hydraulic CNC Bending Machine For Sheet Metal Processing

FOB Reference Price:Get Latest Price
$4,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WC67K
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Nominal Pressure (kN):
300-6000
Length of Working Table (mm):
1600-6000
Dimension:
Customized
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AOXUANZG
Material / Metal Processed:
Stainless Steel, Carbon Steel
Automation:
Automatic
Extra Services:
Bending
Certification:
CE
Year:
2019
After-sales Service Provided:
Video technical support, Online support
Warranty:
1 Year, 1 Year
Machine Type:
Press Brake
Name:
Hydraulic Press Brake
Color:
Customized
Type:
Hydraulic Bending Tools
Product name:
CNC PRESS BRAKE
Usage:
Metal Sheet Bending
Keyword:
press brake
Application:
Construction Projects
Power:
Hydraulic
Weight:
1T-21T
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package
Port
Shanghai Port or any port in China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

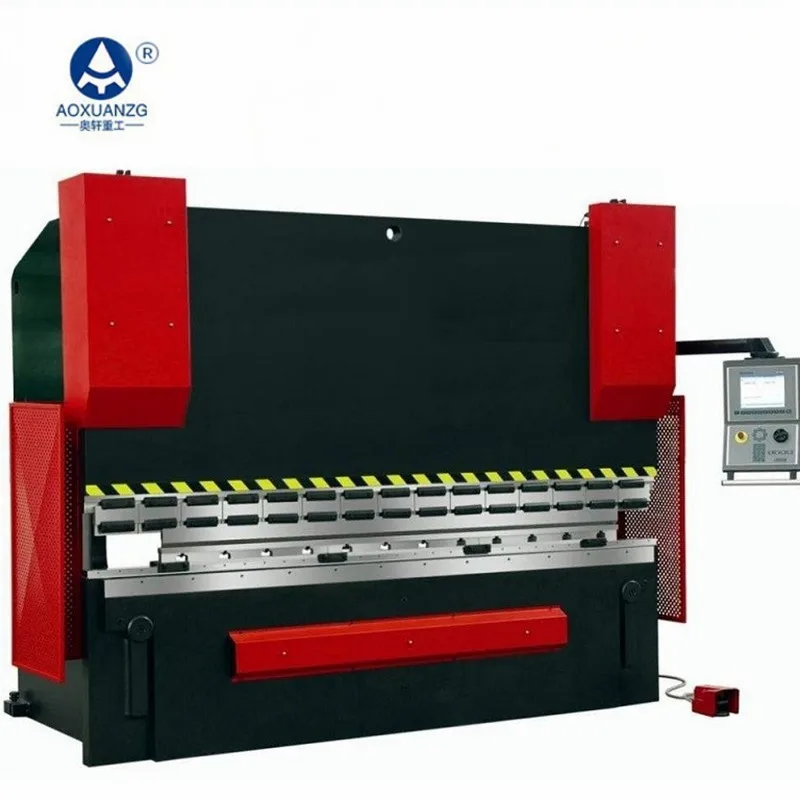

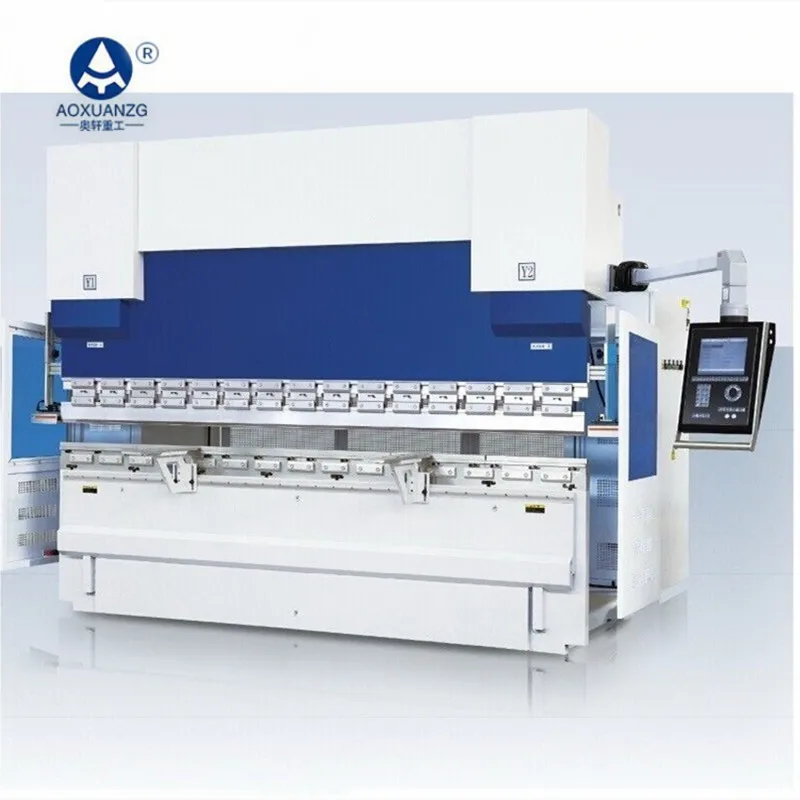

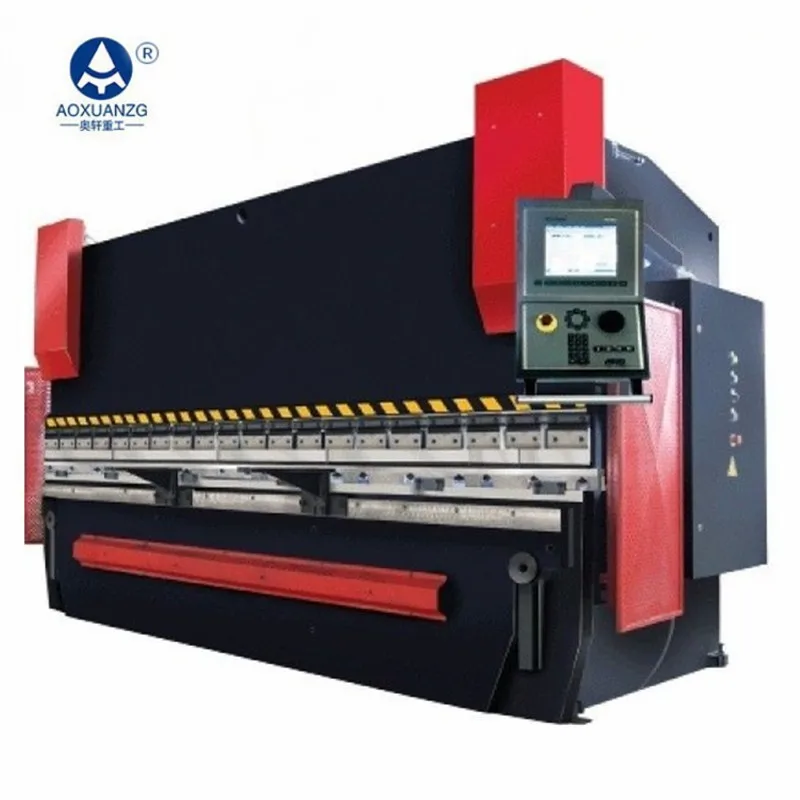

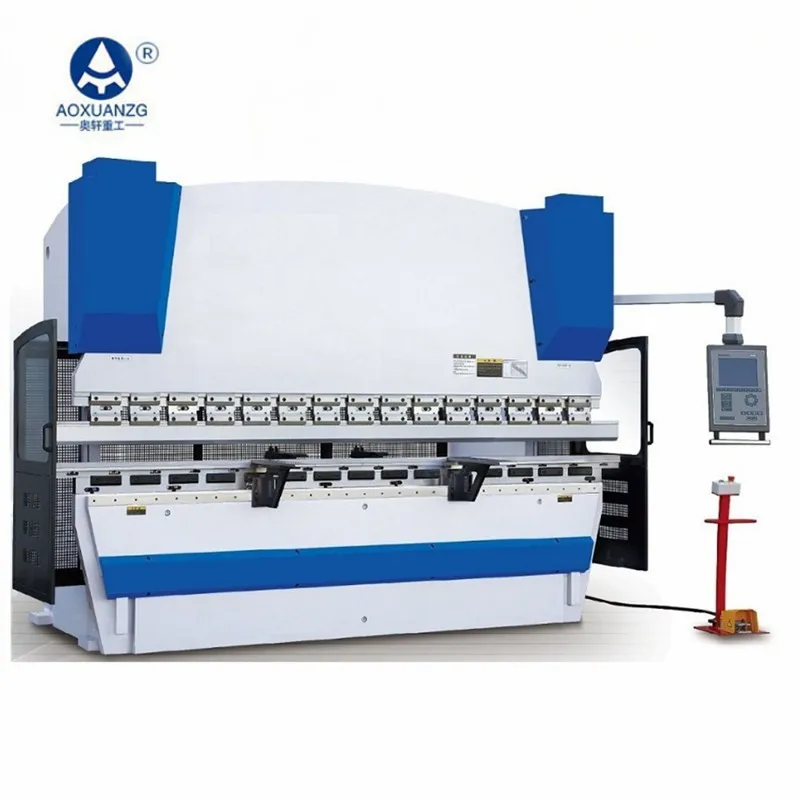

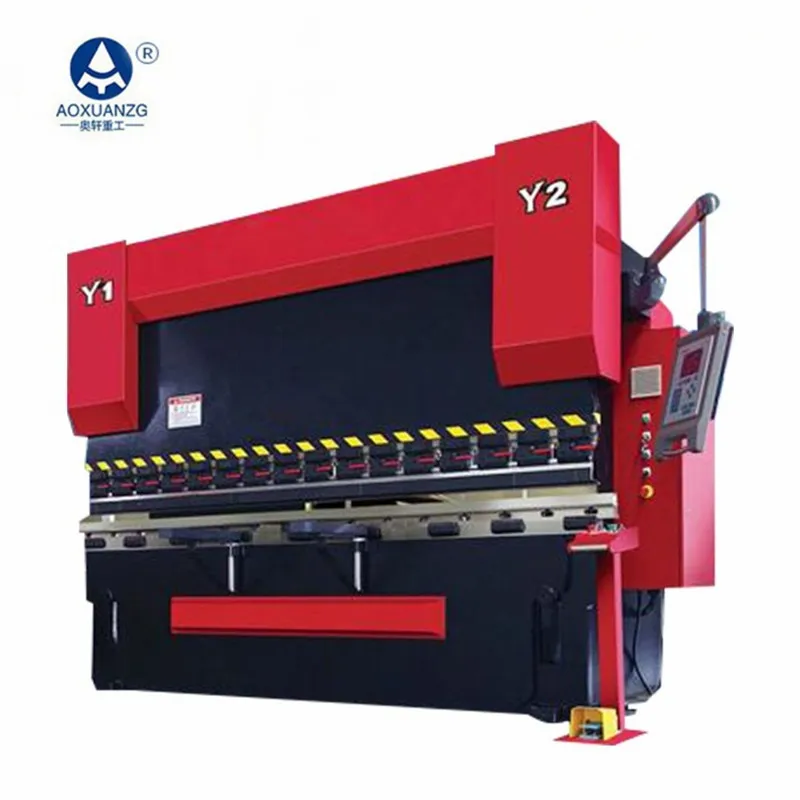

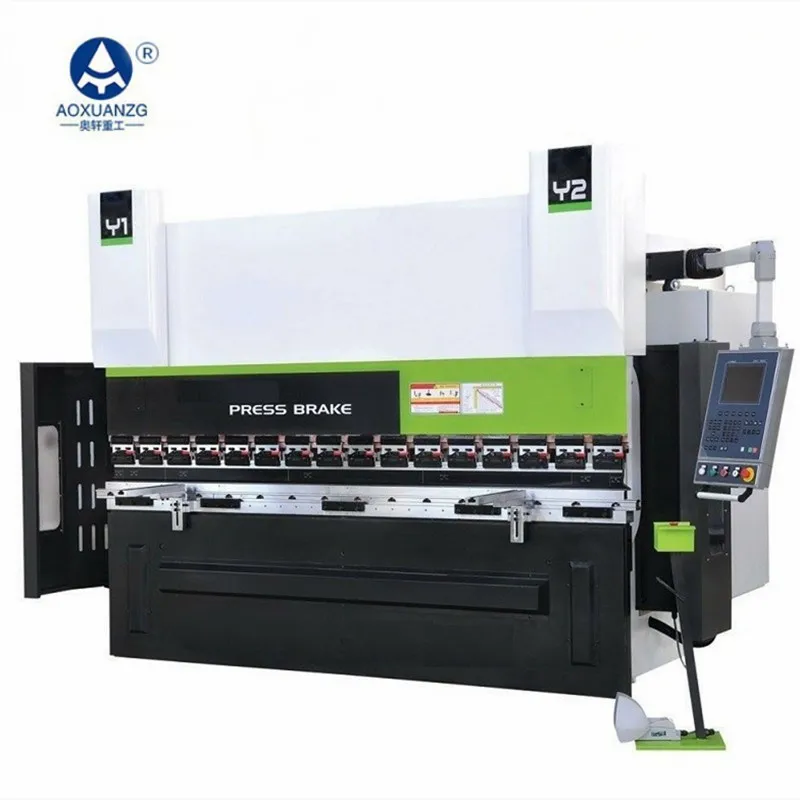

Top Quality Hydraulic CNC Bending Machine For Sheet Metal Processing

Overall Structure

1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity.

2. Mechanical torque system makes sure the synchronization of cylinders.

3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.

4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

Standard Configuration

1. 3 & 4- axis Delem DA52s programming mode CNC control.

2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy

3.High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load

4.CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.

5.Light guards

6.Two micrometric backgauge finger-stops with lateral adjustment

7.Steel mono-block construction

8.Polished chrome plated and ground cylinders

9.Long stroke and large open height dimensions

10.High approach and return speeds for production bending.

11. Euro style quick release top tool holders with intermediaries including wedges for crowning

12. 88 degree sectionalised goose neck top tool

13. 4 way sectionalised multi vee bottom tool

14.Double footswitch control and pendant type control arm.

15.AKAS laser tooling guards

16.Electrically interlocked side guards

17.Electrically interlocked read access door

18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.

19.Side guard is standard meeting CE regulations.

DELEM DA52S Control System of CNC Bending Machine

1.6,4" VGA colour LCD (TFT)

2.Numerical, one page programming

3.Quick, one-page programming

4.UP to 4 axes (Y1, Y2, and 2 auxiliary axes)

5.CNC Crowning control

6.USB, peripheral interfacing

7.Tool/material/product library

8.Servo, frequency inverter and AC control for backgauge axes.
