100T 3200mm High Quality DELEM DA52S Hydraulic CNC Press Brake For Sheet Metal Bending

FOB Reference Price:Get Latest Price
$9,000.00 - $27,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WC67K-100T/3200mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Nominal Pressure (kN):
1000
Length of Working Table (mm):
3200
Dimension:
3290x1740x2400
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AOXUANZG
Material / Metal Processed:
Stainless Steel, Carbon Steel
Automation:
Automatic
Extra Services:
Bending
Certification:
CE
Year:
2019
After-sales Service Provided:
Video technical support, Online support
Warranty:
1 Year
Colour:
Customized
Column spacing:
2660mm
Throat depth:
320mm
Slider stroke:
140mm
Number of strokes:
≥8times/min
Max. opening height:
395mm
Main motor:
7.5kw
Control system:
DELEM DA52S
CNC or not:
CNC
Machine type:
Press brake
Power:
CNC
Weight:
6T
Supply Ability
Supply Ability:
50 Set/Sets per Month

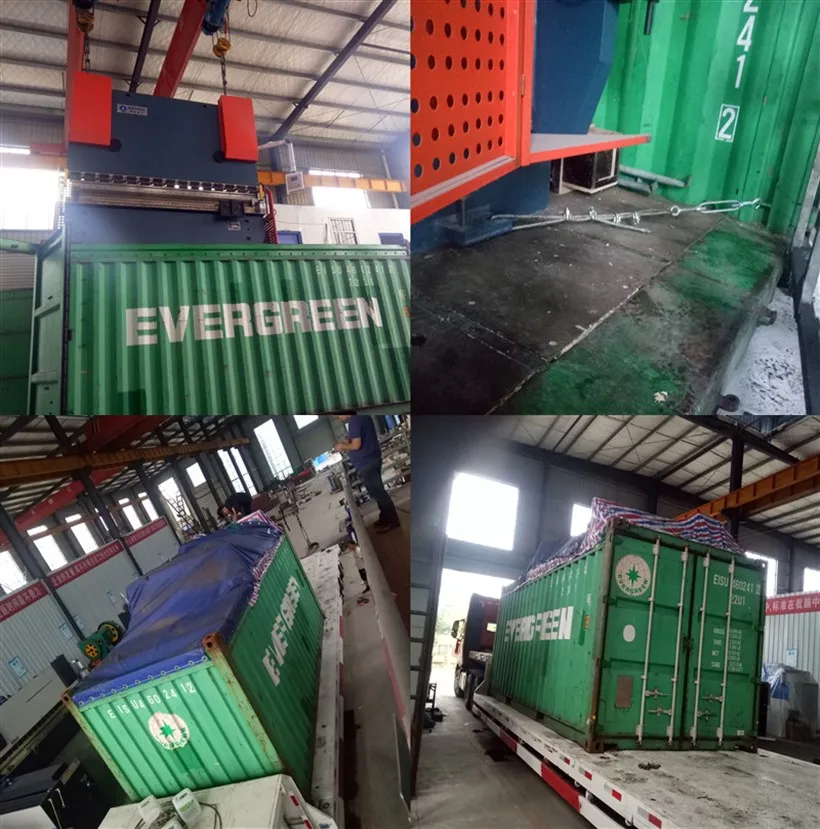

Packaging & Delivery
Packaging Details
Standard export packaging
Port
Shanghai Port or any other port in China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

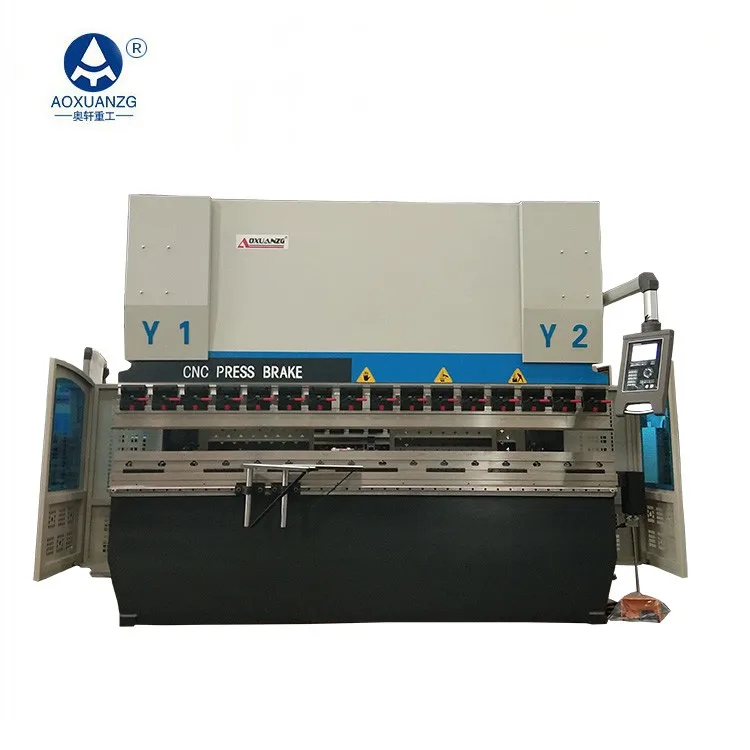

100T 3200mm High Quality DELEM DA52S Hydraulic CNC Press Brake For Sheet Metal Bending

The Whole Structure:

1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity.

2. Mechanical torque system makes sure the synchronization of cylinders.

3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.

4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

Standard Equipment:

1. 3 & 4- axis Delem DA52s programming mode CNC control.
2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy
3.High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load
4.CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.
5.Light guards
6.Two micrometric backgauge finger-stops with lateral adjustment
7.Steel mono-block construction
8.Polished chrome plated and ground cylinders
9.Long stroke and large open height dimensions
10.High approach and return speeds for production bending.
11. Euro style quick release top tool holders with intermediaries including wedges for crowning
12. 88 degree sectionalised goose neck top tool
13. 4 way sectionalised multi vee bottom tool
14.Double footswitch control and pendant type control arm.
15.AKAS laser tooling guards
16.Electrically interlocked side guards

17.Electrically interlocked read access door
18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.
19.Side guard is standard meeting CE regulations.

Delem DA52S CNC Press Brake Control System:

1.6,4" VGA colour LCD (TFT)
2.Numerical, one page programming
3.Quick, one-page programming
4.UP to 4 axes (Y1, Y2, and 2 auxiliary axes)
5.CNC Crowning control
6.USB, peripheral interfacing
7.Tool/material/product library
8.Servo, frequency inverter and AC control for backgauge axes.

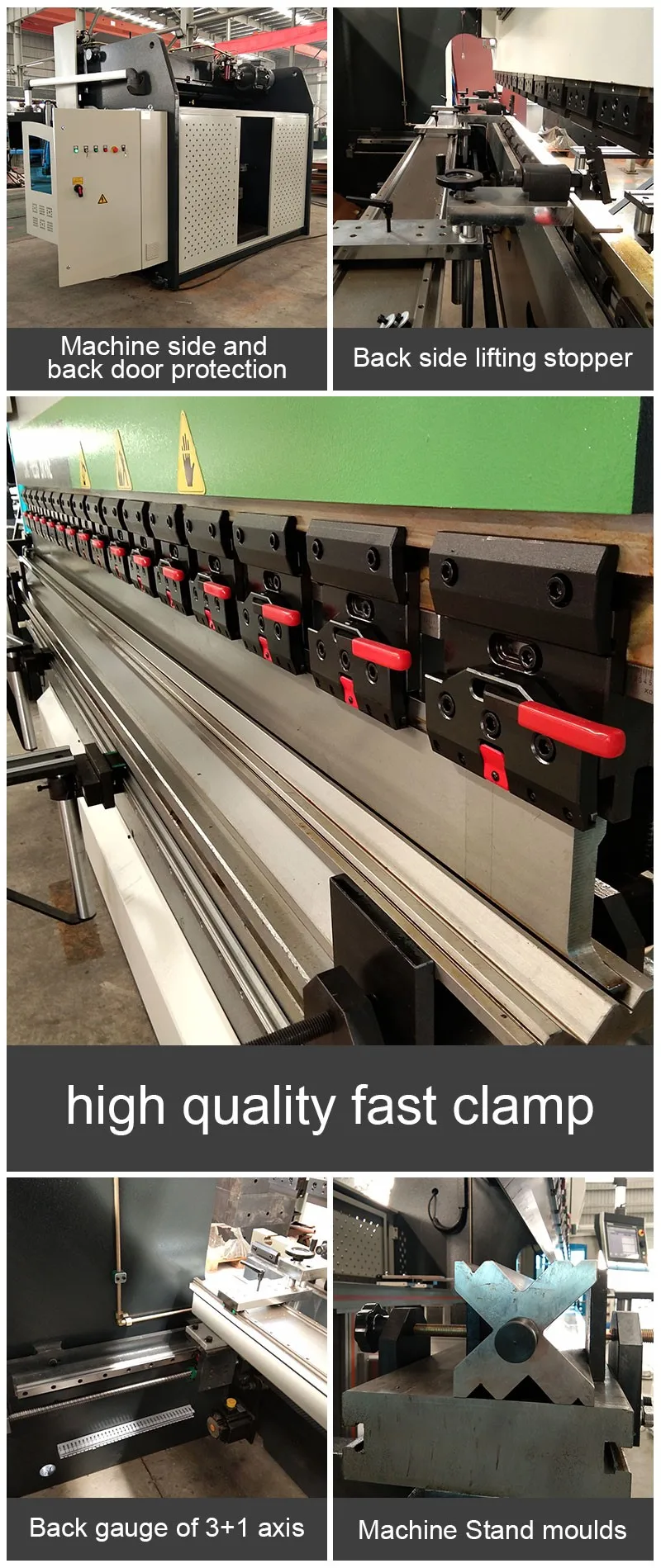

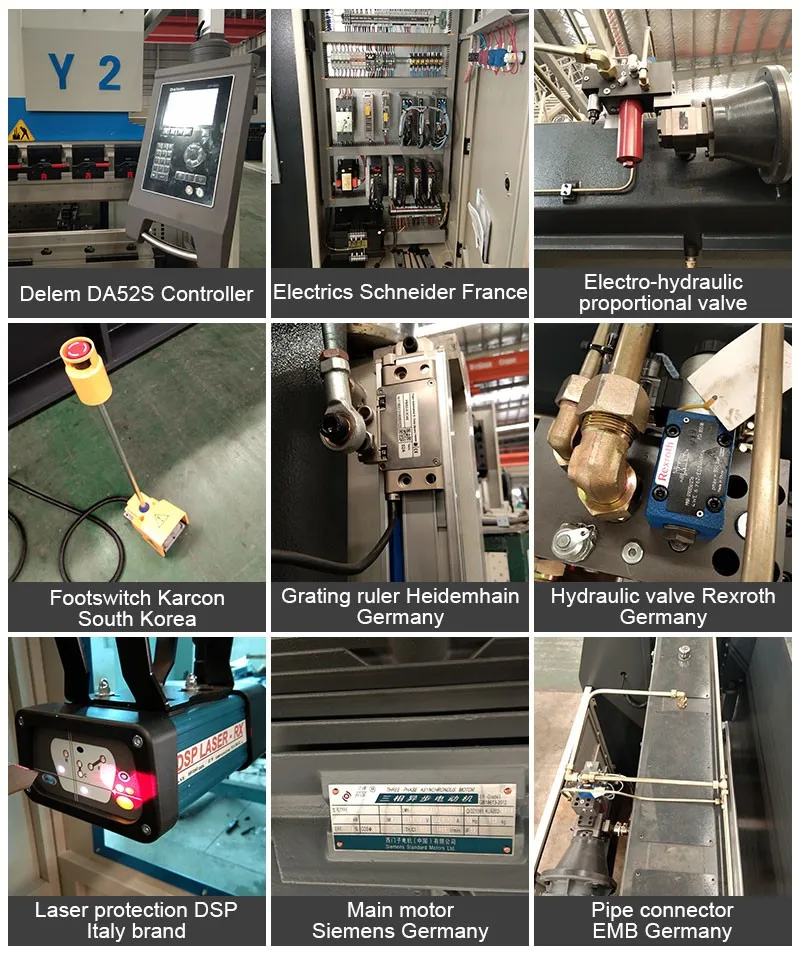

Machine Details
Main Configuration

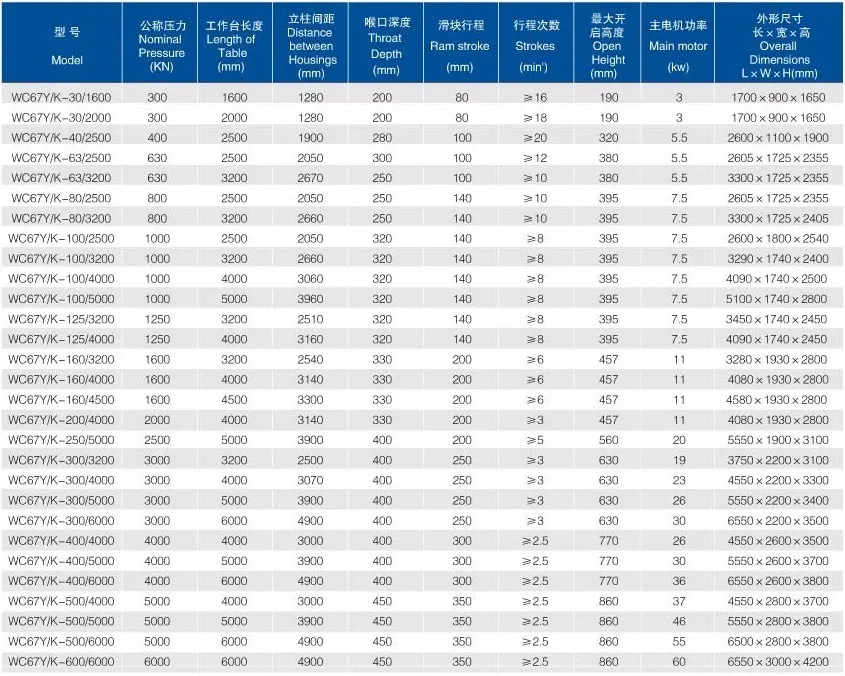

Technical Parameter
